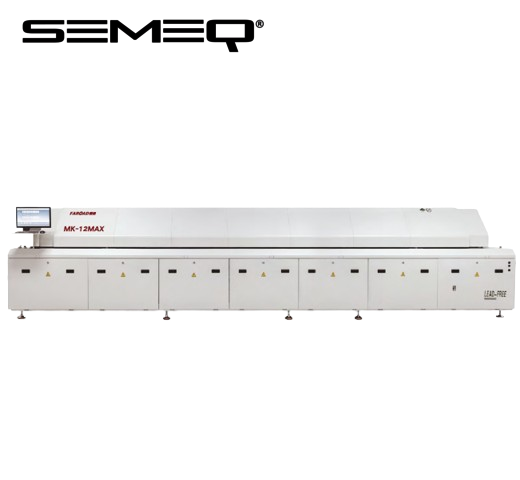

Details

---

Features :


• Heating System: Features efficient heating modules for easy maintenance, along with a built-in air booster and optimized air circulation for improved heating efficiency.
  • Heating Module
    • Features drawer-type heating elements for easy maintenance.
    • Uses 500°C heat-resistant mica-insulated power cables and imported quick-connect terminals for reliable wiring, long service life, and simplified maintenance.
  • Built-in Booster Air Hub and Efficient Air Circulation Structure
    • Each heating zone is equipped with a high-efficiency air booster to improve airflow and heating performance.
    • The precision-designed air outlet plate delivers uniform airflow, ensuring stable and consistent temperature during mass production.

• Advanced Air Extraction System: Prevents oil dripping and leakage.
  • Leading Air Extraction System
    • ​​​​​​​ Features a leading internal air extraction system at the inlet and outlet that prevents oil dripping and leakage, helping solve common challenges in lighting manufacturing.

• Smart Control System: Runs on Windows OS with variable-frequency speed control, an efficient flux recovery system, and an energy-saving, environmentally friendly design.
  • ​​​​​​​ Advanced Control System
    • All MK Series reflow soldering machines feature Emerson's dedicated control system with closed-loop temperature and conveyor control.
    • The PID temperature controller ensures accurate and stable temperature regulation, while variable-frequency control for airflow and conveyor speed provides reliable, safe, and consistent performance.


  • Efficient Flux Recovery System
    • The upgraded flux recovery system reduces flux buildup inside the furnace, minimizing maintenance.
    • Its multi-stage filtration ensures effective flux recovery, while the tool-free, open-access design makes cleaning and maintenance quick and convenient.


  • Thermal Insulation Design
    • The furnace is made with thicker, eco-friendly insulation materials to reduce heat loss.
    • It uses a new insulation design between the inner and outer layers, along with insulated air ducts for waste heat discharge.
    • This keeps the machine's outer surface at no more than 5°C above the surrounding temperature during normal operation.




---

Specifications :

Model	Category	MK-8MAX	MK-10MAX	MK-12MAX
Heating Parameters	Number of Heating Zones	Upper 8/Lower 8	Upper 10/Lower 10	Upper 12/Lower 12
	Length of Heating Zones	3142mm	3670mm	4150mm
	Heating Method	Internal Circulation Heating
	Number of Cooling Zones	3 (cold air internal circulation type), 20m² 3(Channels)
	Length of Cooling Zones	1065mm	1160mm	1440mm
	Cooling Method	Natural Air Cooling
Transport Parameters	Transport Direction	Left Right (L-R) (or: Right Left (R-L))
	Transport Belt Height	900+20mm
	Transport Belt Width	700mm
	Transport Belt Type	Mesh Belt Drive
	Transport Belt Speed	300-2000m/min
	Upper PCB Height	Upper 60mm
	Power Supply	3-phase 5-wire 380V, 50/60Hz
	Starting Power (Segmented Start)	28KW	30KW	33KW
Control Parameters	Normal Operating Power Consumption	8KW	9KW	10KW
	Heating-Up Time	15-20 minutes
	Temperature Control Range	Room Temperature - 350°C
	Temperature Control Method	PID full closed-loop control, SSR drive
	Temperature Control Precision	±1°C
	PCB Tempenture Distribution Deviation	±1°C
	Setting Parameter Storage	Can store multiple setting parameters
	Abnormal Alarım	Temperature abnormality (overtemperature or temperature drop after constant temperature), board drop or jam alarm, etc.
	Signal Beacon	LED tri-color light (Yellow-Heating Up, Green-Constant Temperature; Red-Abnormal)
	Overall Dimensions (mm)	5100*1820*140	6195*1820*1400	6900*1820*1400
Body Parameters	Color	Computer Gray (subject to technical agreement)
	Rectifier Plate Material	Galvanized plate/Aluminum plate/Stainless steel (optional)

​​​​​​​


---
