The new lens mounter is widely used in TV backlight, LED lighting and other fields to ensure the accuracy and stability of the mount, while increasing the production capacity by nearly 50%.

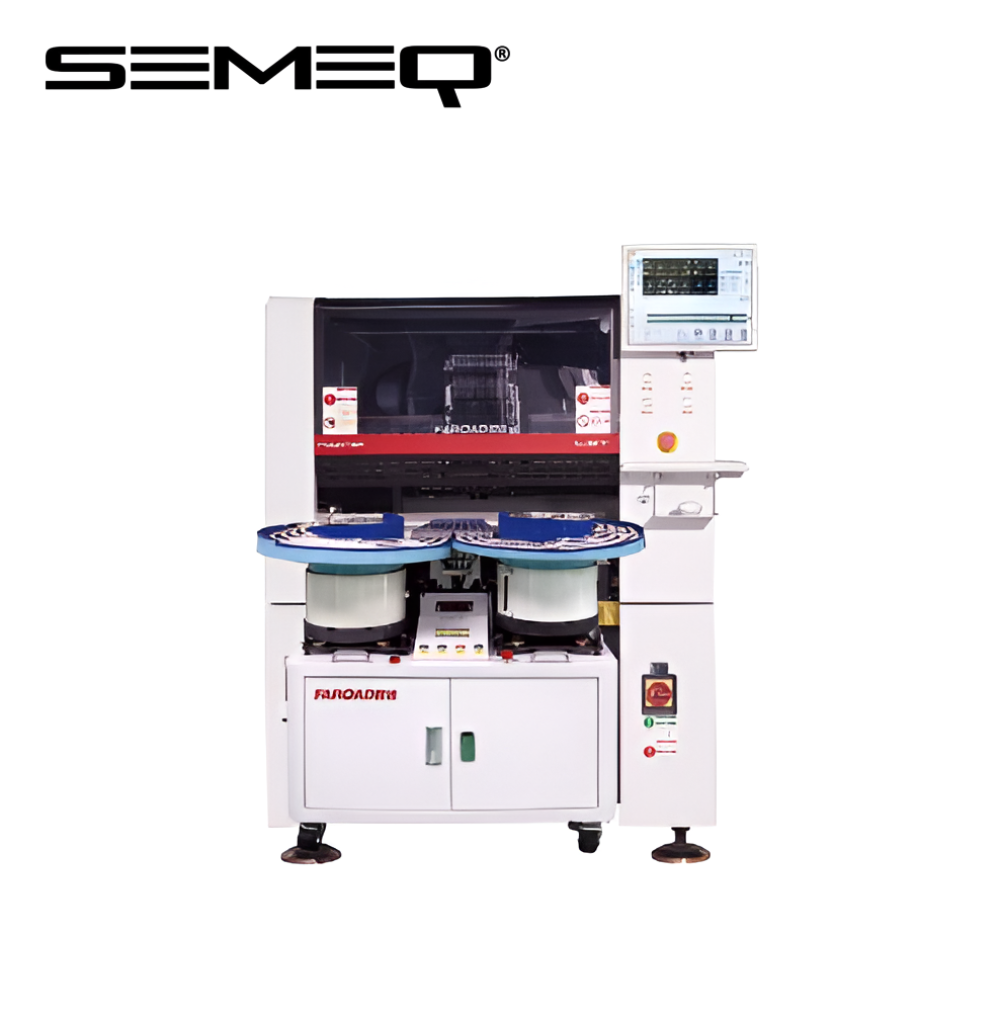

Model :


• CPM-L3T



---

Features :

• High-speed integrated placement head configuration makes the equipment more high-speed and practical
• Multi-function to ensure stable production of equipment
• Intelligent software system


---

Advantages  :


• Flying Camera Recognition System Configuration
  • Optimized flying camera recognition significantly reduces component identification time, improving overall production efficiency.
• Advanced Vibration Feeder
  • A newly designed vibration feeding system minimizes space requirements while maintaining reliable component delivery.
    ​​​​​​​
• Customizable to Customer Requirements
  • Supports tailored configurations, including vibrators, nozzles, and component recognition parameters to meet specific production needs.
    ​​​​​​​
• Automatic Calibration System
  • Features a thermal compensation calibration device to ensure consistent accuracy and stable performance.
    ​​​​​​​
• Optional Accessories
  • Available with optional line-scan cameras or module cameras to accommodate different inspection and placement requirements.

---

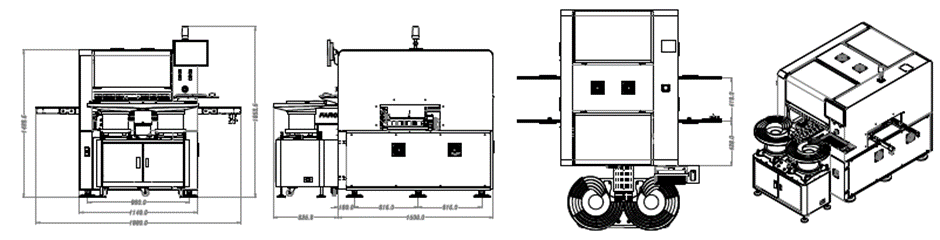

Dimensions :




---

Specifications :


Model	Category	CPM-L3T
Name	Equipment Name	Lens mounter
Head	Mounting head model	0821BL
	Nozzle spacing	21mm
	Number of nozzles	Multifunctional placement head (8 heads)
Equipment size	Length x width x height	1140 × 1500 × 1450mm
Main components	Base	High strength cast iron integrated molding
	X-arm beam	High-strength aluminum stretch forming
Controller	X-axis	Flat linear motor + gratingruler
	Y-axis	Dual motor linear motor +grating ruler
	Z-axis	Closed loop stepping
	R-axis	Closed loop stepping
Mounting ability	Optimal placement speed(IPC-9850)	28000CPH
	Placement accuгасу (СРК)	0,10mm(XYZ),CPK ≥ 1.0 Minimum British 0201.
	Component size	Maximum size: L20 × W20
	Component thickness	24mm
Weight	weight	About 1600KG
Electrical specifications	Gas source	0.5MPa, 150L/min
	Power supply/Power	AC380/420/480V,2.5KW
PCB conveyor system	Transfer board track	Fixed three-stage track (with board waiting function)
	PCB size	Minimum 50 × 50mm, Maximum 600 × 400mm  (Single segment mounting), Maximum 1200 × 400mm  (Two segment mounting)
	PCB Thickness	0.4-9.5mm
	PCB fixing method	Pneumatic lifting platform, upper andlower clamps
Feeding	Quantity of feeders carried	20 Slots (8mm)
MES system integration	MES acquisition	Support TCP/IP communication protocol
	MES Upload	Support QR code / barcode recognition/binding upload MES
Optional accessories	Optional accessories	16 position nozzle exchanger, fixed rear tray, portable front tray, offline feeding cart, rear button panel

​​​​​​​

---
