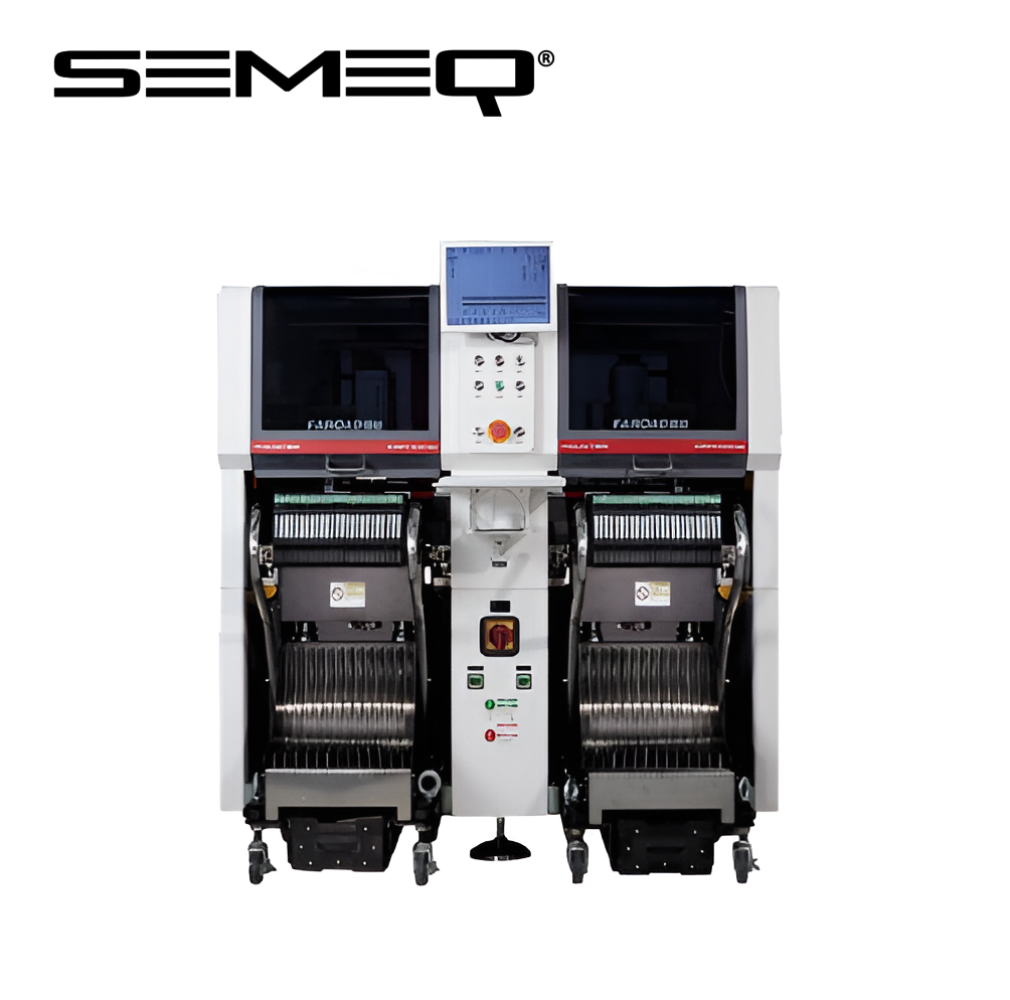

Adopts segmented board feeding combined with high-effifficiency rotary placement heads 80000CPH（Under Optimal Conditions）
Model :
- CPM-HX40
Features :
- Conveyor : Single track or Dual tracks is optional
.png)
- Multiple High-end Configurations Ensure High-precision, High-efficiency, and Stable Production
.png)
- Feeding System Configuration:Enables feeding for production with multiple component package types
.png)
- Rapid Program Switching:one-click trolley configuration enables rapid program switching.
.png)
- Intelligent Functional Configurations: Making Equipment Operation More Convenient, Smarter, and More Flexible
.png)
Advantages :
- Flexible Placement Head Configuration
- Configured with High-speed and Multifunctional Placement
- Heads Based on Product Characteristics
- Uses Magnetic Levitation Motion Module
- To ensure High-speed and Stable Placement Capability,
- Achieving High-speed and High-precision Placement Results
- Automatic Correction System
- With Thermal Compensation Correction Device
- Supports Dock Cart Configuration
- Enabling one-click material changeover to deliver higher production efficiency and greater convenience
- Support s MES System
- Enabling Intelligent Management and Improving Enterprise Manufacturing Execution
- Capability Through MES System for Equipment Production
Dimension :
.png)
Specifications :
| Model Name | Category | CPM-HX40 | |
| Specifications | Placement Head Module | Single Arm | |
| Track Module | Single Track | ||
| Number of Nozzles | High-speed Placement Head (20 Heads) | ||
| Air Source | 0.5MPa, 300L/min | ||
| Power Supply/Power Consumption | AC380/420/480V, 4KW | ||
| Dimensions | L × W × H | 1380 × 1780 × 1450mm 1380 × 1980 × 1450mm (Incliude dock cart) |
|
| Weight | Weight | Approx. 1800 KG | |
| Target Substrate | PCB Size | Single Track: Minimum 50 × 50mm, Maximum 320 × 580mm | |
| PCB Thickness | 0.5-9.0mm | ||
| PCB Fixing Method | Pneumatic Lifting Platform, Upper and Lower Clamps | ||
| Placement Function | Optimal Placement Speed | 80000CPH | |
| Placement Accuracy (CPK) | ±0.03mm(XYZ), CPK ≥ 1.0 | ||
| Supported Component Range | Flying Camera: Minimum Imperial 0.4mm × 0.2mm, Maximum L6 × W5 × H3mm | ||
| Vision System | MARK Camera Field of View | L10mm × w10mm | |
| MARK Camera Type | Area Array 500W | ||
| Component Camera Type | Flying Camera | ||
| Fixed Camera | |||
| Feeding System | Exchange station of Feeder | Optional | |
| Dock Cart | Optional | ||
| Feeders | Electric Feeder | ||
| Number of Feeders | 50 Slots (8mm) | ||
| Tape Feeders | Tape:8/12/16/24/32/44/56mm | ||
| Tube Feeders | 4-20mm x 3 Tubes, 30-40mm x 2 Tubes, 40-50mm x 1 Tube per tube feeder | ||
| Tray Feeder | Optional | ||
| Control Section | X axis | High-precision Linear Motor + Encoder | |
| Y axis | Dual-drive Linear Motor + Encoder, Full Closed-loop Control | ||
| Z axis | High-precision Linear Motor | ||
| R axis | High-precision Servo Motor | ||
| MES System Integration | MES Data Collection | Supports TCP/IP Communication Protocol | |
| MES Upload | Supports QR Code/Barcode Recognition and Binding for MES Upload | ||
