Details

---

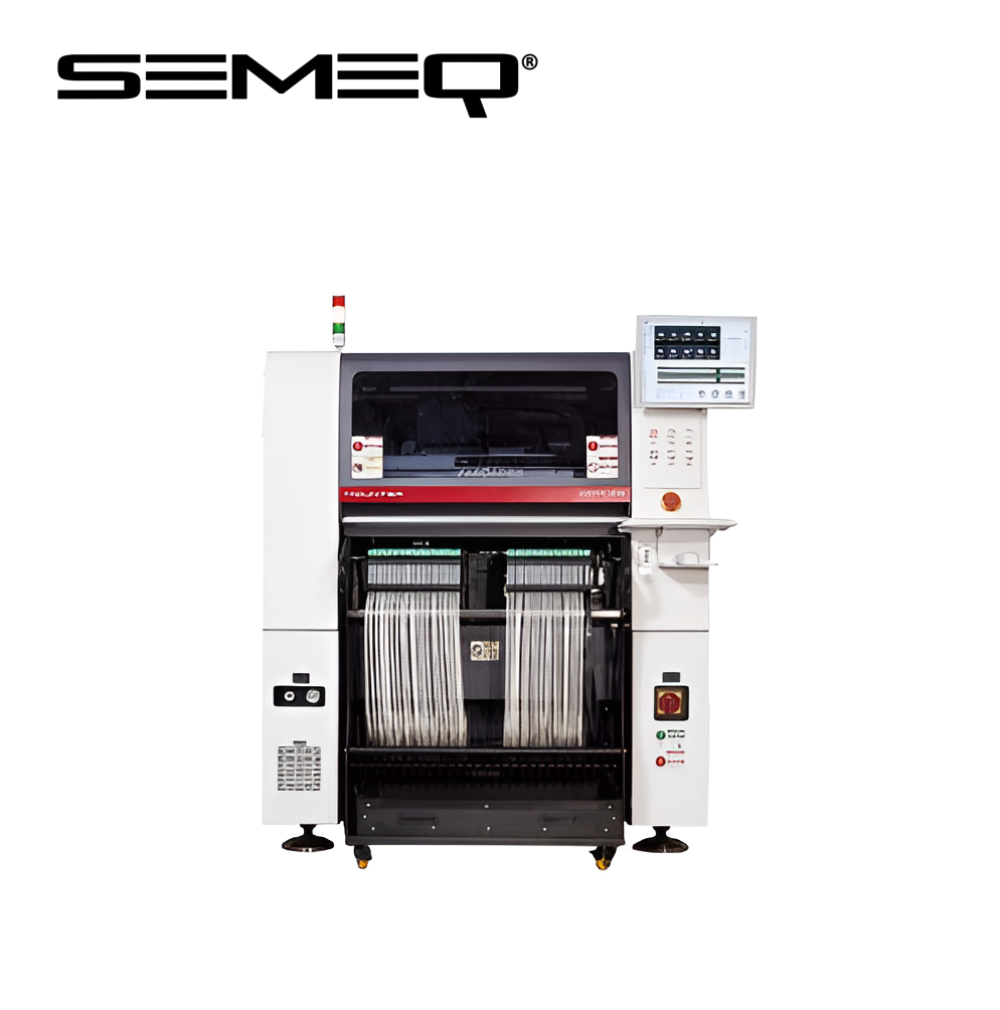

Dual-arm combined mounting system can achieve a maximum mounting speed of 84,000 CPH (under optimal conditions).


Model :


• CPM-S5



---

Features :


• Dual-track configuration for high production efficiency




• Multiple high-end configurations ensure high-precision, high-efficiency, and stable production




• Feeding devices and corresponding components: supports production with multiple material packaging feeders




• Intelligent functional configurations: making equipment operation more convenient, smarter, and more flexible





---

Advantages :

• Optimized balanced production line achieves high efficiency and high-quality production.
• The entire production line equipment can be intelligently managed through the MES system.
• Offline programming software VConnector: By using offline programming software to intelligently optimize the optimal placement time, the efficiency of the entire production line can be improved.
• Customers can flexibly choose the configuration scheme of the mounting production line



---

Dimension :




---

Specifications :


Model Name	Category	CPM-S5
Specifications	Placement Head Module	Dual arms
	Track Module	Single/double track
	Number of Nozzles	High-speed Placement Head (10+10Heads)	Multifunctional Placement Head (6+6Heads)
	Air Source	0.5MPa, 300L/min
	Power Supply/Power Consumption	AC380/420/480V, 5KW
Dimensions	L × W × H	1380 × 2326 × 1550mm
Weight	Weight	Approx 2560KG (including trolley)
Target Substrate	PCB Size	Single Track: Minimum 50 × 50mm, Maximum 510 × 550mm Dual track: Minimum 50 × 50mm, Maximum 51 × 300mm (Can be modified to mount 1200mm)
	PCB Thickness	0.5-9.0mm
	PCB Fixing Method	Pneumatic Lifting Platform, Upper and Lower Clamps
Placement Function	Optimal Placement Speed	84000 CPH	38000 CPH
	Placement Accuracy (CPK)	±0,035mm (XYZ), CPK ≥ 1.0	±0,03mm(XYZ), CPK ≥ 1.0
	Supported Component Range	Flying Camera: Minimum Imperial 0201, Maximum L12 × W1 2 × H6.5mm	-
		Fixed Camera: Minimum Imperial 0201, Maximum L40 × W40 × H13mm	Fixed Camera: Minimum Imperial 0201, Maximum L40 × W40 × H25mm
Vision System	MARK Camera Field of View	L20mm × w20mm
	MARK Camera Type	Area Array 500W
	Component Camera Type	Flying Camera	-
		Fixed Camera
Feeding System	Feeders	Electric Feeder
	Number of Feeders	100 Slots (8mm)
	Tape Feeders	Tape:8/12/16/24/32/44/56mm	Tape:8/12/16/24/32/44/56/72/88mm
	Tube Feeders	Number of Slots for a Single Vibration Feeder:
		4-20mm x 3 Tubes, 30-40mm x 2 Tubes, 40-50mm x 1 Tube
	TRAY(Optional)	-	TRAY Cabinet Capacity: L323 × W136 × H7.5mm, 20 Trays
Control Section	X axis	High-precision Linear Motor + Encoder
	Y axis	Dual-drive Linear Motor + Encoder, Full Closed-loop Control
	Z axis	High-precision Linear Motor
	R axis	High-precision Servo Motor
MES System Integration	MES Data Collection	Supports TCP/IP Communication Protocol
	MES Upload	Supports QR Code/Barcode Recognition and Binding for MES Upload

---
