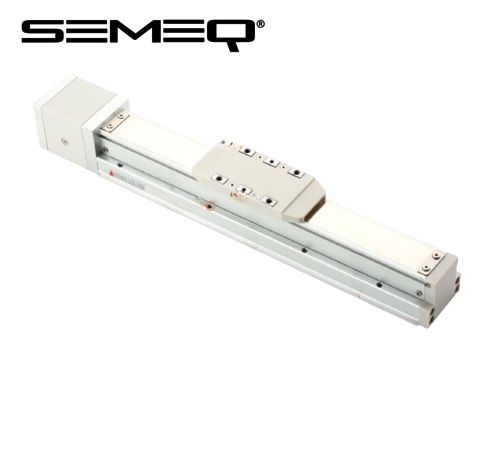

Details

---

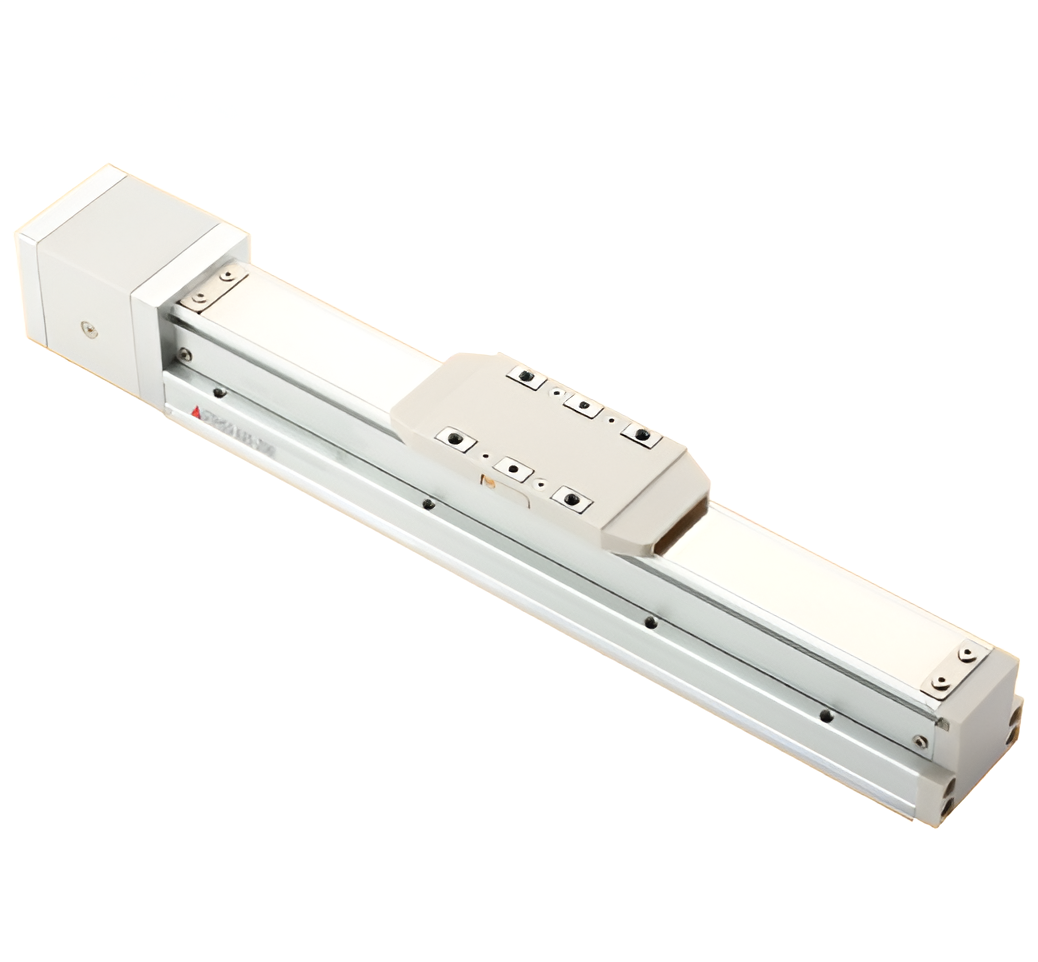

Model :


• GTHS5

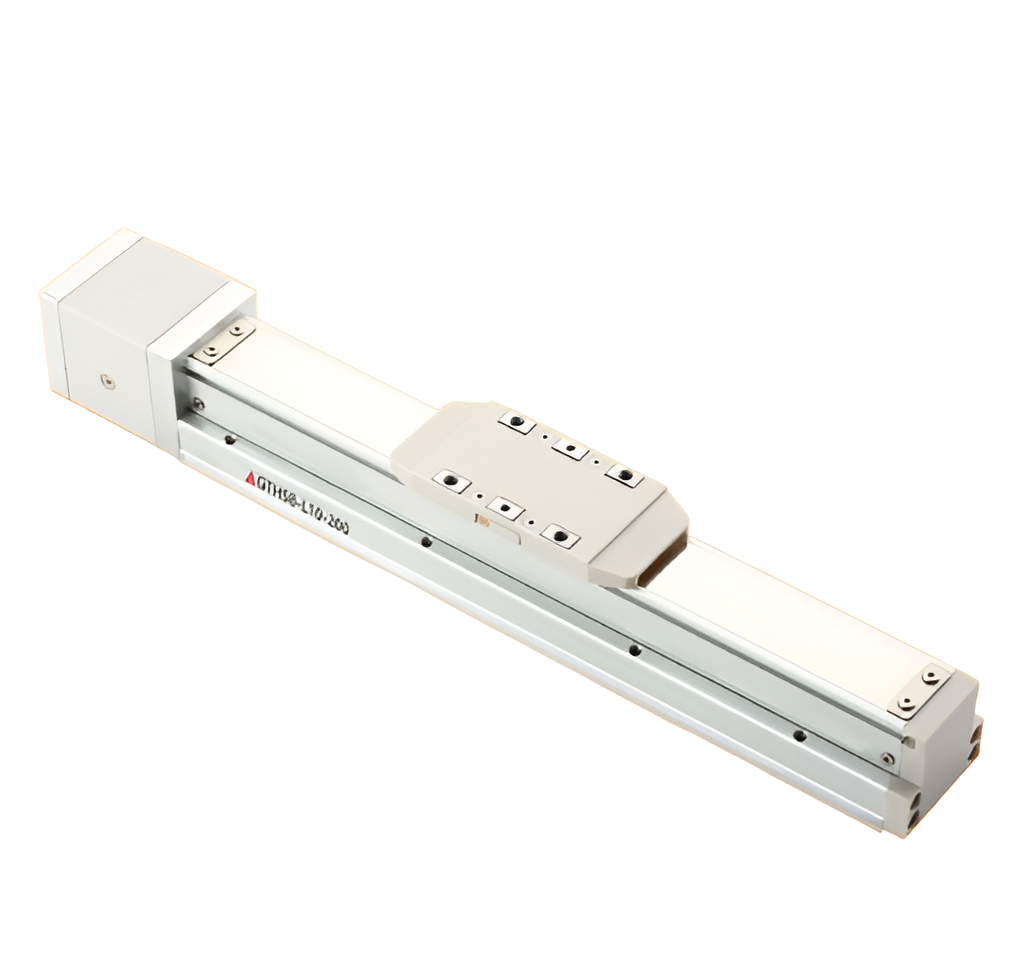

• GTHS8

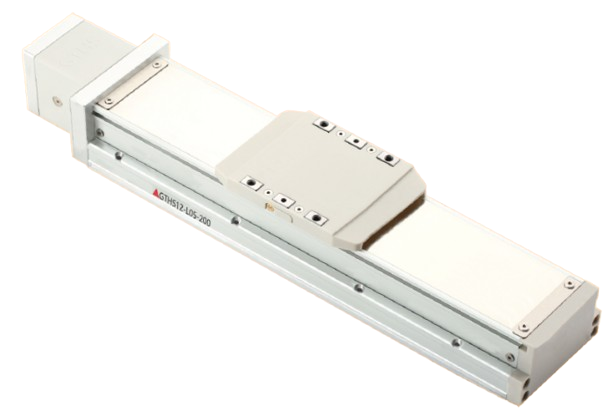

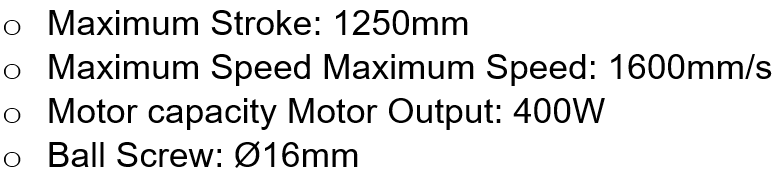

• GTHS12

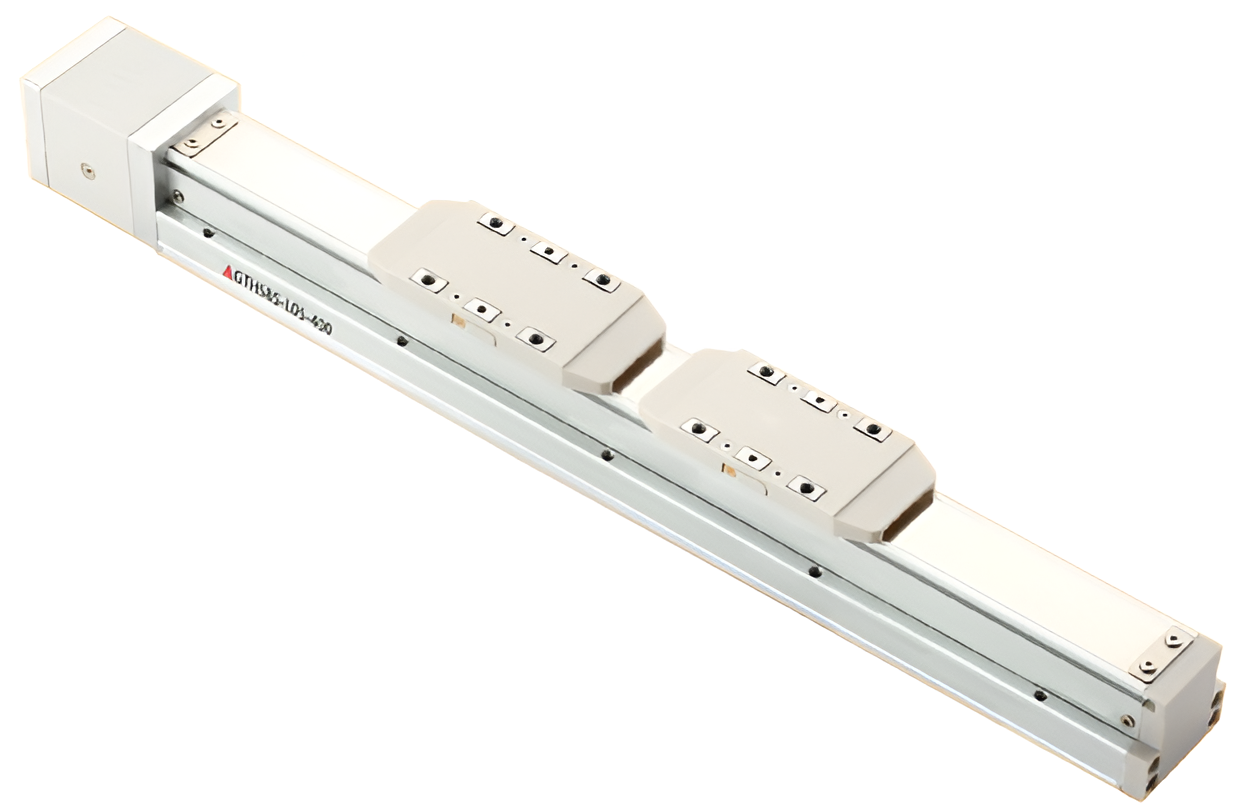

• GTHS5S



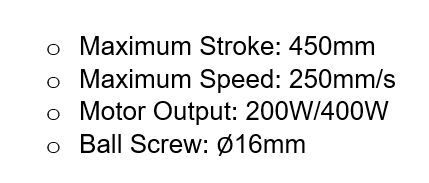

• GTHS8S






---

Structure Diagram :



Self lubrication structure :





---

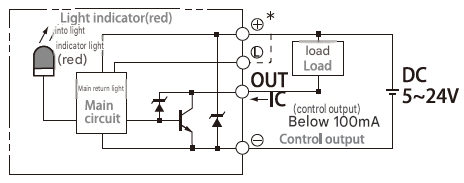

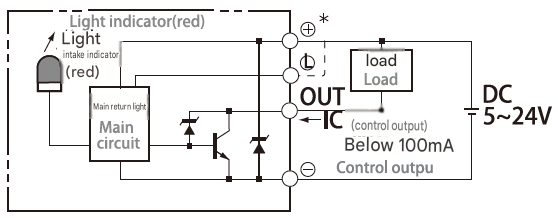

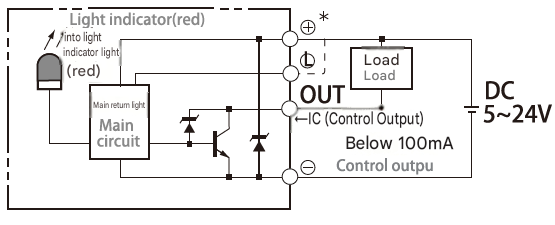

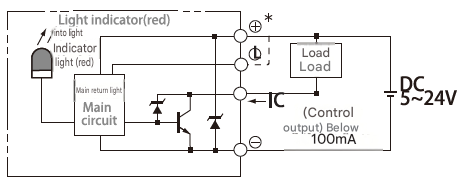

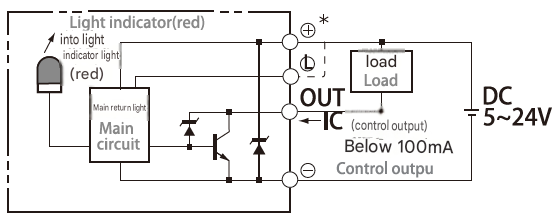

Sensor Layout :


• GTHS5



• GTHS8



• GTHS12



• GTHS5S



• GTHS8S



---

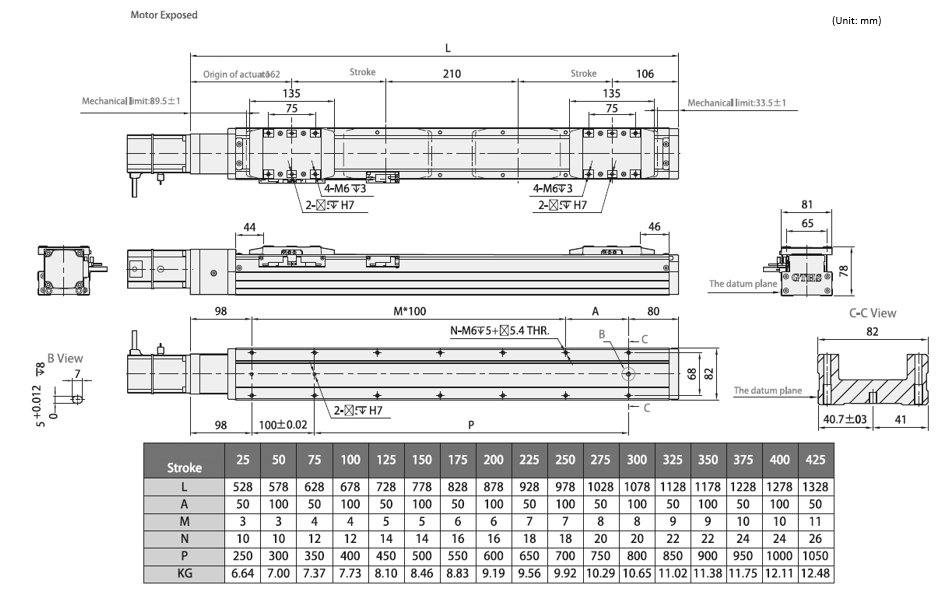

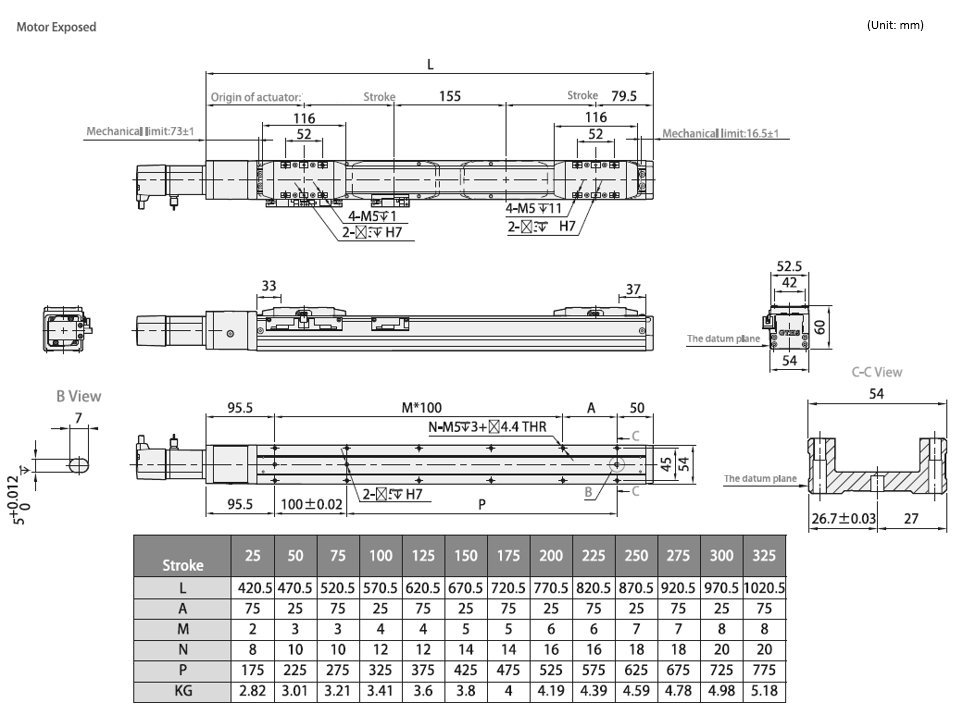

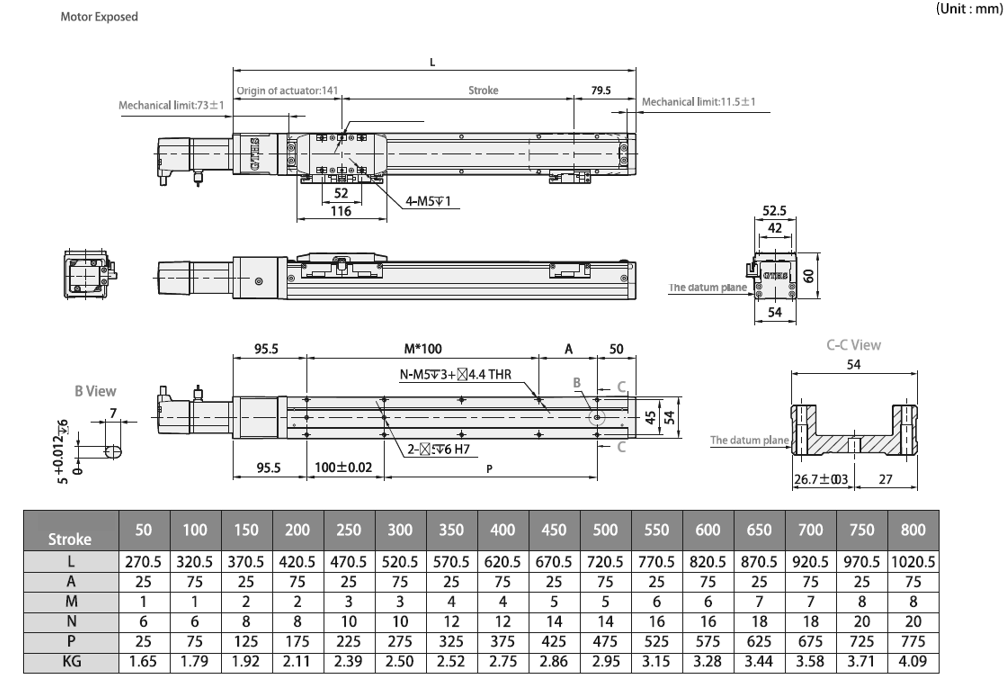

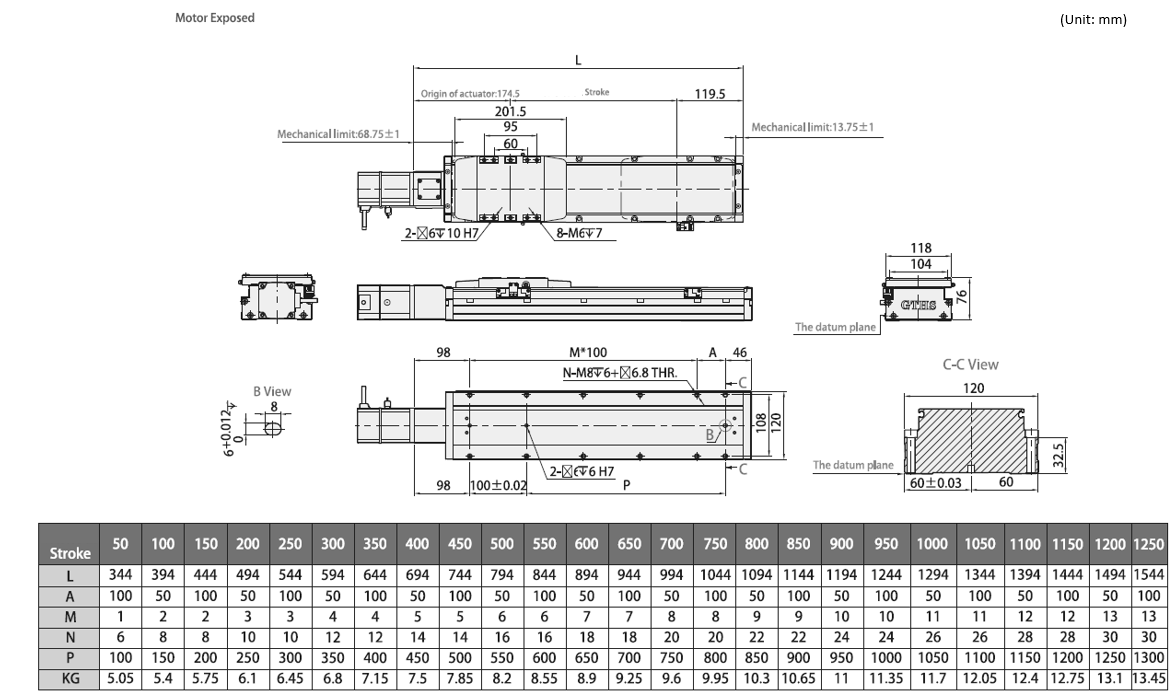

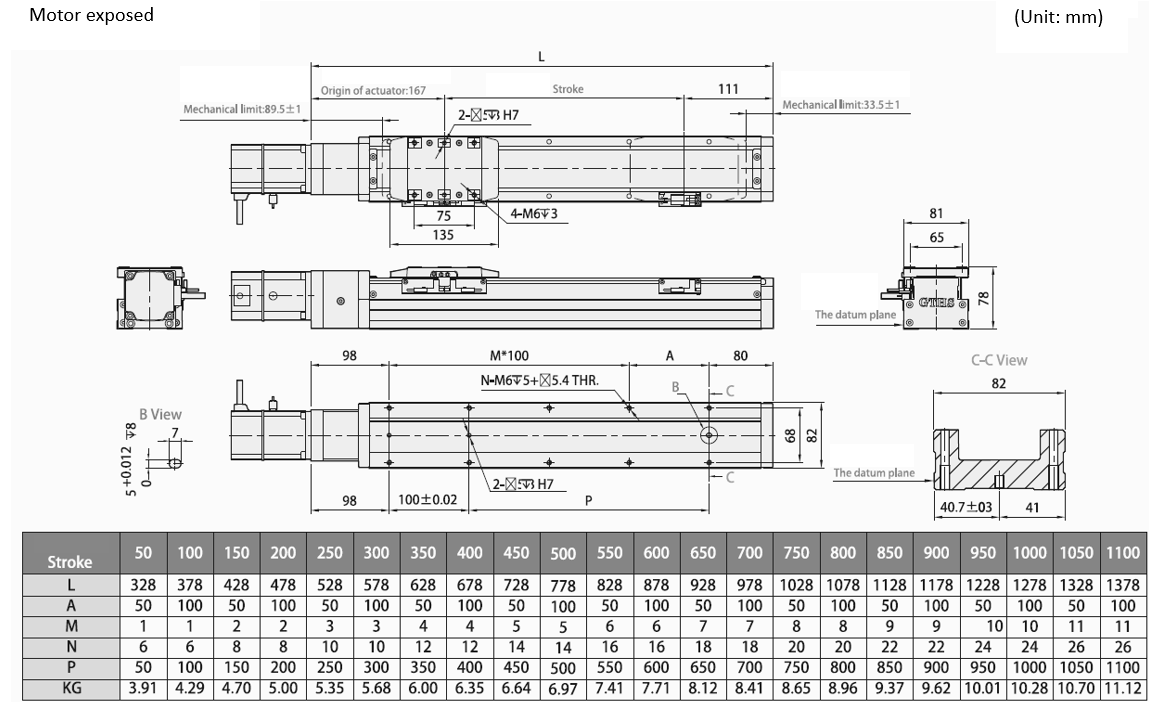

Dimension :


• GTHS5



• GTHS8



• GTHS12

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• GTHS5S



• GTHS8S



---

Specifications :


Environment	Transmission mode	Specification	Motor output (W)	Body width (mm)	Position repeatability (mm)	Ball Screw specifications (C7 grade)		Maximum Payload (kg)		Maximum Speed ​​* 1 (mm/s)
						Outer Diameter (mm)	Lead (mm)	Horizontal use	Vertical use
General Environment Standard	Ball screw	GTHS5	100W	54	±0.01	12	2	30	10	100
							5	30	10	250
							10	15	5	500
							20	10	2.5	1000
		GTHS8	200W 400W	82	±0.01	16	5	50	15	250
							10	30	8	500
							20	18	3	1000
		GTHS12	400W	120	±0.01	16	5	110	33	250
							10	88	22	500
							20	40	10	1000
							32	30	8	1600



Usage Environment	Transmission mode	Official Specification	Motor capacity	Width (mm)	Position repeatability (mm)	Screw specifications (C7 grade)		Maximum Payload (kg)		Maximum speed *1 (mm/s)
						Outer Diameter (mm)	Lead (mm)	Horizontal	Vertical
Standard General Environment	Ball screw	GTHS5S	100W	54	±0.01	12	2	30	10	100
		GTHS8S	200W	82	±0.01	16	5	50	15	250
			400W



• GTHS5



Specification	Position repeatability (mm)		±0.01
	Ball screw lead (mm)		2	5	10	20
	Maximum Speed ​​(mm/s※1)		100	250	500	1000
	Maximum Payload	Horizontal (kg)	30	30	15	10
		Vertical (kg)	10	10	5	2.5
	Rated Thrust (N)		854	341	170	85
	Standard stroke / pitch (mm) 2		50-800mm/50 spacing 50mm Pitch
Parts	AC Servo Motor Output (W)		100W
	Ball screw outer diameter Ø (mm)		C7 Ø 12
	Coupling (mm)		7 × 8
	Home Sensor	Outside	EE-SX674(NPN)

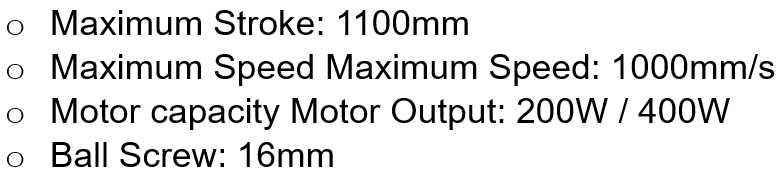

• GTHS8

Specification	Model		GTHS8-200			GTHS8-400
	Position repeatability (mm)		±0.01
	Ball screw lead (mm)		5	10	20	5	10	20
	Maximum Speed ​​(mm/s ※1)		250	500	1000	250	500	1000
	Maximum Payload	Horizontal (kg)	50	30	18	50	30	18
		Vertical (kg)	15	8	3	15	8	3
	Rated Thrust (N)		854	341	170	1388	694	347
	Standard stroke / pitch (mm) 2		50-1100mm/50 50mm pitch
Parts	AC Servo Motor Output (W)		200			400
	Ball screw outer diameter Ø (mm)		C7 Ø 16
	Coupling (mm)		10x14/11 (Note 1)
	Home Sensor	Outside	EE-SX674(NPN)



• GTHS12

Specification	Position repeatability (mm)		±0.01
	Ball screw lead (mm)		5	10	20	32
	Maximum Speed ​​(mm/s※1)		250	500	1000	1600
	Maximum Payload	Horizontal (kg)	110	88	40	30
		Vertical (kg)	33	22	10	8
	Rated Thrust (N)		1388	694	347	218
	Standard stroke / pitch (mm) 2		50-1250mm/50 50mm pitch
Parts	AC Servo Motor Output (W)		400W
	Ball screw outer diameter Ø (mm)		C7 Ø 16
	Coupling (mm)		10 x 14 / 11 (Note 1)
	Home Sensor	Outside	EE-SX674(NPN)



• GTHS5S

Specification	Position repeatability (mm)		±0.01
	Ball screw lead (mm)		2
	Maximum Speed ​​(mm/s ※1)		100
	Maximum Payload	Horizontal (kg)	30 (Dual carriage)
		Vertical (kg)	10 (Dual carriage)
	Rated Thrust (N)		854
	Standard stroke / pitch (mm) 2		25-325mm/25 50mm pitch
Parts	AC Servo Motor Output (W)		100W
	Ball screw outer diameter Ø (mm)		C7 Ø 12
	Coupling (mm)		7 × 8
	Home Sensor	Outside	EE-SX674(NPN)



• GTHS8S

Specification	Model		GTHS8S-200	GTHS8S-400
	Position repeatability (mm)		±0.01	±0.01
	Ball screw lead (mm)		5	5
	Maximum Speed ​​(mm/s ※1)		250	250
	Maximum Payload	Horizontal (kg)	50 (Dual carriage)	50 (Dual carriage)
		Vertical (kg)	15 (Dual carriage)	15 (Dual carriage)
	Rated Thrust (N)		683	1388
	Standard stroke / pitch (mm) 2		25-450mm/25 25mm pitch	25-450mm/25 25mm pitch
Parts	AC Servo Motor Output (W)		200	400
	Ball screw outer diameter Ø (mm)		C7 Ø 16	C7 Ø 20
	Coupling (mm)		10x14/11 (Note 1)	10x14/11 (Note 1)
	Home Sensor	Outside	EE-SX674(NPN)	EE-SX674(NPN)



---
