Details

---

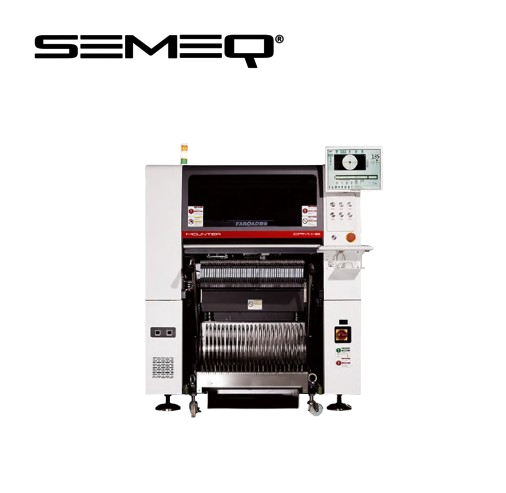

Model :

• CPM-H6

---

Features :
​​​​

• Dual-Track Configuration for High Production Efficiency
  • The dual-track conveyor system allows for independent and alternate placement processes.
    • Independent placement: Two tracks canindependently produce different substrates without interference, achieving higher efficiency.
    • Alternate placement: The front and rear placement heads can simultaneously operate on a single substrate without interfering with each other.


• Multiple High-end Configurations Ensure High-precision, High-efficiency, and Stable Production

• Feeding Devices and Corresponding Components: Supports Production with Multiple Material Packaging Feeders


• Intelligent Functional Configurations: Making Equipment Operation More Convenient, Smarter, and More Flexible




---

Advantages :


• Optimal balanced line design ensures high-efficiency and high-quality production.
• The entire line equipment can integrate with MES systems for smart factory management.
• Offline programming software VConnector: Optimizes placement times intelligently through offline programming, enhancing the efficiency of the entire line.
• Customers can flexibly choose placement production line configurations.



---

Dimension :






---

Specifications :

Model	Category	CPM-H6
Specifications	Placement Head Module	Dual arms	Dual arms
	Track Module	Single/double track	Single/double track
	Number of Nozzles	High speed mounting head (10+10 heads)	Multi functional mounting head (6+6 heads)
Equipment size	L×W×H	L1380 X W2060 X H1450mm L1380 X W2280 X H1450mm (Including Feeder cart)	L1380 X W2060 X H1450mm L1380 X W2280 X H1450mm (Including Feeder cart)
Weight	Weight	Approx 2760KG(Including Feeder cart)	Approx 2760KG(Including Feeder cart)
Electrical Specifications	Air Supply	0.5MPa，300L/min	0.5MPa，300L/min
	Power Supply/Power	AC380/420/480V, 5KW	AC380/420/480V,5KW
Object substrate	PCB size	Single track：Min 50*50mm，Max 510*510mm Dual track：Min 50*50mm，Max 510*280mm (Can be modified and mounted 1200mm)	Single track：Min 50*50mm，Max 510*510mm Dual track：Min 50*50mm，Max 510*280mm (Can be modified and mounted 1200mm)
	PCB Thickness	0.5-9.0mm	0.5-9.0mm
	PCB fixing method	Electric lifting platform, upper and lower clamps	Electric lifting platform, upper and lower clamps
Placement Function	Optimal placement speed	90000CPH	38000CPH
	Placement Accuracy (CPK)	士0,035mm(XYZ),CPK≥1.0	士0,03mm(XYZ), CPK≥1.0
	Supported Component Range	Flying Camera: Minimum Imperial 0201, Maximum L12*W12*H6.5mm	—
		Fixed Camera: Minimum Imperial 0201, MaximumL40*W40*H13mm	Fixed Camera: Minimum Imperial 0201, MaximumL40*W40*H25mm
Vision System	MARK camera range	L10mm*w10mm	L10mm*w10mm
	MARK camera type	Area Array500W	Area Array500W
	Component camera type	Flying Camera	—
		Fixed Camera	Fixed Camera
Incoming/Feeding System	Feeder Cart	Support	Support
	Feeders	Electric Feeder	Electric Feeder
	Number of Feeders	100Slots（8mm ）	100Slots（8mm ）
	Tape Feeders	Tape:8/12/16/24/32/44/56mm	Tape:8/12/16/24/32/44/56/72/88mm
	Tube Feeders	Number of Slots for a Single Vibration Feeder:	Number of Slots for a Single Vibration Feeder:
		4-20mmx3Tubes，30-40mmx2Tubes，40-50mmX1Tube	4-20mmx3Tubes，30-40mmx2Tubes，40-50mmX1Tube
	Tray (Optional)	—	TRAY Cabinet Capacity: L323*W136*H7.5mm, 20 Trays
Control Section	X-axis	High-precision Linear Motor + Encoder
	Y-axis	Dual-drive Linear Motor + Encoder, Full Closed-loop Control
	Z-axis	High-precision Linear Motor
	R-axis	High-precision Servo Motor
MES System Integration	MES acquisition	Supports TCP/IP Communication Protocol
	MES upload	Supports QR Code/Barcode Recognition and Binding for MES Upload



---
