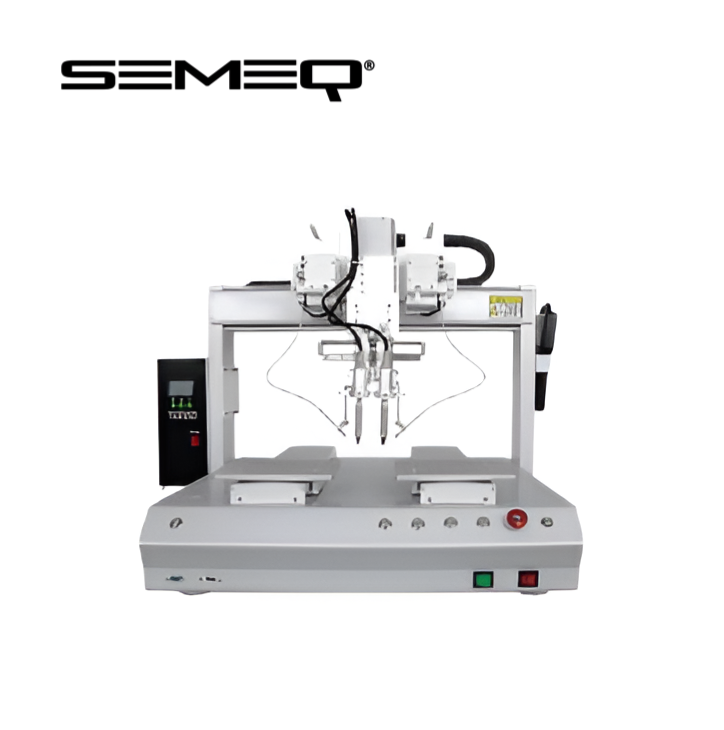

Dual-head, Dual-station Automatic Soldering Machine (TON-HX5331S)
Category: GLUE DISPENSING MACHINE
Specifications
Duel-head Dual-station Automatic Soldering Machine Supplier in Johor
Duel-head Dual-station Automatic Soldering Machine Supplier in Kuala Lumpur
Duel-head Dual-station Automatic Soldering Machine Supplier in Melaka
Duel-head Dual-station Automatic Soldering Machine Supplier in Penang
Duel-head Dual-station Automatic Soldering Machine Supplier Malaysia
Details
Model :
- TON-HX5331S
Technical Parameter :
| Locking efficiency: | 0.7-1.8s/solder joint |
| Locking range: | 250 × 300 × 100 (L × W × H) |
| Control system: | Microcontroller + handheld programmer |
| Guide rail: | HIWIN/Yintai (Taiwan) |
| Transmission method: | Leadshine adhesive application + timing belt (lead screw can be customized) |
| Positioning accuracy: | ± 0.02-0.05mm |
| Traverse speed: | X-axis : 400mm/s, Y-axis: 400mm/s, Z-axis: 200mm/s |
| Axis travel: | X-axis : 500mm, Y-axis: 300mm, Z-axis: 100mm |
| Solder wire diameter: | 0.4-1.5mm |
| Temperature control power: | 150W/200W/300W/600W |
| Soldering temperature : | Room temperature - 550℃ |
| Program capacity: | 999+ |
| Communication port: | USB |
| Dimensions: | 873 × 613 × 878 (L × W × H) |
| Weight: | 85 kg |
| Maximum load: | 5 kg |
| Air supply: | 0.3-0.8 MPa |
| Power supply: | AC220V |
| Rated power: | 400W |
