Details

---

Features :




---

Advantages :


• XYZ repeatability accuracy ±0.02mm
• Supports alarm detection for missed locks, stripped threads, and floating height
• Equipped with intelligent electric screwdrivers, HIOS electric screwdrivers, etc.
• Z-axis can be configured with laser displacement sensor and downward pressure detection sensor
• System PLC motion control + industrial control (processing vision images)
• Vision supports one-click calibration and automatic hole scanning

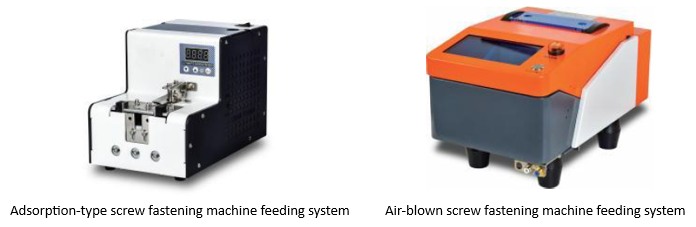

1. Adsorption-Type Screw Fastening Machine
   • Adsorption-type automatic screw fastening machines use a vacuum generator to create a vacuum, which is then used to attract and remove individual screws (or magnetic attraction).
   • The machine then positions the screws on the product's hole, and the electric screwdriver automatically fastens them into the product.
   • Generally, it takes 0.8-2 seconds to fasten one screw per pieces.

2. ​​​​​​​Advantages of Air-blown Screwdriver
   • Faster speed and higher efficiency. Compared to suction-type screwdrivers, air-blown screwdrivers save time by eliminating screw removal.
   • There's always a screw waiting to be tightened at the clamp, making their efficiency far greater than suction-type screwdrivers.
   • Tightening a screw can be as fast as 0.7 seconds.



---
