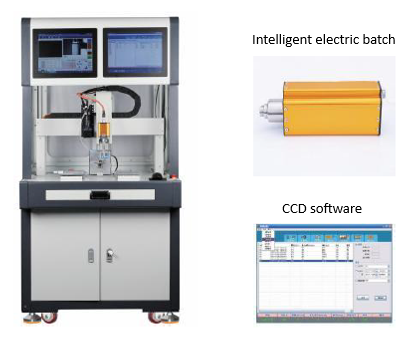

Floor-standing Visual Intelligent Screw Fastening Machine (TON-LCQ641)
Category: GLUE DISPENSING MACHINE
Specifications
Floor-standing Visual Intelligent Screw Fastening Machine Supplier in Johor
Floor-standing Visual Intelligent Screw Fastening Machine Supplier in Kuala Lumpur
Floor-standing Visual Intelligent Screw Fastening Machine Supplier in Melaka
Floor-standing Visual Intelligent Screw Fastening Machine Supplier in Penang
Floor-standing Visual Intelligent Screw Fastening Machine Supplier in Malaysia
Details
Model :
- TON-LCQ641
Features :
.png)
Technical Parameter :
| Locking efficiency: | 0.5-1.5s/screw |
| Locking range: | 600 × 220 × 100 (L × W × H) |
| Control system: | Motion control card + Weintek touchscreen |
| Guide rail: | HIWIN (Taiwan) |
| Transmission method: | HIWIN double slide rail + HIWIN lead screw |
| Positioning accuracy: | ± 0.01-0.02mm |
| Traverse speed: | X-axis : 800mm/s, Y-axis: 800mm/s, Z-axis: 500mm/s |
| Axis travel: | X-axis : 600mm, Y-axis: 400mm, Z-axis: 100mm |
| Feeding method: | Air-blown |
| Electric screwdriver: | Intelligent electric screwdriver/Qilisu/Japan HIOS/Servo electric screwdriver |
| Feeder: | Quanfeng |
| Program capacity: | 99+ |
| Communication port: | USB |
| Dimensions: | 850 × 693 × 750 (L × W × H) |
| Weight: | 800 kg |
| Maximum load: | 15 kg |
| Air supply: | 0.3-0.8 MPa |
| Power supply: | AC220V |
| Rated power: | 1500W |
