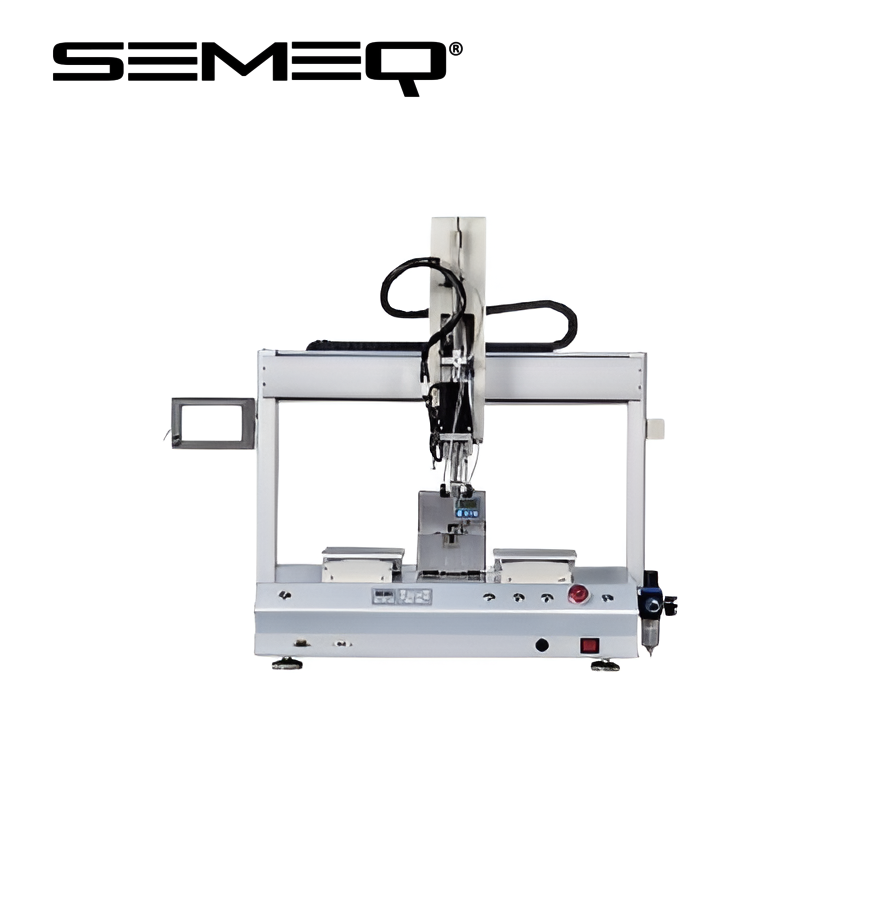

Four-axis Double-Platform Adsorption Screw Machine (TON-XF6331)
Category: GLUE DISPENSING MACHINE
Specifications
Four-axis Double-Platform Adsorption Screw Machine Supplier in Johor
Four-axis Double-Platform Adsorption Screw Machine Supplier in Kuala Lumpur
Four-axis Double-Platform Adsorption Screw Machine Supplier in Melaka
Four-axis Double-Platform Adsorption Screw Machine Supplier in Penang
Four-axis Double-Platform Adsorption Screw Machine Supplier Malaysia
Details
Model :
- TON-XF6331
Technical Parameter :
| Locking efficiency: | 1.0-1.6s/screw |
| Locking range: | 580 × 500 × 100 (L × W × H) |
| Control system: | Motion control card + Weintek touchscreen |
| Guide rail: | HIWIN (Taiwan) |
| Transmission method: | Leadshine closed loop + synchronous belt (customizable lead screw) |
| Positioning accuracy: | ± 0.02-0.05mm |
| Traction speed: | X-axis 400 mm/s, Y-axis 400 mm/s, Z-axis 300 mm/s |
| Axis travel: | X-axis 600 mm, Y-axis 300 mm, Z-axis 100 mm |
| Feeding method: | Adsorption/Magnetic suction |
| Electric screwdriver: | Intelligent electric screwdriver/Qilisu/Japan HIOS/Servo electric screwdriver |
| Feeder: | Quanfeng |
| Program capacity: | 99+ |
| Communication port: | USB |
| Dimensions: | 930 × 850 × 800 (L × W × H) |
| Weight: | 80 kg |
| Maximum load: | 5 kg |
| Air supply: | 0.3-0.8 MPa |
| Power supply: | AC220V |
| Rated power: | 600W |
