Details

---

Model :

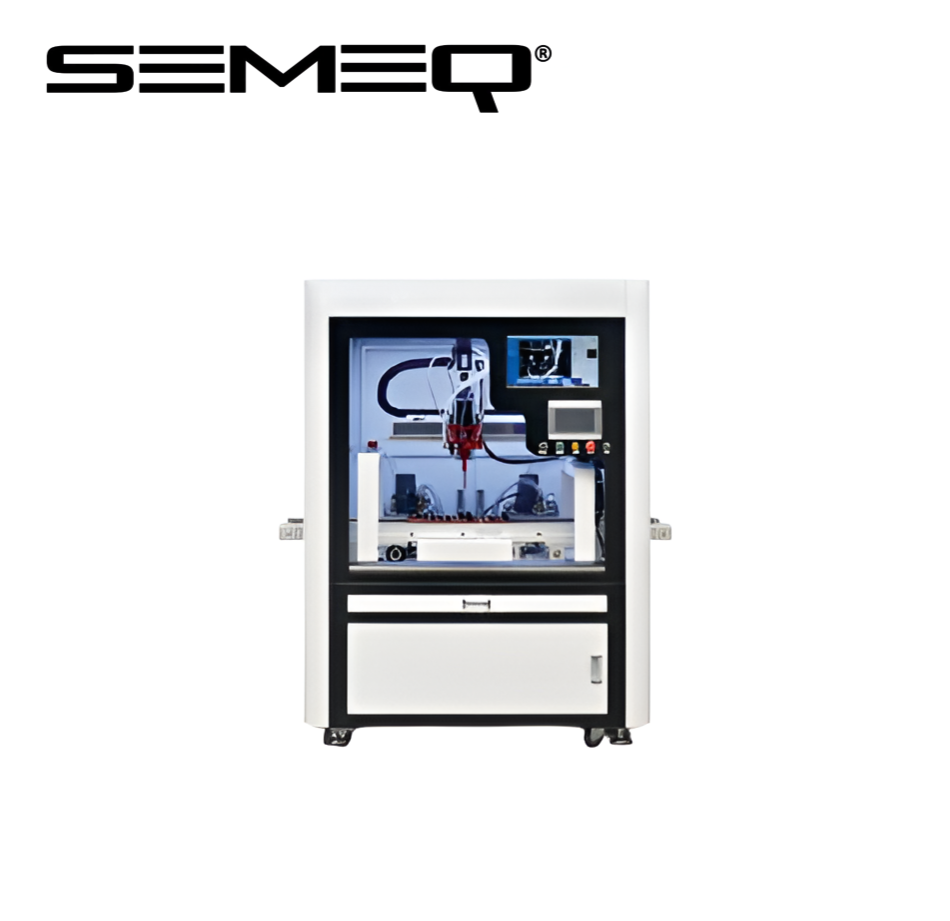

• TON-ZXG661



---

Specifications :

• The dispensing machine features a self-developed glue valve with back suction and anti-clogging functions.
• Short pauses can be set with a drip-stop function.
• Periodic quantitative calibration of glue dispensing volume and ratio.
• Speed-paced chain conveyor enables automatic loading and unloading.
• Dispensing head + 2 pumps + 2 material tanks.
• Two-component A/B glue (epoxy resin/1:1)
• 1g-30g/s * single head
• Digital pulse + pump metering + high-speed servo dynamic valve (no manual intervention required)



---

Technical Parameter :


Mixing ratio:	1:1-10:1 (depending on user's adhesive configuration)
Dispensing speed:	0.6-10g/1S; 1.5-20g/1S optional (varies depending on adhesive characteristics)
Dispensing accuracy:	Glue volume ±1%, ratio: ±1%
Head sealing pressure:	MAX≤ 3 Mpa
Applicable viscosity:	Within 20000CPS
Positioning accuracy:	± 0.02-0.05mm
Operation mode:	Automatic + Manual
Glue volume ratio control:	High-precision metering pump + motor
Flow rate counting:	Visual
Programming method:	Teach-in programming software
Electrical control system:	PLC + industrial touch screen (program setting, modification, storage, etc.)
Adhesive cut-off system:	A and B adhesive separation instantaneous automatic back suction system
Adhesive mixing system:	High-speed brushless dynamic stirring device
Adhesive stirring system:	Fixed-speed motor stirring
Glue tank capacity:	A tank: 30L, B tank: 30L, Cleaning tank: 2L
Equipment weight:	800KG
Triaxial Motion Stroke:	X-axis: 400mm; Y-axis: 400mm; Z-axis: 100mm (Customizable)
Equipment Dimensions:	1550 × 1150 × 1850mm (L × W × H)
Air Supply:	0.4-0.8 Mpa
Power Supply:	AC220V
Rated Power:	1500W



---
