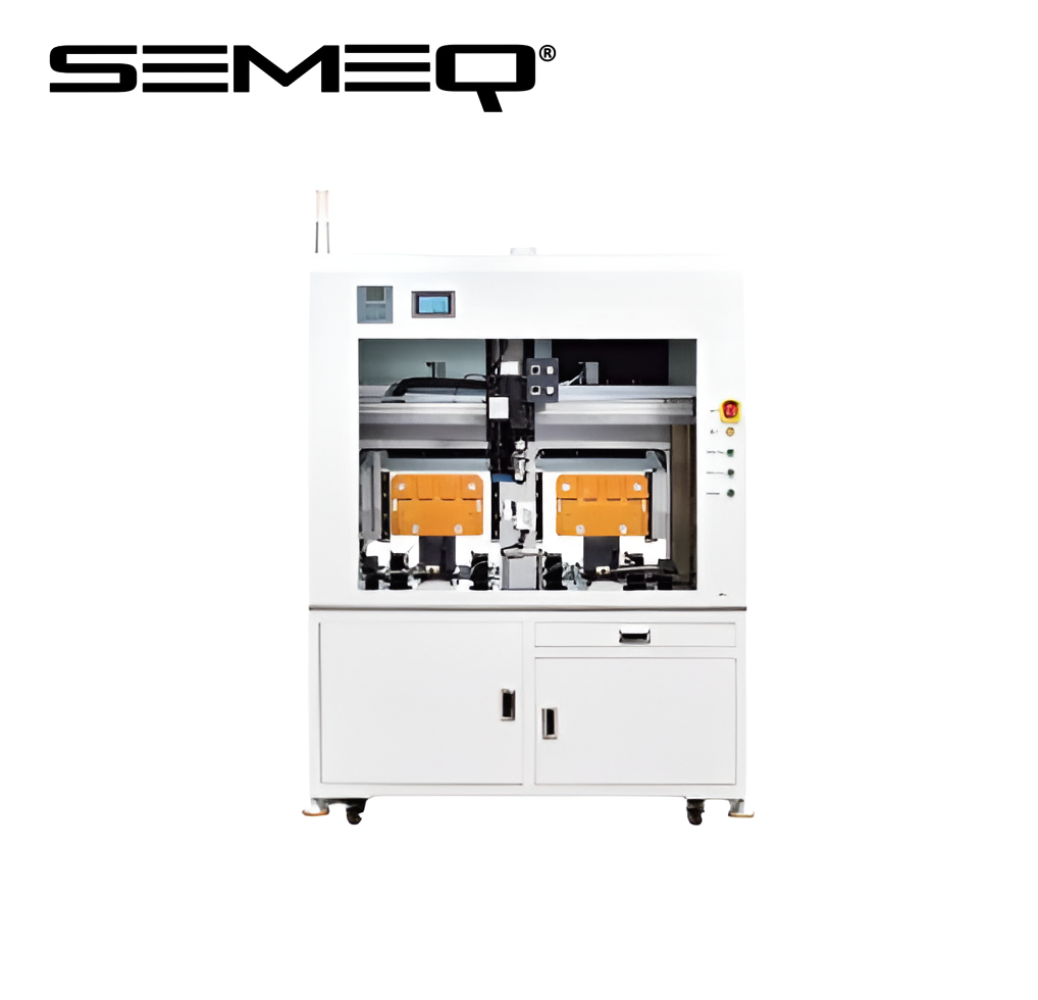

Landing Dual Platform Visual High-Speed Dispensing Machine (TON- GD5331)
Category: GLUE DISPENSING MACHINE
Specifications
Landing Dual Platform Visual High-Speed Dispensing Machine Supplier in Johor
Landing Dual Platform Visual High-Speed Dispensing Machine Supplier in Kuala Lumpur
Landing Dual Platform Visual High-Speed Dispensing Machine Supplier in Penang
Landing Dual Platform Visual High-Speed Dispensing Machine Supplier Melaka
Landing Dual Platform Visual High-Speed Dispensing Machine Supplier Malaysia
Details
Model :
- TON- GD5331
Technical Parameter :
| Glue supply method: | High-speed jet dispensing (other fluid devices optional) |
| Dispensing range: | 500 × 300 × 100 (L × W × H) |
| Control system: | Industrial PC |
| Drive method: | Servo drive |
| Transmission method: | Taiwan HIWIN dual slide rail + Taiwan HIWIN ball screw |
| Repeatability: | XY axis ±0.01-0.02 mm; Z axis ±0.01 mm |
| Traverse speed: | XY axis 0.1-1200 mm/s; Z axis 0.1-500 mm/s |
| Axis travel: | X axis 500 mm, Y axis 300 mm, Z axis 100 mm |
| Motion modes: | Point-to-point, continuous straight line, arc, full circle, polyline on XYZ axes |
| Program capacity: | 1000 groups, 4000 points per group |
| Communication ports: | 8 Inputs/8 Outputs; I/O signal: RS232 |
| Dimensions: | 1150 × 1290 × 1545 (L × W × H) |
| Total Weight: | 600 kg |
| Maximum Load: | 10 kg |
| Air Supply: | 0.3-0.8 Mpa |
| Power Supply: | AC220V |
| Rated Power: | 1500W |
