Details

---

Technical Parameter :

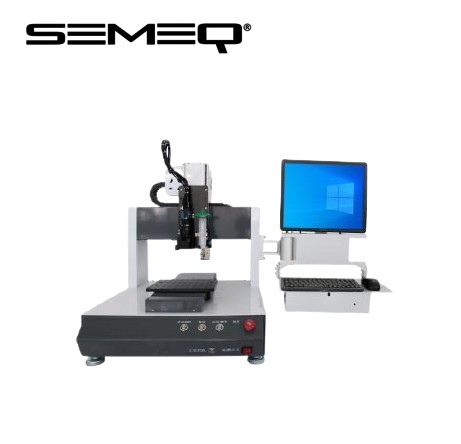

Equipment Model:	TON-CCD331SJ
Dispensing Method:	High-speed jet dispensing (other fluid devices optional)
Dispensing Range:	300 × 300 × 100 (L × W × H)
Control System:	CCD control system
Drive Method:	Servo drive
Transmission Method:	Taiwan HIWIN double slide rail + TBI ball screw
Positioning Accuracy:	± 0.01-0.02mm
Maximum Travel Speed:	X-axis 800mm/s, Y-axis 800mm/s, Z-axis 600mm/s
Axis Travel:	X-axis 300mm, Y-axis 300mm, Z-axis 100mm
Motion Modes:	Point-to-point, continuous straight line, arc, full circle, polyline on XYZ axes
Program Capacity:	1000 sets, 4000 points per set
Communication Port:	USB R232 R485
Dimensions:	530 × 989 × 630 (L × W × H)
Weight:	70 kg
Maximum Load:	10 kg
Gas supply:	0.3-0.8 Mpa
Power supply:	AC220V
