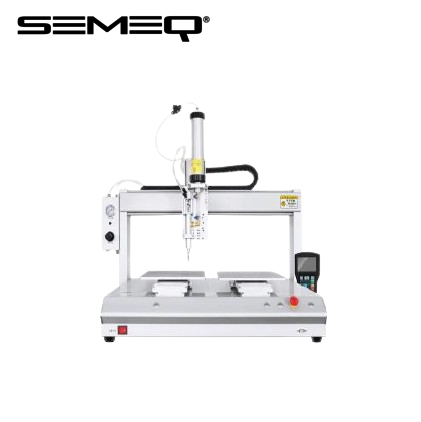

300ml Double Station Silicone Dispenser (TON-GJ5331)
Category: GLUE DISPENSING MACHINE
Specifications
Details
Technical Parameter :
| Equipment Model: | TON-GJ5331 |
| Dispensing Method: | 300ml silicone sleeve |
| Dispensing Range: | 500 × 300 × 100 (L × W × H) |
| Control System: | Microcontroller + Handheld Programmer Teach Pendant |
| Drive Method: | Leadshine |
| Drive Transmission Method: | Taiwan HIWIN Double Slide Rail + Elatai Synchronous Belt |
| Positioning Accuracy: | ± 0.02-0.05mm |
| Maximum Travel Speed: | X-axis 400mm/s, Y-axis 400mm/s, Z-axis 300mm/s Axis Travel: X-axis 500mm, Y-axis 300mm, Z-axis 100mm |
| Motion Modes: | Point-to-point, continuous straight line, arc, full circle, polyline, spiral on XYZ axes Program Capacity: 100 groups, 4000 points per group |
| Communication Port: | USB R232 R485 |
| External Dimensions: | 730 × 589 × 630 (L × W × H) |
| Overall Weight: | 68kg |
| Maximum load: | 5kg |
| Air supply: | 0.3-0.8 MPa |
| Power supply: | AC220V |
| Rated power: | 400W |
