Details

---

Features :

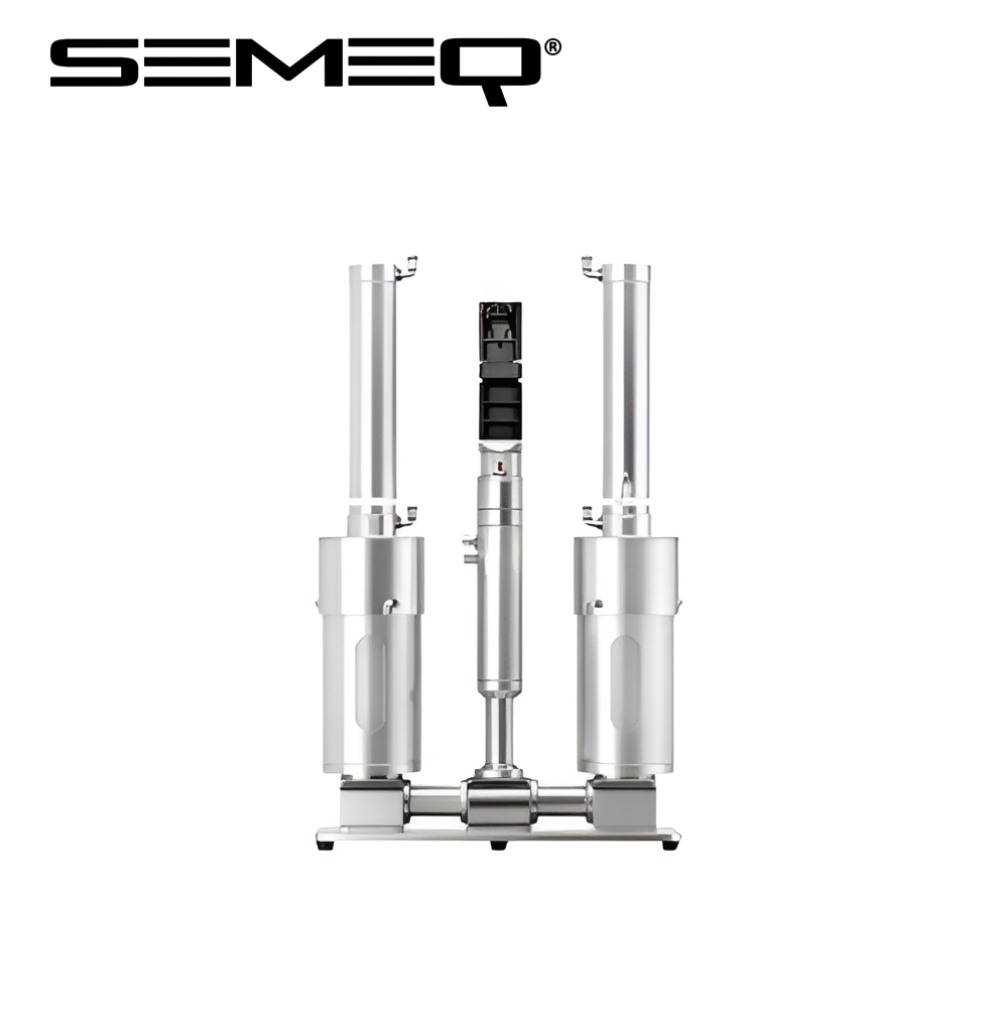

1. Features a 2.6L dual-barrel continuous adhesive supply system with one barrel operating while the other remains on standby, improving production efficiency.
2. Eliminates glue interruptions, inconsistent adhesive flow, and uneven dispensing lines commonly caused by pulsation in traditional pneumatic pumps.
3. Equipped with a dedicated touchscreen controller, low-level liquid alarm, and adjustable dispensing speed control.
4. Supports single-component adhesives with alternating barrel operation, while also allowing simultaneous supply of two-component adhesives for wider application flexibility.
5. Utilizes a high-flow screw pump for smooth adhesive delivery, including high-viscosity adhesives that are difficult to dispense.
6. Designed with a simplified structure for easy installation and seamless integration with automated machinery, while minimizing space usage.

---

Applications :


• Suitable for a wide range of high-viscosity adhesives.
• Supports various viscosity levels for different dispensing applications.
• Compatible with materials including:
  • Silicone
  • Epoxy resin
  • Grease
  • Thermal conductive gel
  • Thermal conductive silicone
  • Thermal paste



---

Technical Parameters :


Equipment dimensions (unit: mm)	530 mm × 200 mm × 870 mm
External material	303
Applicable glue viscosity	1.000-400.000Cps
Applicable glue packaging size	2600ml plastic bucket
Pressure range	0.2-0.8MPa
Boost ratio	10:01
Large glue dispensing capacity	5ML/SEC
Weight	32Kg
Low Material/Low Liquid Level Alarm	Magnetic sensing
Driver communication port	Pressure-maintaining transportation
Delivery pressure	80KG
Amount of glue supplied per transfer	6cc
Small glue dispensing volume	0.005ML/SEC
Dispensing accuracy	≤±5%

---
