Details
Model :

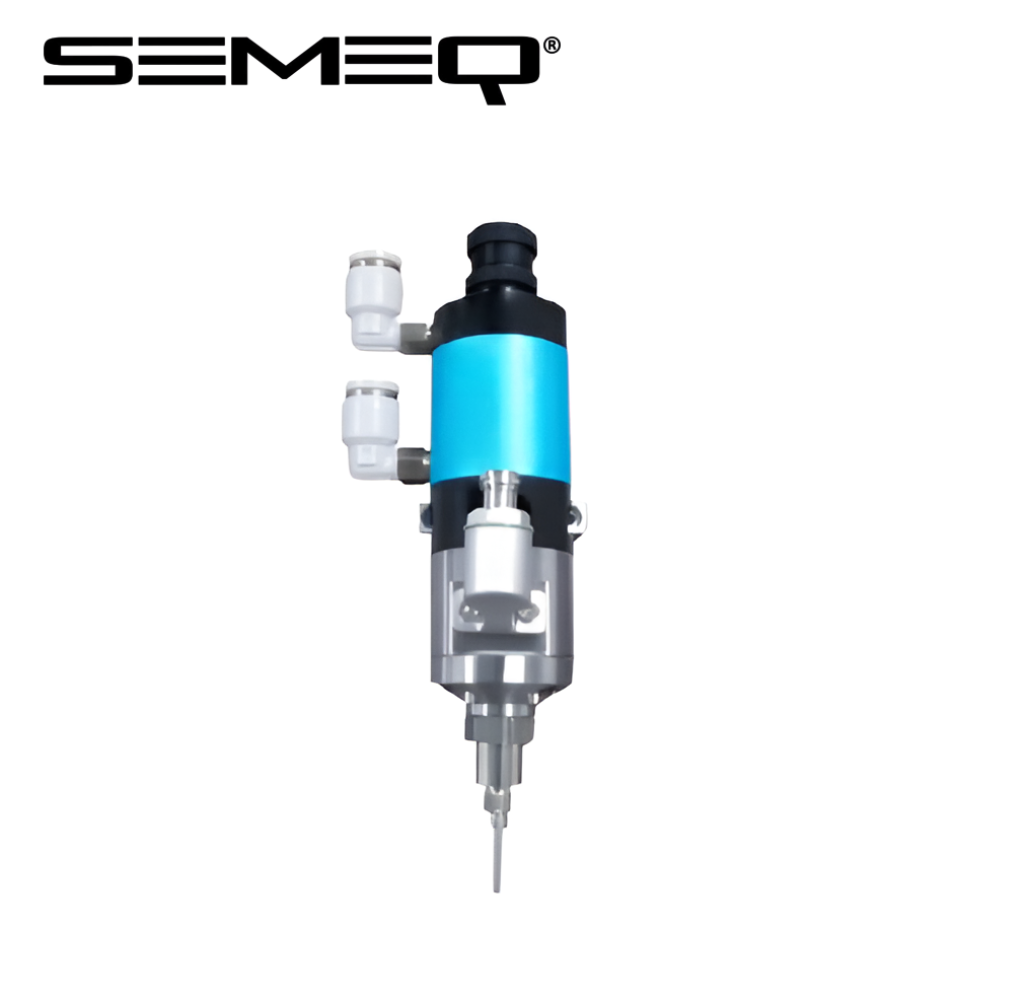

- TON-BQ-HX30CC
Features :
- Capable of rapid opening and closing in a short time, adaptable to high-frequency working environments.
- Unique back-suction function effectively prevents adhesive splashing, keeping the working environment clean.
- Made with high-quality materials, durable and reducing maintenance costs.
- Adaptable to various viscosities and types of liquid materials, meeting diverse coating needs.
- Adaptable to various fluid media and working environments, such as high-temperature, high-pressure, or corrosive media.
Applications :
- Dispensing valve designed for medium-to-high viscosity, solvent-based materials
- Capable of applying coatings in both linear and dot patterns
- Compatible with a wide range of materials, including:
- Conformal coatings
- UV adhesives
- Silicone
- Paints and inks
- Lubricants
- Epoxy resin adhesives
- Other surface coating materials
- Widely used across multiple industries, such as:
- Electronic packaging
- Lighting
- Automotive
- Packaging
- Medical
- Energy
Technical Parameters :
| Main body material | SUS304 stainless steel + aluminum alloy |
| Driving air pressure | 0.4~0.7MPa |
| Liquid delivery pressure | 0.1~2MPa |
| Minimum dispensing space | 1.2mm |
| Suitable for liquid types | UV adhesives, silicone, lubricants, epoxy resins, etc. |
| Viscosity range | 0.001~100Pa-s(1~100000Cps) |
| Output accuracy | ±1% |
| Dispensing consistency | >99% |
| Minimum dispensing diameter | 1mm |
| Minimum line width | 1mm |
