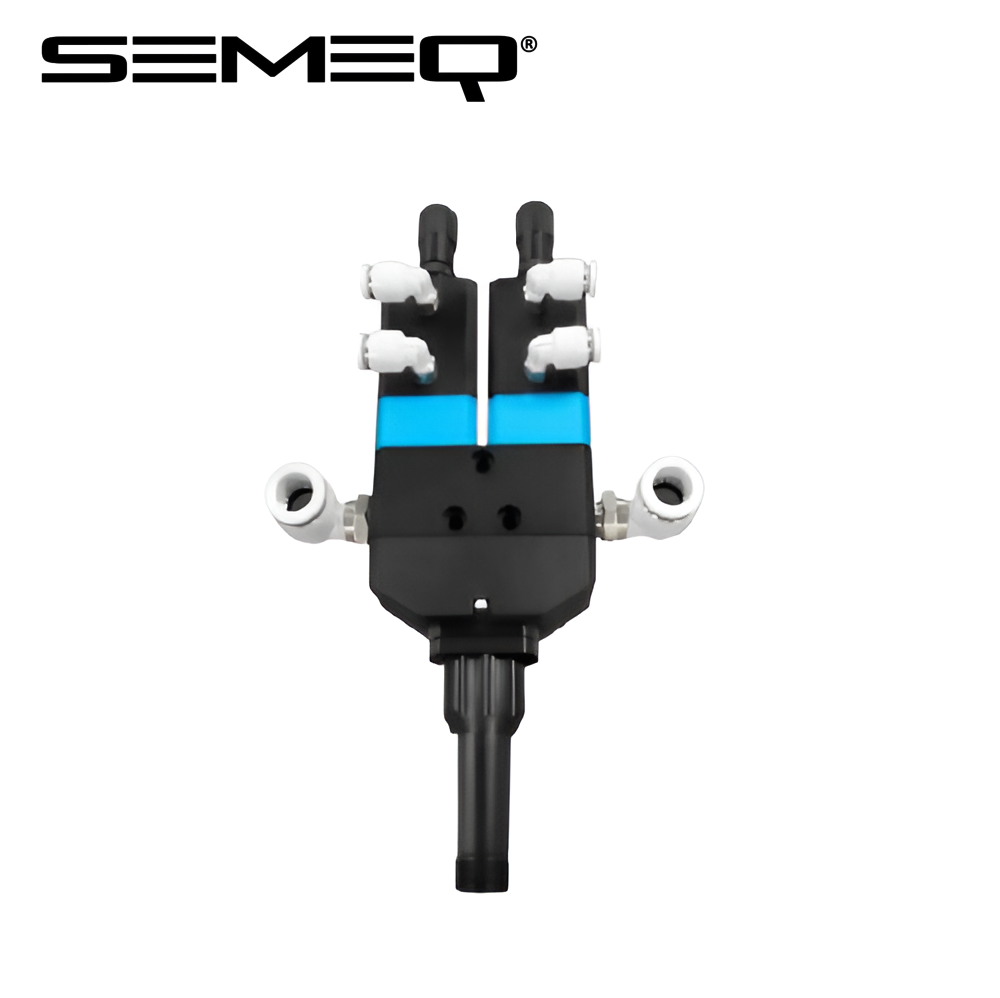

High-flow Dual-liquid High-Frequency Back Suction Valve (TON-BQ-HX-D1000)
Category: GLUE DISPENSING MACHINE
Specifications
High-flow Dual-liquid High-Frequency Back Suction Valve Supplier in Johor
High-flow Dual-liquid High-Frequency Back Suction Valve Supplier in Kuala Lumpur
High-flow Dual-liquid High-Frequency Back Suction Valve Supplier in Penang
High-flow Dual-liquid High-Frequency Back Suction Valve Supplier in Melaka
High-flow Dual-liquid High-Frequency Back Suction Valve Supplier Malaysia
Details
Model :
- TON-BQ-HX-D1000
Features :
- Wide air pressure adjustment range to meet various process conditions.
- High dispensing efficiency and large dispensing volume, enabling rapid dispensing.
- Wide applicable viscosity range, capable of handling fluids of various viscosities.
- Durable structural design ensures stable and durable operation, reducing maintenance costs.
- Adaptable feed tube specifications to common needs; valve body material balances strength and corrosion resistance.
Applications :
- Suitable for two-component fluids such as acrylic, epoxy, and thermal conductive pastes
- Supports ceramic, metal, non-metal, and magnetic bonding
- Ideal for sealing and thermal conductivity applications
Technical Parameters :
| Air pressure | 4.8-6.2 bar |
| Maximum glue output | 180mL/min |
| Optimum viscosity range | 1~200000cpS |
| Gas seal | NBR |
| Feeding components | L type quick twist joint |
| Firing pin material | Tungsten steel |
| Main valve body | Aluminum with hard coating |
| Cavity material | SUS304 |
| Available pipe specifications | 6mm |
| Fluid seals | PTFE |
| Suitable for liquid types | Acrylic, epoxy, thermal grease, etc. |
