Details

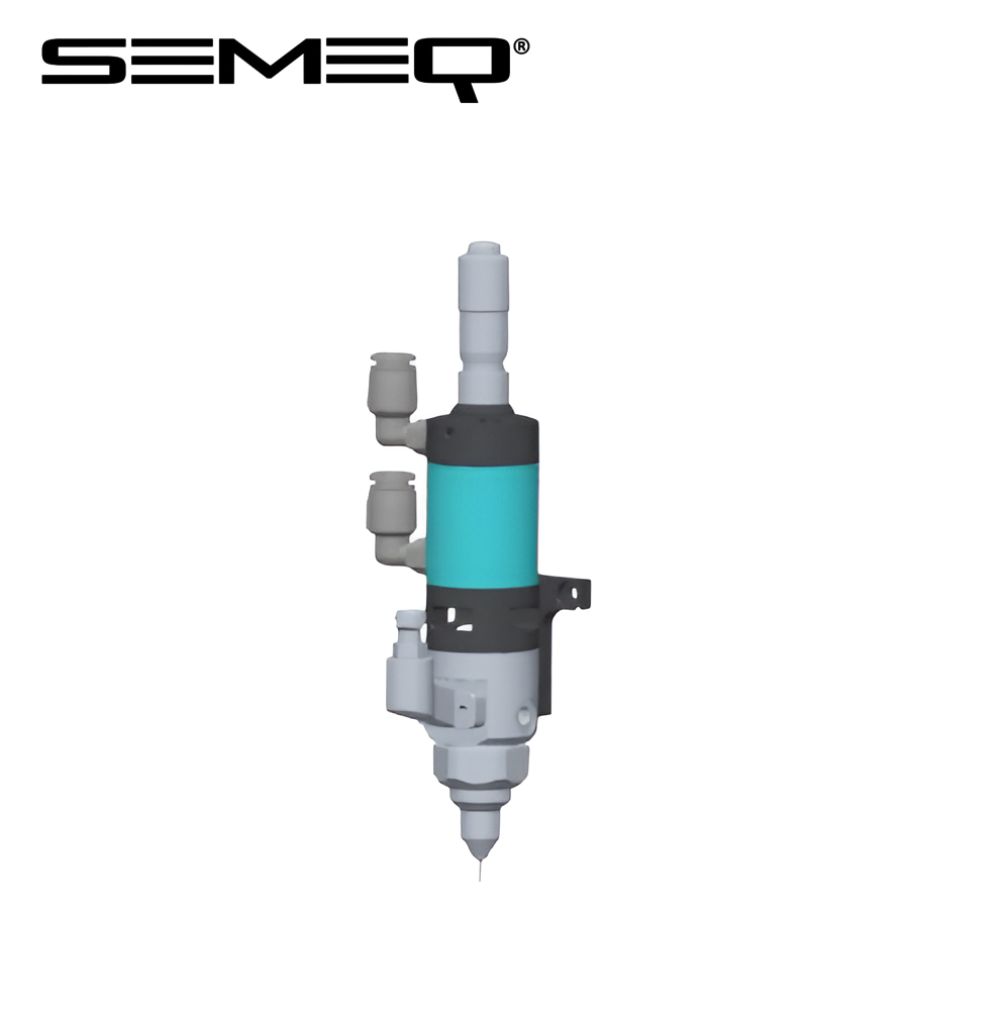

Model :
- TON-BQ-KG-Q1000
Features :
- Highly efficient dispensing capacity and strong air pressure adaptability, improving efficiency
- Utilizes advanced PTFE fluid sealant for leak-proof and cleanliness.
- Employs tungsten carbide ejector pins for longer service life.
- Wide viscosity range applicable to various adhesives from low to medium-high viscosity.
- Meets high-flow-rate dispensing requirements, improving production efficiency.
Applications :
- Mobile phone assembly
- Watch assembly
- Lens modules
- Earphone modules
- Displays
- Smart glasses
Technical Parameters :
| Equipment dimensions (unit: mm) | 138mm × 23mm × 23mm |
| Weight | 220g |
| Maximum output pressure | 4.8-6.2 bar |
| Maximum glue output | 120ml/min |
| Optimum viscosity range | 1~200000CpS (within) |
| Applicable glue | Adhesives of varying viscosities from low to high |
| Feeding components | L type quick twist joint |
| Cavity material | SUS304 |
| Available pipe specifications | 6mm |
| Fluid seals | Pan-Serbian Circle |
| Firing pin material | Tungsten steel |
| Gas seal | Fluorine rubber |
