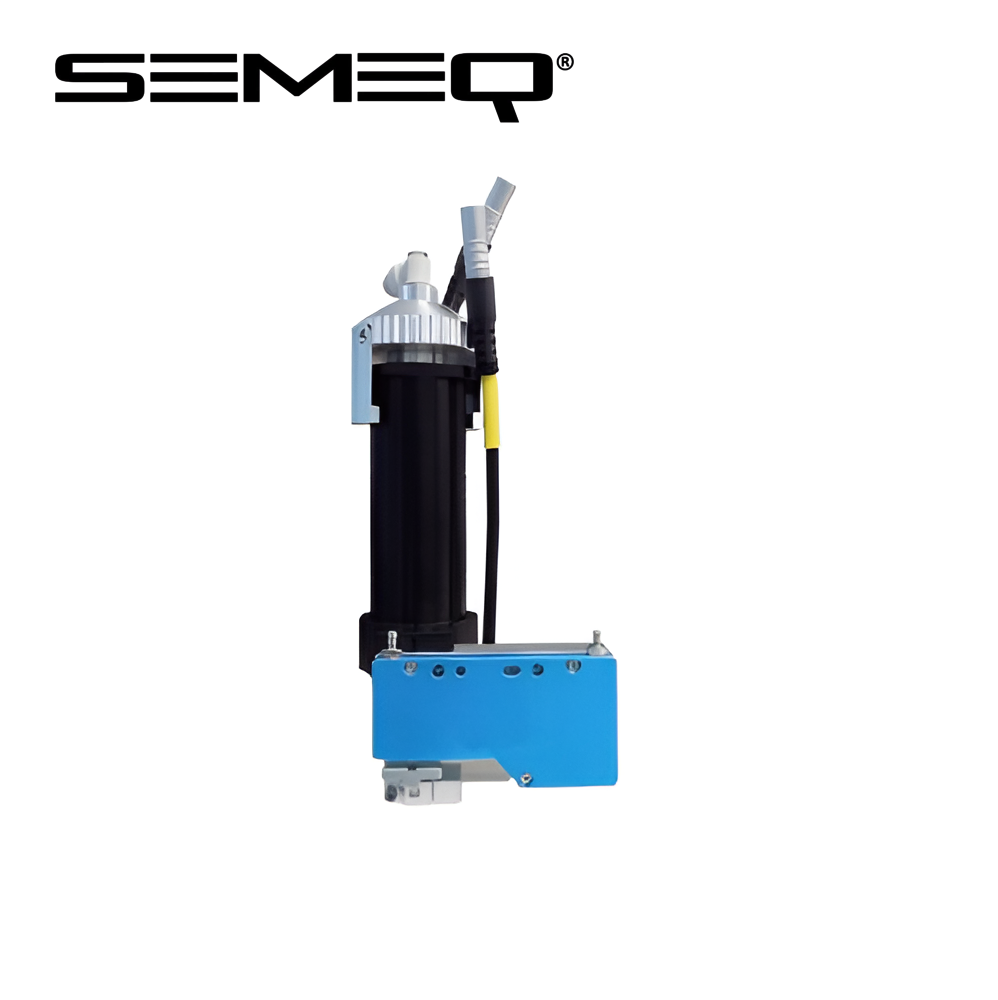

Category: GLUE DISPENSING MACHINE

Model :

Features :

Compact structure, high rigidity, minimal vibration, and no air bubbles.
High-quality piezoelectric ceramic, efficient electromechanical conversion, strong dispensing and excellent adhesive breakage.
Fully insulated heating tank, highly integrated, and provides uniform heating.
Precise temperature control within ±1℃, ensuring smooth adhesive flow and improving hot melt adhesive spraying stability.
Narrow line width up to 0.25mm, continuous and stable spraying of 2000 lines, no adhesive residue.

Applications :

Suitable for dispensing applications across multiple industries
Used in mobile phone assembly, lens modules, earphone modules, IoT RF, LED, and smart equipment
Simple to operate and highly efficient

Technical Paremters :

Nozzle assembly	Carbide 0.05-0.4mm (optional)
Equipment dimensions (unit: mm)	82mm × 91.5mm × 210.5mm
Applicable viscosity range	Maximum 20,000 cps
Weight	670g
Applicable ambient temperature	-10°C-45°C
Maximum dispensing frequency	500Hz continuous dispensing
Valve seat heating temperature	0°C-200°C
Minimum dispensing amount	1nl
Glue barrel heating temperature	0°C-180°C
Glue feeding pressure	≤0.6Mpa
Minimum glue drop diameter	0.2mm
Minimum dispensing line width	0.25mm
Minimum glue dot size	0.2mm
