Category: GLUE DISPENSING MACHINE

Model :

Features :

High-quality piezoelectric ceramic, efficient electromechanical conversion, strong dispensing force and strong adhesive breaking.
Unique internal valve design, adaptable to a wider range of adhesive viscosities.
Adaptable to various high-viscosity adhesives, including stringy adhesives with particles.
Suitable for various high-viscosity adhesives such as silver paste, gold paste, and silicone.
Tested to continuously spray 2000 dots without residue or scattered dots, with a minimum droplet diameter of 0.2 mm.

Applications :

Suitable for mobile phone assembly, lens modules, earphone modules, IoT RF, LED, smart glasses, and pharmaceutical applications
Simple to operate and highly efficient

Technical Paremters :

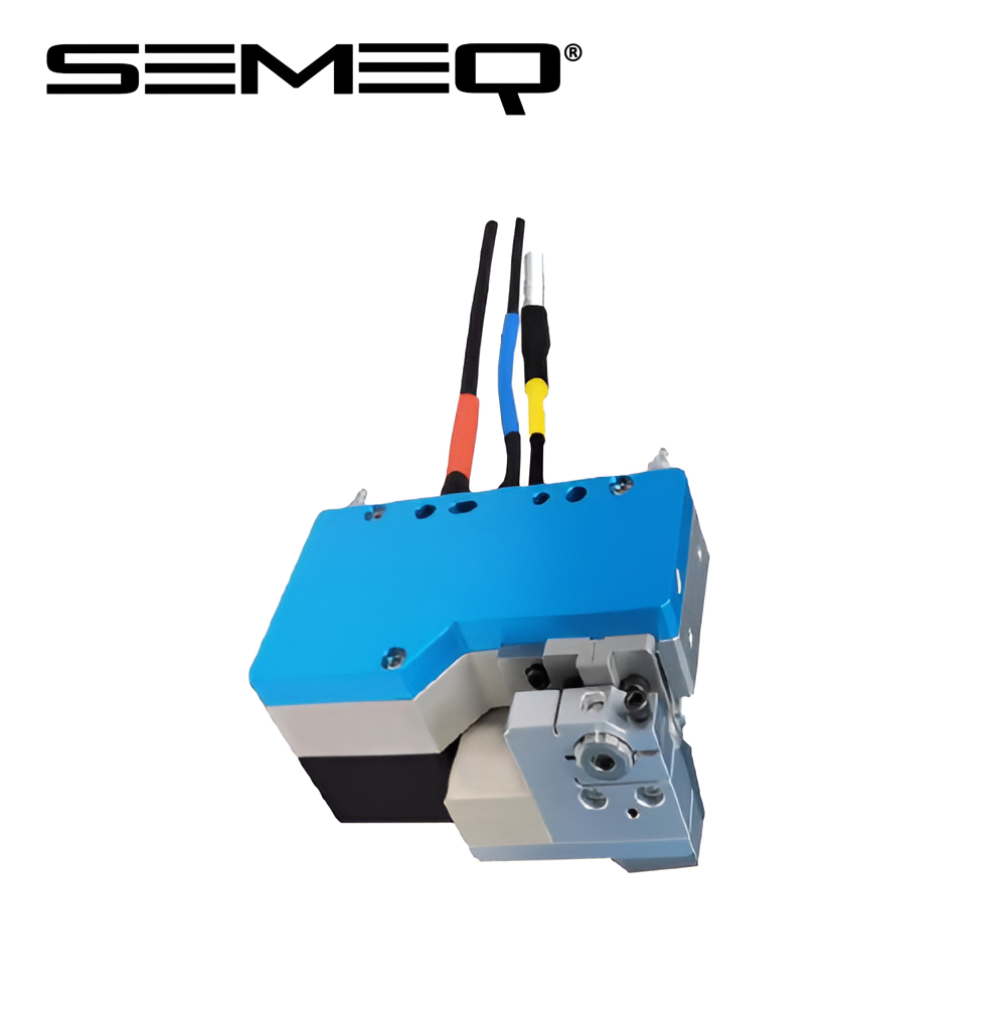

Device name	500E Cold Glue Piezoelectric Jetting Valve
Equipment dimensions (unit: mm)	82mm × 52.5mm × 52mm
Weight	430g
Maximum dispensing frequency	800Hz continuous dispensing
Minimum dispensing amount	1nl
Glue feeding pressure	≤0.6Mpa
Nozzle assembly	Carbide 0.05-0.4mm (optional)
Applicable viscosity range	Maximum 200,000 cps
Applicable ambient temperature	-10°C-55°C
Valve seat heating temperature	0°C-200°C
Minimum dispensing line width	0.25mm
Minimum glue dot size	0.2mm
