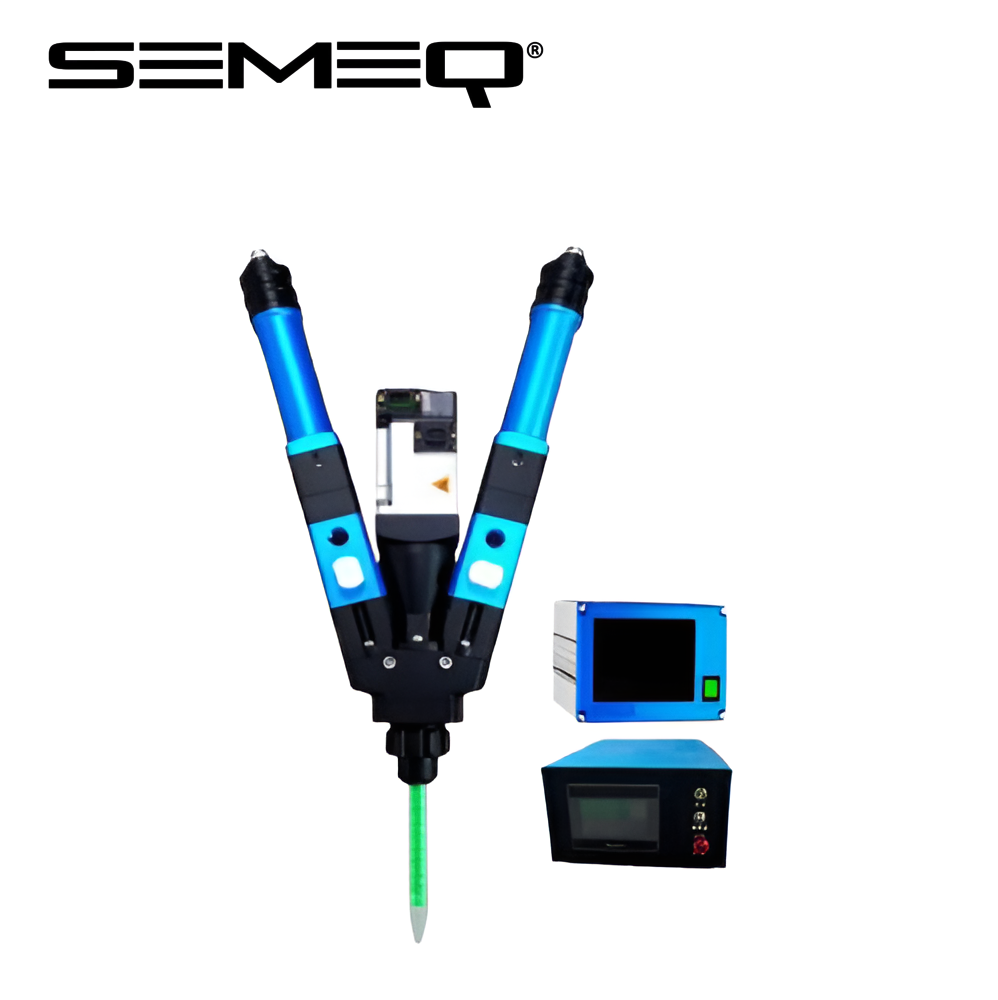

Mixing Tube Type Dynamic Mixing Screw Valve (TON-BQ-MD200-DT)

Mixing Tube Type Dynamic Mixing Screw Valve (TON-BQ-MD200-DT)

Category: GLUE DISPENSING MACHINE

Specifications

Mixing Tube Type Dynamic Mixing Screw Valve Supplier in Johor Mixing Tube Type Dynamic Mixing Screw Valve Supplier in Kuala Lumpur Mixing Tube Type Dynamic Mixing Screw Valve Supplier in Penang Mixing Tube Type Dynamic Mixing Screw Valve Supplier in Melaka Mixing Tube Type Dynamic Mixing Screw Valve Supplier Malaysia

Details

Model :

TON-BQ-MD200-DT

Features :

Stator-rotor volumetric fluid delivery, flow rate unaffected by pressure changes.
Dynamic mixing in the mixing tube ensures more uniform adhesive mixing and more perfect foaming.
Suitable for two-component fluids and abrasive fluids, offering superior performance.
A/B ratio monitoring and adjustment ensures dripping and stringing during dispensing.
Supports time mode, automatic mode, volume mode, and automatic dispensing.

Applications :

Widely used for adhesive dispensing in electronics, automotive, aerospace, medical, and communications industries
Suitable for epoxy, UV adhesives, sealants, and other adhesives
Mixing motor rotates the screw to ensure even mixing
Mixing speed can be adjusted based on different adhesive types

Technical Paremters :

Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≥40bar
Output accuracy	±1%
Flow	Max. 36 ml/min
Minimum dispensing amount	0.01ml
Applicable glue	Non-foaming adhesives require dynamic mixing of the adhesive.
Rotor material	SUS304/SUS316L
Stator material	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	肖6mm tubing, 12mm tubing, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%
