Details
Model :

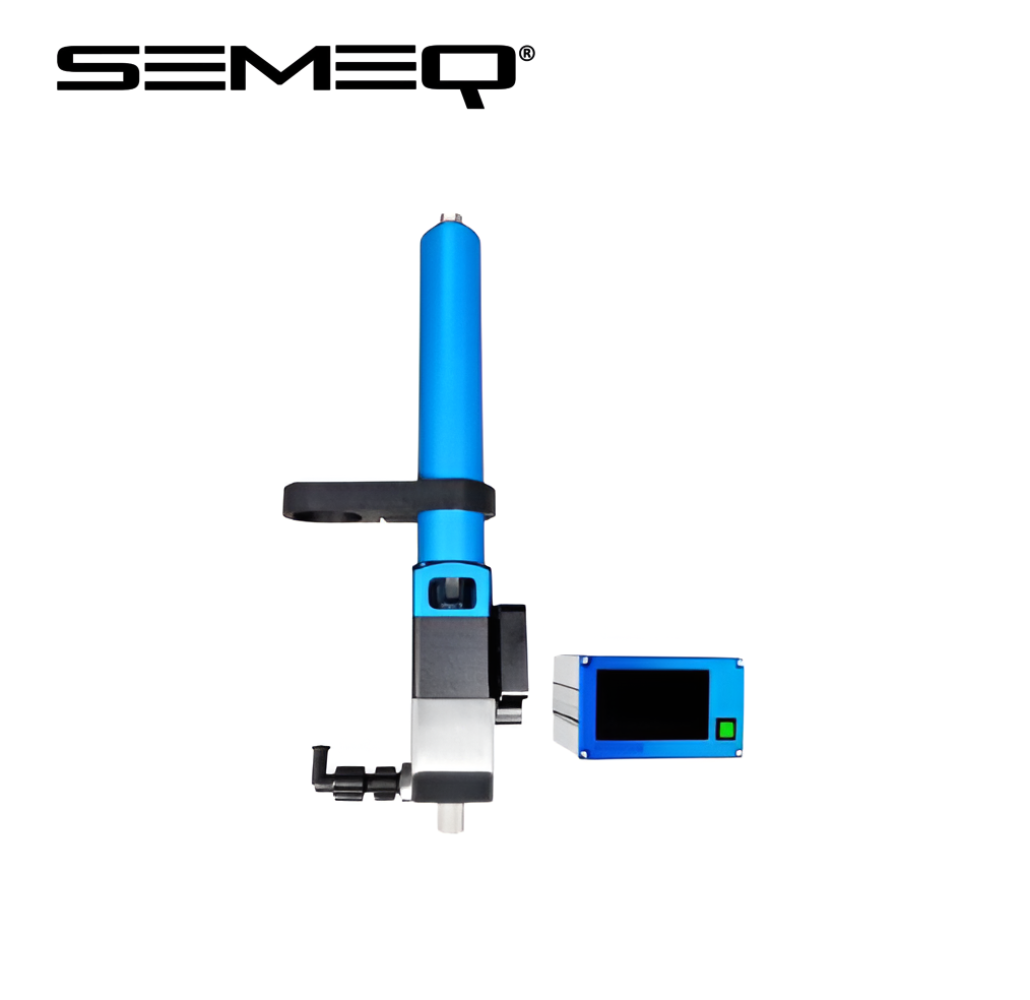

- MS65-DMP4 -10
Features :
- Disposable tube design eliminates cleaning and ensures easy operation.
- Tubes can be replaced within seconds, greatly improving efficiency.
- Suitable for two-component fluids and abrasive materials with excellent performance.
- Advanced technology and precision structure provide stable operation and low maintenance.
- Compact design allows easy installation and mobility across different production environments.
Applications :
- Widely used for precision dispensing in electronics, automotive, aerospace, medical, and communications industries
- Suitable for anaerobic, epoxy, and UV adhesives
- Disposable tube design allows easy adhesive changes
- Ideal for small-scale production and frequent material switching
Technical Paremters :
| Equipment dimensions (unit: mm) | 90mm × 50mm × 225mm |
| cycle rate | 300 cycles per minute |
| Equipment weight | 331 grams |
| Wetted component material | Delrin, Nylon, Fluororubber |
| Material viscosity range | 30.000-600,000cps |
| Fluid inlet | up to 30psi |
| Fluid pressure | Internal thread luer connector |
| Fluid outlet | External thread luer connector |
| Input voltage | 24Vdc |
| Suitable for liquid types | Anaerobic adhesives, UV adhesives, etc. |
View more about Anaerobic Glue Screw Valve (MS65-DMP4 -10) on main site
