Details
Model :

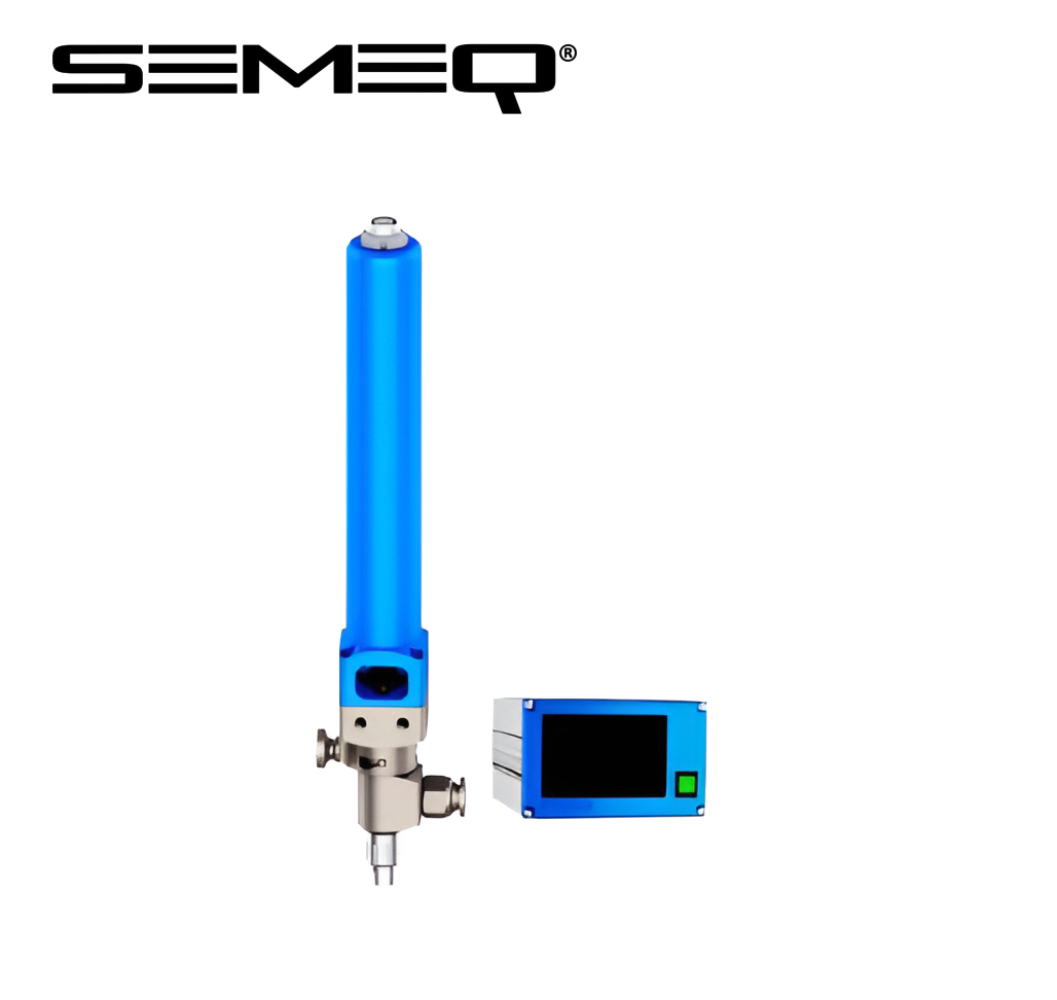

- TON-MATE SC17W
Features :
-
Volumetric fluid delivery, flow rate unaffected by pressure changes.
-
Concentric screw closed-loop motor drive, high output accuracy.
-
High-hardness tungsten steel rotor with excellent wear resistance.
-
Quick-release patented design, simple structure, easy maintenance, and cost reduction.
-
Spiral fluid delivery method, ensuring long-term stable dispensing.
Applications :
- Suitable for medium to high viscosity adhesives
- Compatible with solder paste
- Compatible with thermal grease
- Compatible with polishing paste
- Compatible with silver paste
- Compatible with ceramic paste
Technical Paremters :
| Device name | Open single-liquid screw valve |
| Wetted part material | SUS304/UPE |
| Optimum input pressure | 1~6 bar |
| Feed port | 肖6mm tubing, G1/8 thread |
| Fluid viscosity | Medium to high viscosity fluids, suitable for use with particulate fillers |
| Discharge port | Luer connector/high-pressure needle retaining nut |
| Flow range | 0.017~2.04 ml/min |
| Ambient temperature | 10-40°C |
| Minimum dispensing amount | 0.01ml |
| working temperature | 10-40°C (50-104°F) |
| Output accuracy | ±1% |
| Viscosity range | 5000-1000,000 cps |
| Rotor material | Tungsten steel |
| Dispensing consistency | >99% |
