Details

---

Model :

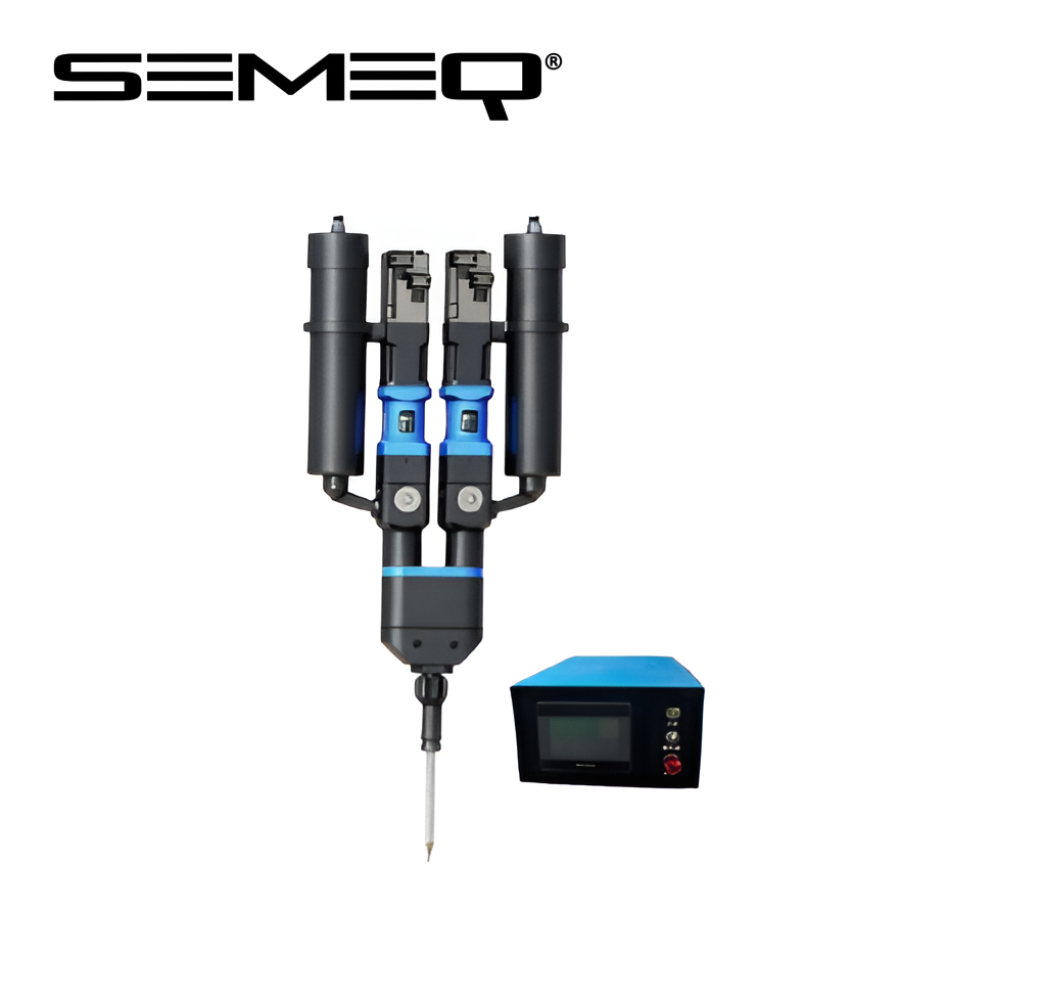

• HD1000-300ML


Features :


1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Precise A/B ratio control ensures accurate mixing and improved quality.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Larger internal cavity for easier cleaning.
6. Suitable for low to high viscosity colloids, capable of handling ultra-high viscosity, high-filler fluids.
7. High-performance sealing and output ensure leak-proof fluid and improve potting efficiency.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.


Applications :

Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 90 ml/min
Minimum dispensing amount	0.02 ml
Applicable glue	Low viscosity adhesive in 300ml packaging
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator materials	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	G1/2 thread, KF16
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%



---
