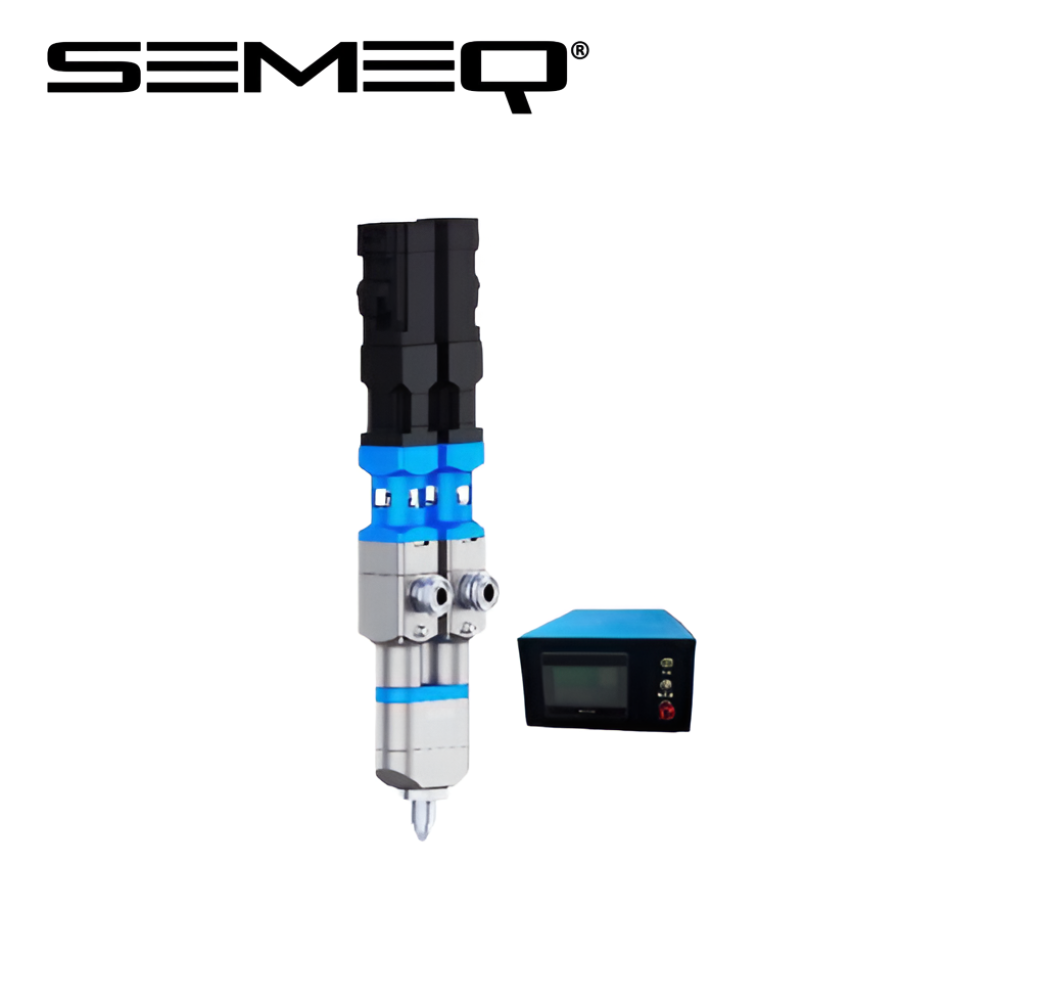

HD2000 High-Flow Dual-Liquid Screw Pump (TON-MATE HD2000)
Category: GLUE DISPENSING MACHINE
Specifications
Details
Model :
- TON-MATE HD2000
Features :
- Volumetric fluid delivery; flow rate unaffected by pressure changes.
- Precise A/B ratio control ensures accurate mixing and improved quality.
- Stator possesses excellent corrosion resistance and particle resistance.
- Rotor is made of high-hardness material, offering superior wear resistance.
- Larger internal cavity for easier cleaning.
- Suitable for low to high viscosity colloids, capable of handling ultra-high viscosity, high-filler fluids.
- High-performance sealing and output ensure leak-proof fluid and improve potting efficiency.
- Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.
Applications :
- Suitable for two-component fluids (e.g., acrylic, epoxy, thermally conductive resins)
- Enables ceramic bonding
- Enables metal bonding
- Enables non-metal bonding
- Supports magnetic bonding
- Suitable for sealing applications
- Supports thermal conductivity processes
Technical Paremters :
| Input pressure | 0~6 bar |
| Maximum output pressure | 20 bar |
| Self-sealing ability | ≈2 bar |
| Output accuracy | ±1% |
| Flow | Max. 180 ml/min |
| Minimum dispensing amount | 0.04 ml |
| Applicable glue | From water to paste, suitable for use with granular fillers. |
| Rotor material | SUS304/SUS316L/Zirconium Oxide Ceramics |
| Stator materials | FFKM/PU/EPDM/NBR |
| Wetted part material | SUS304/POM/PTFE/PEEK/AL |
| Feed port | G1/2 thread, KF16 |
| Discharge port | Standard mixing tube base (1:1/1:2/1:10) |
| Mixing ratio | 1:1~100:1 |
| Dispensing consistency | >99% |
| Ambient temperature | 10~40°C |
| Fluid viscosity | From water to paste, suitable for use with granular fillers. |
