Details

---

Model :

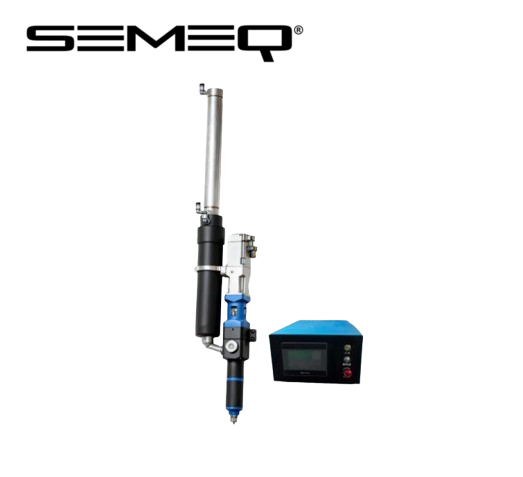

•  HS1000-300ML-QG

Features :

1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Larger internal cavity within the valve body facilitates cleaning.
6. Suitable for low to high viscosity colloids, capable of handling ultra-high viscosity, high-filler fluids.
7. High-performance sealing and output ensure leak-free fluid delivery and improve potting efficiency.
8. Supports time-based, automatic, and volumetric modes, automatic dispensing, and automatic back suction.


Applications :


• Suitable for a wide range of single-component fluids
• Compatible with UV adhesives
• Supports sealing silicone applications
• Works effectively with greases
• Handles conductive adhesives
• Suitable for epoxy adhesives
• Ideal for thermal grease applications


Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 90 ml/min
Minimum dispensing amount	0.02ml
Applicable glue	Low viscosity adhesive in 300ml packaging
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator material	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	G1/2 thread, KF16
Discharge port	G1/4 thread, high-pressure needle
Mixing ratio	1:1~100:1
Dispensing consistency	>99%
Ambient temperature	10~40°C
Fluid viscosity	From water to paste, suitable for use with granular fillers.

---
