Details

---

Model :

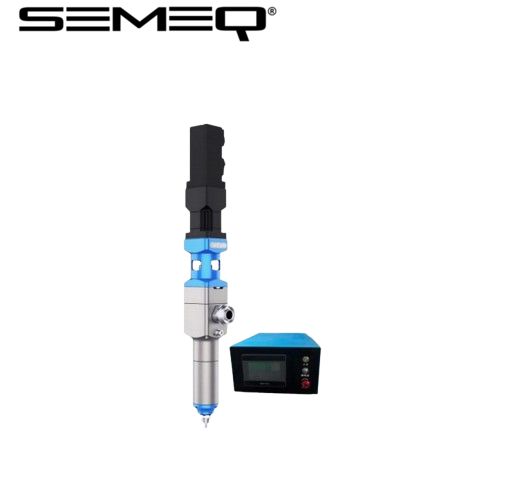

• TON-MATE HS2000


Features :

1. Volumetric fluid delivery; flow rate is unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Larger internal cavity within the valve body for easier cleaning.
6. Suitable for low to high viscosity colloids, capable of handling ultra-high viscosity, high-filler fluids.
7. High-performance sealing and output ensure leak-free fluid delivery and improve potting efficiency.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and automatic back suction.


Applications :


• Designed for use with various single-component fluids
• Compatible with UV adhesives
• Suitable for sealing silicone applications
• Works effectively with lubricants
• Supports conductive adhesives
• Handles epoxy adhesives
• Ideal for use with thermal grease

Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max.180ml/min
Minimum dispensing amount	0.04ml
Applicable glue	Medium to high viscosity adhesive containing particles, 300ml packaging
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator material	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	G1/2 thread, KF16
Discharge port	G1/4 thread, high-pressure needle
Mixing ratio	1:1~100:1
Dispensing consistency	>99%
Ambient temperature	10~40°C
Fluid viscosity	From water to paste, suitable for use with granular fillers.

---
