Details

---

Model :

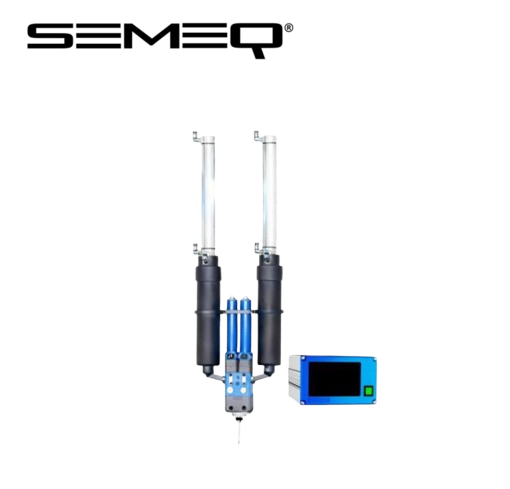

•  MD200C-300ML-QG


Features :

1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Suitable for colloids with varying viscosities from low to high.
6. A/B ratio monitoring and adjustment ensures dripping and stringing during dispensing.
7. Supports full data monitoring, including pressure, temperature, and glue volume.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.


Applications :


• Suitable for two-component fluids, including acrylic, epoxy, and thermally conductive pastes
• Easily achieves ceramic bonding
• Supports reliable metal bonding
• Compatible with non-metal bonding applications
• Effective for magnetic bonding processes
• Provides efficient sealing performance
• Facilitates thermal conductivity applications


Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max.36 ml/min
Minimum dispensing amount	0.01ml
Applicable glue	Medium to high viscosity adhesive containing particles, 300ml packaging
Rotor material	Rotor material
Stator material	Wear-resistant PU
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	6mm feed tube, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%



---
