Details

---

Model :

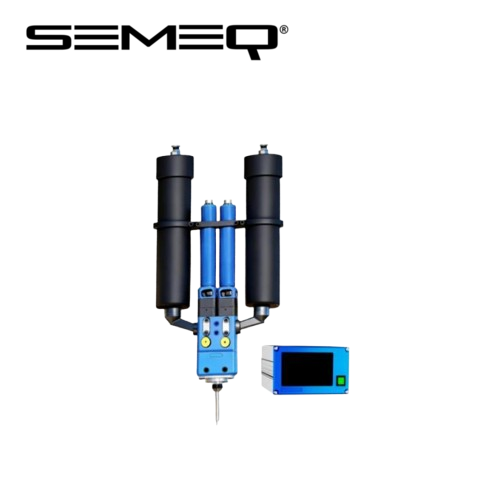

•  MD200C-300ML


Features :

1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Suitable for colloids with varying viscosities from low to high.
6. A/B ratio monitoring and adjustment ensures dripping and stringing-free dispensing.
7. Supports full data monitoring, including pressure, temperature, and glue volume.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.


Applications :


• Designed for use with two-component fluids such as acrylic, epoxy, and thermally conductive pastes
• Easily supports ceramic bonding applications
• Enables strong and reliable metal bonding
• Suitable for non-metal bonding processes
• Effective for magnetic bonding tasks
• Provides dependable sealing capabilities
• Enhances thermal conductivity performance


Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max.36 ml/min
Minimum dispensing amount	0.01ml
Applicable glue	High viscosity adhesive in 300ml packaging
Rotor material	Rotor material
Stator material	Wear-resistant PU
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	6mm feed tube, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%

---
