Details

---

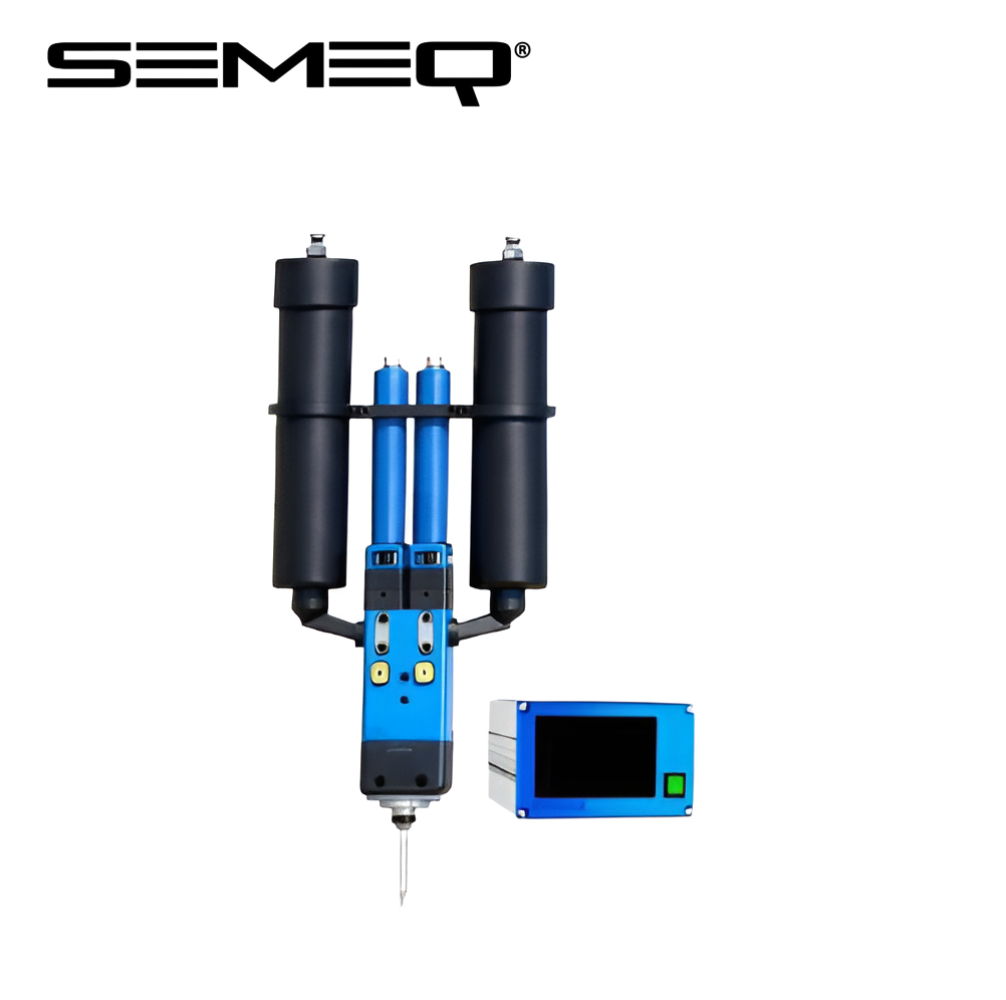

Model :


•  MD200-300ML


Features :

1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Suitable for colloids with varying viscosities from low to high.
6. A/B ratio monitoring and adjustment ensures dripping and stringing during dispensing.
7. Supports full data monitoring, covering pressure, temperature, and glue volume.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.


Applications :


• Suitable for two-component fluids such as acrylic, epoxy, and thermal conductive pastes
• Enables easy ceramic-to-ceramic bonding
• Supports metal-to-metal bonding applications
• Suitable for non-metal bonding processes
• Applicable for magnetic bonding applications
• Provides effective sealing performance
• Enhances thermal conductivity processes


Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 36 ml/min
Minimum dispensing amount	0.01ml
Fluid viscosity / Applicable glue	Low viscosity adhesive in 300ml packaging
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator materials	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	肖6mm tubing, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%

---
