Details

---

Model :

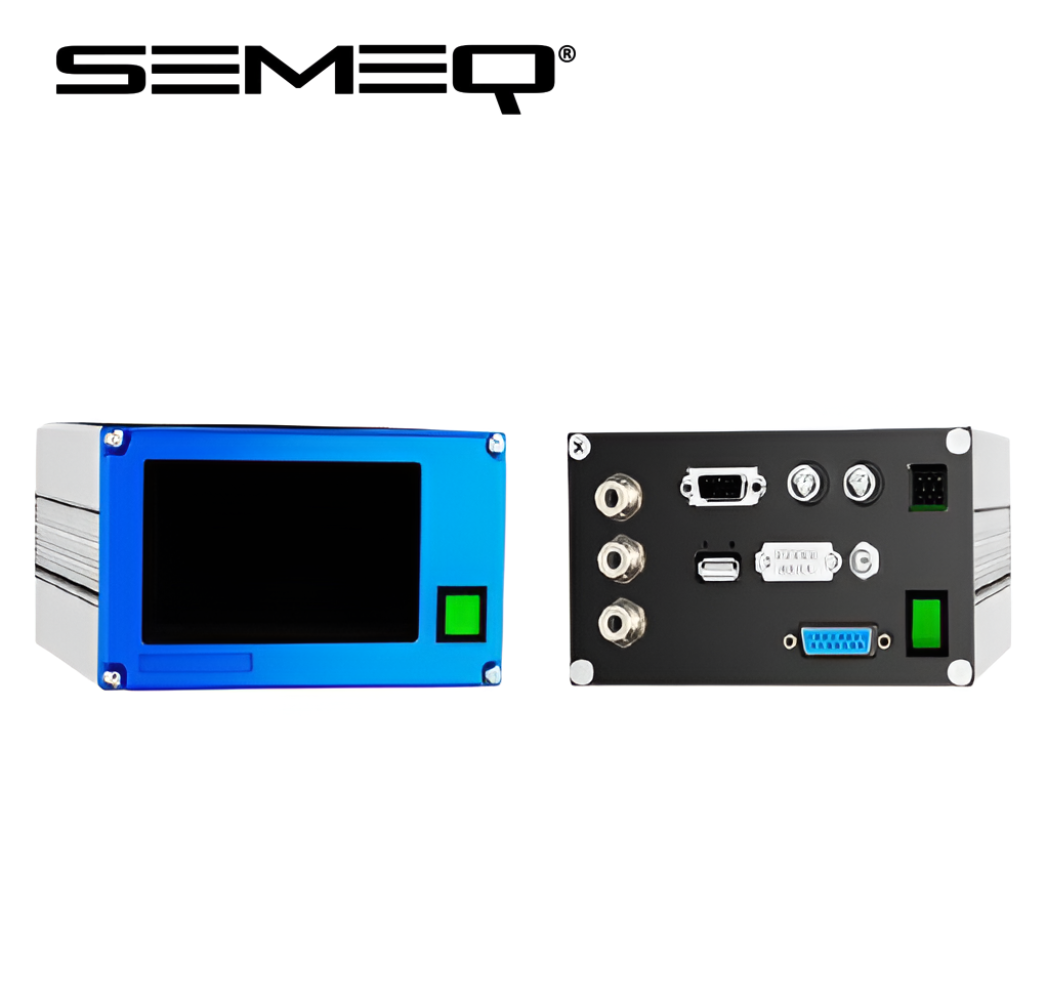

• PCP-C600D 4M



---

Features :


• The PCP-C600-D valve body control unit is suitable for D-MATE MD series valve body drives.
• User-friendly operating system with touchscreen operation.
• Multiple control modes and stable control.
• Supports time mode, automatic mode, volume mode, and automatic dispensing; supports I/O communication control, RS-232 communication, and real-time monitoring of dispensing status.
• Leak-proof module to solve dripping and stringing problems.
• Dual-liquid Screw Valve Principle and Control

---

Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 36 ml/min
Minimum dispensing amount	0.01ml
Fluid viscosity	From water to paste, suitable for use with granular fillers.
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator materials	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	肖6mm tubing, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base for discharge port (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%

---
