Details

---

Model :

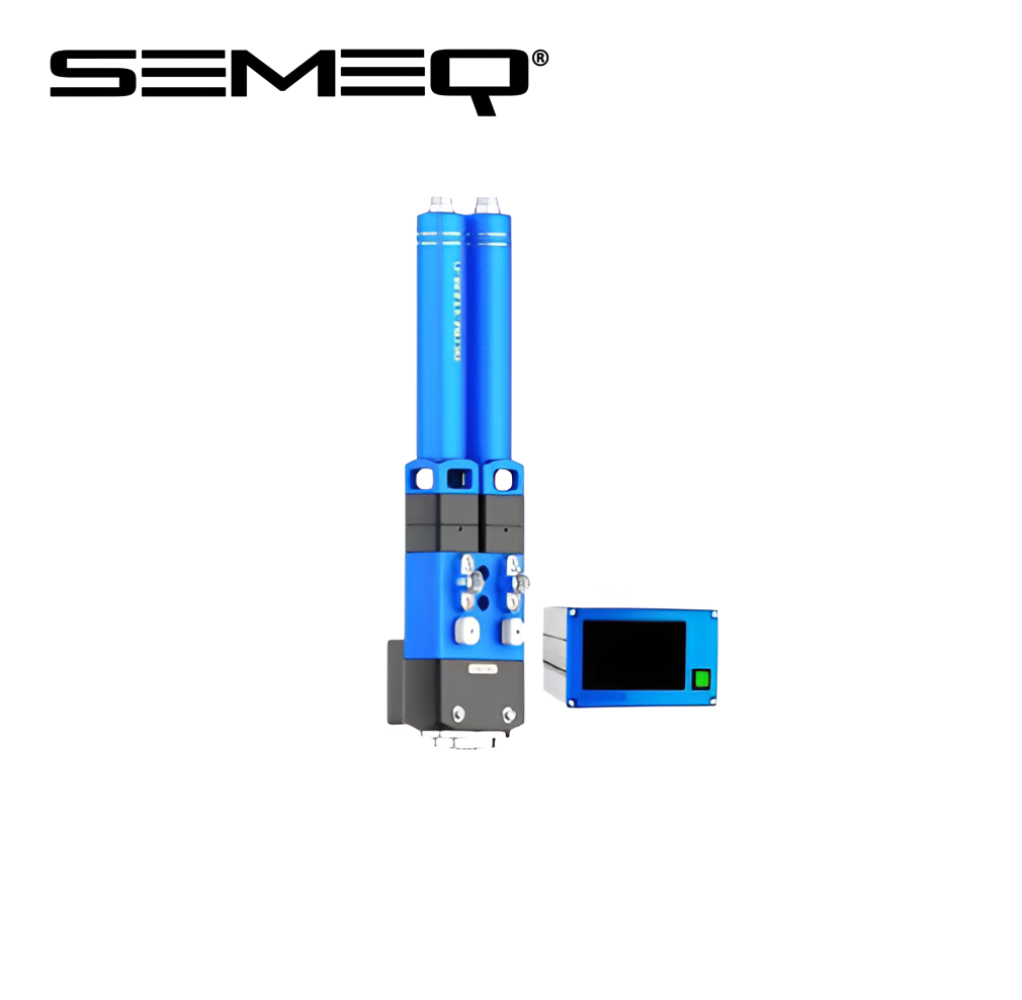

• TON-MATE MD20



---

Features :

1. Volumetric fluid delivery; flow rate unaffected by pressure changes.
2. Closed-loop motor drive for high output accuracy.
3. Stator possesses excellent corrosion resistance and particle resistance.
4. Rotor is made of high-hardness material, offering superior wear resistance.
5. Suitable for colloids with varying viscosities from low to high.
6. A/B ratio monitoring and adjustment ensures dripping and stringing during dispensing.
7. Supports full data monitoring, covering pressure, temperature, and glue volume.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.


---

Applications :


---

Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 3.6 ml/min
Minimum dispensing amount	0.002ml
Fluid viscosity	From water to paste, suitable for use with granular fillers.
Rotor material	SUS304/SUS316L/zirconia ceramic
Stator materials	FFKM/PU/EPDM/NBR
Wetted part material	SUS304/POM/PTFE/PEEK/AL
Feed port	肖6mm tubing, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%

---
