Details

---

Model :

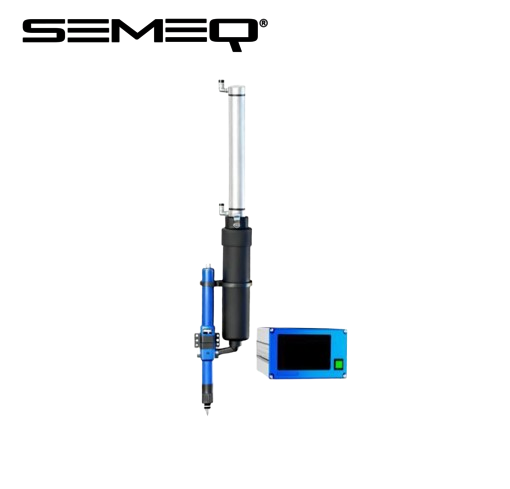

• MS200-300ML-QG



---

Features :

1. Volumetric fluid transport, the flow rate is not affected by pressure changes.
2. Closed-loop motor drive, high output accuracy.
3. The stator has excellent corrosion resistance and particle resistance.
4. The rotor is made of high-hardness material, which makes it more wear-resistant.
5. Suitable for colloids with viscosity ranging from low to high.
6. Monitoring and adjusting the A/B ratio to ensure no dripping or stringing issues during dispensing.
7. Supports full data monitoring, covering pressure, temperature, adhesive volume, etc.
8. Supports time mode, automatic mode, volume mode, automatic dispensing, and ratio control.




---

Applications :



• Suitable for two-component fluids such as acrylic, epoxy, and thermal conductive paste: easily achieves processes such as ceramic bonding, metal bonding, non-metal bonding, magnetic bonding, sealing, and thermal conduction.



---

Technical Paremters :


Input pressure	0~6 bar
Maximum output pressure	20 bar
Self-sealing ability	≈2 bar
Output accuracy	±1%
Flow	Max. 18 ml/min
Minimum dispensing amount	0.01ml
Fluid viscosity	Medium to high viscosity fluids
Rotor material	SUS304/SUS316L/Zirconium Oxide Ceramics
Stator material	FFKM/PU/EPDM/NBR
Wetted parts material	SUS304/POM/PTFE/PEEK/AL
Feed port	肖6mm tubing, Luer fitting, G1/8 thread
Discharge port	Standard mixing tube base (1:1/1:2/1:10)
Mixing ratio	1:1~100:1
Dispensing consistency	>99%



---
