Details

---

Standard PLCs with integrated communication and highly efficient processing ability for your control systems.


Model :

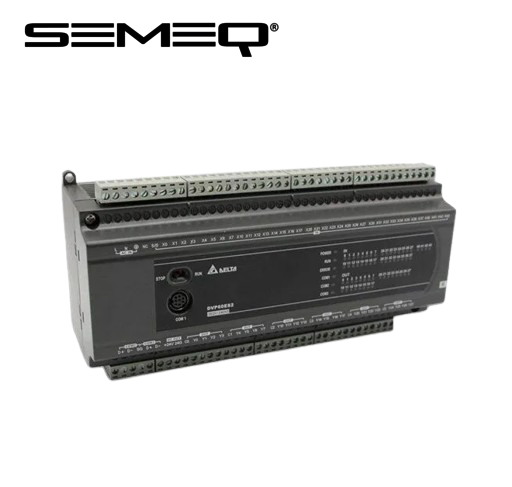

• DVP60ES200R



---

Features :

·  32-bit CPU for high-speed processing
·  DVP-ES2 series available with 16 / 20 / 24 / 32 / 40 / 60 / 80 I/O points
·  DVP-EX2 (Analog PLC) features:

• Built-in 12-bit: 4 analog inputs and 2 analog outputs
• Supports 14-bit analog I/O expansion module
• Built-in PID auto-tuning for analog control

·  Communication ports:

• 1 × RS-232
• 2 × RS-485

·  Program capacity: 16k steps
·  Data registers: 10k words
·  Basic instruction speed: 0.35 μs
·  Built-in RTC (hardware version 2.0 and above)
·  File register: 5k words
·  High efficiency:

• Executes 1k steps in 1 ms

·  Motion control:

• Up to 100 kHz pulse output
• Supports multi-axis control
• Includes mark/masking and instant frequency change functions

·  Security:

• Up to 4 levels of password protection for program safety



---

Specifations :


Model Name	DVP60ES200R
Series	DVP-ES2 Series
Program Capacity	16k Steps
Output Method	Relay
Inputs	36
Max I/O Points	60 I/O
Outputs	24
Communication	1 RS-232 and 2 RS-485 ports



---
