Details

---

Model :

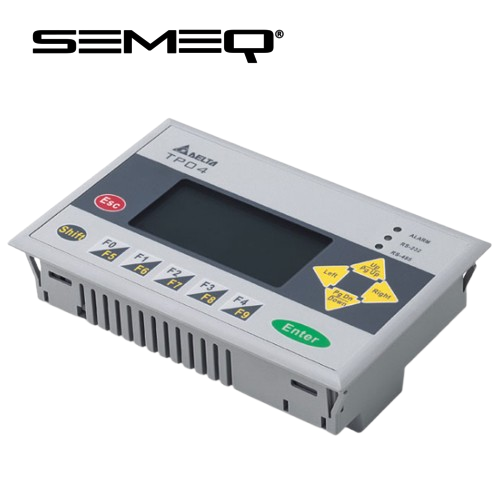

• TP04G-AS2



---

Features :


🖥️ Display Features

• High resolution 128 × 64 dots
• Displays 8 × 4 Chinese characters
• Multilingual display support

🔌 Communication Features

• Two built-in communication ports:
  • RS-232 / RS-422
  • RS-485
• Simultaneous use of RS-232 and RS-485

⏱️ System Features

• Built-in RTC (Real-Time Clock)
• Communication and alarm LED indicators

💾 Convenience Features

• Supports optional program copy card:
  • Quick copying of settings and programs
  • Reduces download time

🧩 Software Features

• Editing software includes:
  • Various objects and images for customization



---

Product Outline :






---

Dimensions :




---

Specifications:


ITEM		TP04G-AS2
Screen Type		STN-LCD
Display Color		Monochromatic
Backlight		The back-light automatic turn off time is 1~99 minutes (0 = do not turn off) (The back-light life is about 50 thousand hours at 25°C)
Resolution		128x64 dots
Display Range		(W) x (H) = 72 x 40 (unit: mm); 3.00" (diagonal preferred)
Contrast Adjustment		10 levels of adjustment
Language / Font		ASCII: (Code page 850) Alphanumeric (including European characters) China: (GB2324-80 codes) Simplified Chinese Fonts Taiwan: (Big 5 codes) Traditional Chinese Fonts
Display Text	5x8 dots	25 characters x 8 rows
	8x8 dots	16 characters x 8 rows
	8x12 dots	16 characters x 5 rows
	8x16 dots	16 characters x 4 rows
Font Size		ASCII: 5×8, 8x8, 8x12, 8x16
Alarm LED Indicator (RED)		1. Power on indication (Blink for three times) 2. Communication error alarm 3. Special indication by user programming
RS-232 LED Indicator (Yellow)		It will blink when transmitting program and communicating by using RS-232.
RS-485/RS-422 LED Indicator (Green)		It will blink when communicating by using RS-485/RS-422.
Program Memory		256KB flash memory
Serial Communication Port RS-232 (COM1)		Unsynchronized transmission method: RS-232 RS-232: 9 PIN D-SUB male Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
Extension Communication Port RS-422 (COM1) RS-485 (COM2)		Unsynchronized transmission method: RS-485/RS-422 RS-485: 5 PIN removal terminal RS-422: 9 PIN D-SUB male Parity: None/Odd/Even, Transmission speed: 9,600bps ~ 115,200bps Data length: 7 or 8 bits, Stop bits: 1 or 2 bits
Extension Interface		1. Update firmware version 2. The slot for program copy card
Battery Cover		DC 3V battery for HMI
5 PIN Removal Terminal		Include DC 24V input and RS-485 communication input



---
