Details

---

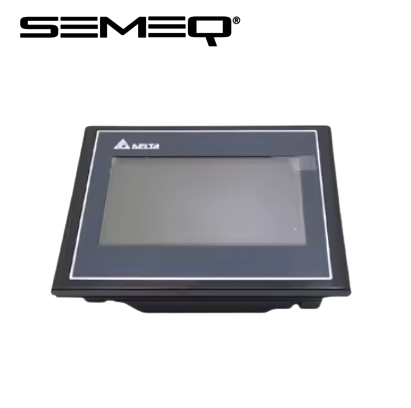

Model :


• DOP-B03S211
• DOP-B03E211



---

Specifications :


Model		DOP-B03S211	DOP-B03E211
LCD Module	Display Type	4.3" TFT LCD (65536 colors)
	Resolution	480 x 272 pixels
	Backlight	LED Back Light (less than 20,000 hours half-life at 25°C) (1)
	Display Size	95.04 x 53.856mm
Operation System		Delta Real Time 08
MCU		32-bit RISC Micro-controller
NDR Flash ROM		Flash ROM 128 MB
		(08 System: 30MB/Backup: 16MB / User Application:82MB)
SDRAM		64Mbytes
Backup Memory		32Kbytes
Buzzer		Multi-Tone Frequency (2K~4K Hz)/85dB
USB		1 USB Save Ver 2.0
		1 USB Host Ver 1.1
Serial COM Port	COM1	RS-232(supports hardware flow control)/RS-485
	COM2	RS-422/RS-485
Ethernet Interface		N/A	10M/100M
Perpetual Calendar		Built-in
Cooling Method		Natural air circulation
Safety Approval		CE/UL
Waterproof Degree		IP65/NEMA4 (2)
Operation Voltage		DC +24V (-10%~15%) (please use isolated power supply)
Voltage Endurance		AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)
Power Consumption (Na 2)		4.8W	7.2W
Backup Battery		3V lithium battery CR2032 x 1
Backup Battery Life		It depends on the temperature used and the conditions of usage, about 3 years or more at 25°C.
Operation Temperature		0°C~50°C
Storage Temperature		-20°C~+60°C
Amblent Humidity		10%~90% RH [0~40°C], 10%~55% RH [41~50°C], Pollution Degree 2
Vibration		IEC 61131-2 compilant 5Hz 8.3Hz Continuous: 3.5mm, 8.3Hz 150Hz - Continuous: 1.0g
Shock		IEC 60068-2-27 compliant 15g peak for 11 ms duration, X, Y, Z directions for 6 times
Dimensions (W) x (H) x (D) mm		129 x103 x 39
Panel Cutout (W) x (H) mm		118.8 x 92.8
Weight		Approx. 230g	Approx. 264g



---
