Details

---

Model :

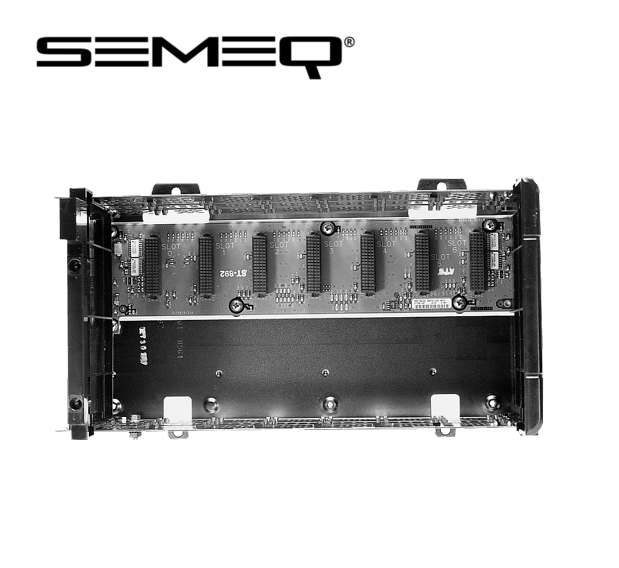

• 1756-A7



---

Features :


• Distributes power to all modules in the chassis through the backplane
• Features slot guides with snap-in retention for easy and secure installation of any 1756 module
• Supports optional slot fillers designed for both standard and extreme environment chassis
• Allows direct mounting of any 1756 power supply
• Available with conformal coating options for enhanced protection (contact supplier for details)



---

Specifications :


Product Series	ControlLogix (Bul. 1756/1757)
Component Type PLC & I/O	Chassis
Number of Slots	7
Module Specific Functions	The chassis backplane provides a high-speed communication path between modules and distributes power to each of the modules within the chassis.
Operating Temperature, Max	60 °C max
Operating Temperature, Min	0 °C min
Storage Temperature, Max	85 °C max
Storage Temperature, Min	-40 °C min
Relative Humidity, Max	95 %RH
Vibration Acceleration (Max.)	2 m/s²
Vibration Frequency, Operational (Max.)	500 Hz
Standards Compliance	IEC 60068-2-27
	IEC 60068-2-30
	IEC 60068-2-6
	IEC 60068-2-1
	IEC 60068-2-14
	IEC 60068-2-2
	IEC 61000-4-2
	IEC 61000-4-3
	IEC 61000-6-4
Certifications	CSA
	CE
	C-Tick
	KC (KCC)

---
