Details

---

The CPM2A brick-style controllers offer one of the most powerful, small-scale control solutions in the industry today. They provide 20, 30, 40 or 60 I/O point CPUs, pulse I/O for position control, multiple communications ports and a powerful instruction set.

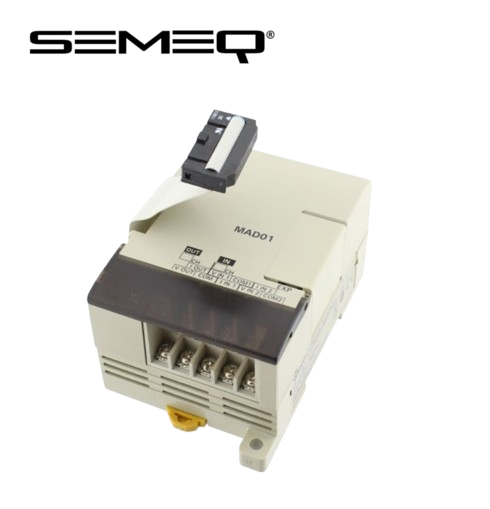

Model :


• CPM1A-MAD01-NL
• CPM1A-MAD02-CH



---

Features :


• Single analog output (voltage/current) and two analog inputs (voltage/current)
• Voltage output ranges: 0V to +10V, -10V to +10V
• Current output range: 4mA to 20mA
• Input signal ranges: 0V to +10V, +1V to +5V, 4mA to 20mA
• High resolution: 1/256 (current/0-10V), 1/512 (-10V to +10V)
• Fast conversion time: 10ms max. per unit
• Compact dimensions: 66(W) x 50(H) x 90(D) mm
• Broken wire detection for 1-5V/4-20mA input ranges
• Expandable Up to 120 I/O Points
• Peripheral and RS-232C Ports Standard for Direct Connection to Serial Devices and Programming Tools
• Removable Terminals
• Synchronized Pulse Control Coordinates Input Devices with Control Devices
• Auxiliary 24 VDC Supply (AC Type Only)
• Relay or Transistor Outputs
• Analog I/O Expansion Modules Available
• Temperature Sensor Input Expansion Modules Available
• Real-Time Clock
• 20 kHz High-Speed Counter Input
• Two, 10 kHz Pulse Outputs for Position Control Applications



---

Dimension :




---

Specifications:


Number of analog outputs		1
Output signal range	Voltage output	OV to +10V -10V to +10V
	Current output	4mA to 20mA
Resolution	Voltage output	1/256 (0V to +10V) 1/512 (-10V to +10V)
	Current output	1/256
Accuracy	Voltage output	1.0% max. (full scale)
	Current output	1.0% max. (full scale)
Number of analog inputs		2
Alternate Mfr Part Number		CPM1AMAD01
Brand		Omron Automation
For Use With		Micro Controllers
Input Current		4 to 20 mA A
Input Type		Analog
Manufacturer Part Number		CPM1A-MAD01
Maximum Operating Temperature		55 °C
Minimum Operating Temperature		0 °C
Mounting Type		DIN Rail Mount
Number of Inputs		2 Input
Number of Outputs		1 Output
Output Current		5 mA
Output Type		Analog
Primary Type		Expansion
Series		CPM1A Series
Special Features		Sequences in Which Units in the Above Groups can be Connected to the CPU
Standards		U, C, CE Marked, NL
Supply Current		4 to 20 mA
Supply Voltage		24 Vdc V
Temperature Operating Range		0 to +55 °C
Type		I/O



---
