Details

---

Model :


• ZX230



---

Features :


• Electromagnetic counterweight adopts rubber padding to reduce vibration noise
• Easy installation with small reverse thrust, smooth conveying
• Suitable for conveying medium and large parts



---

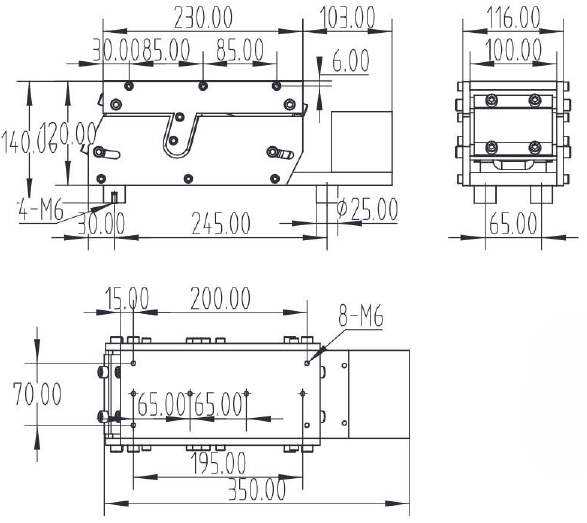

Dimensions :






---

Specifications:


Vol(V)	220
Freq (Hz)	50-150
Ctrl Mode	V/F Adj.
Amp (mm)	0.02-0.15
P (W)	104
Load (Kg)	18
Tray Ø (mm)	800
Temp (°C)	0-40
I (A)	1



---
