Details

---

Model :


• JM100



---

Features :


• Good versatility, can adjust the spring via a voltage caochniterovellesrtatoble conveying.
• Suitable for automatic feeding of small parts, & magnetic precision
• Low noise, stable operation.



---

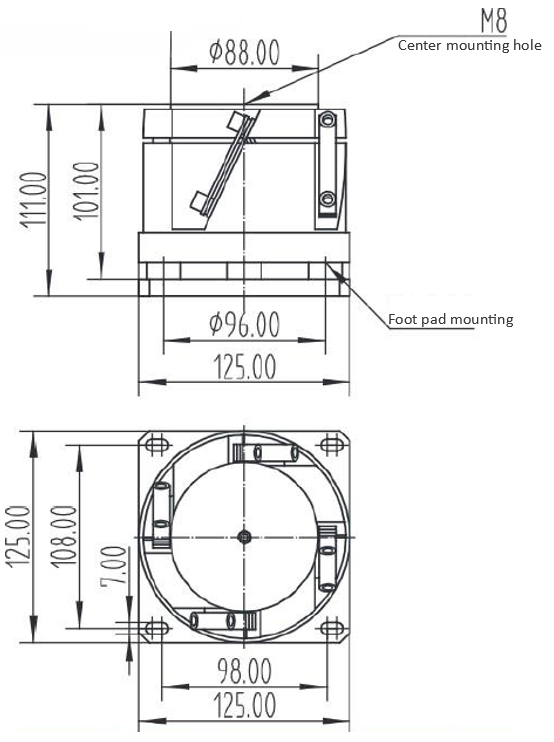

Dimensions :






---

Specifications:



Vol(V)	220
Freq (Hz)	70-180
Ctrl Mode	V/F Adj.
Amp (mm)	0.02-0.1
P (W)	80
Load (Kg)	1.6
Tray Ø (mm)	Ø 150
Temp (°C)	0-40
Fix Method	Ctr Hole
I (A)	1



---
