Details

---

Model :


• DF150



---

Features :

• High Vibration Frequency by using a high vibration frequency, it reduces deviations in material loading uniformity and improves supply capacity.
• No Need for re-adjusting Spring Steel Sheets Once set, the spring sheets do not require adjustment. Speed regulation for different disc bodies can be achieved through frequency and amplitude control.
• Low Noise, High Power The spring angle is 15 degrees, with a wider frequency amplitude range, stronger load capacity, and reduced speed differences between the disc bodies and the base.
• Reduced Ground Reaction Force Design The 15-degree angle and the proportional match between the lower and upper vibrating bodies achieve lower downward rebound force.
• Independent Design and R&D, Unique Structural Performance The product has obtained appearance and utility model patents.



---

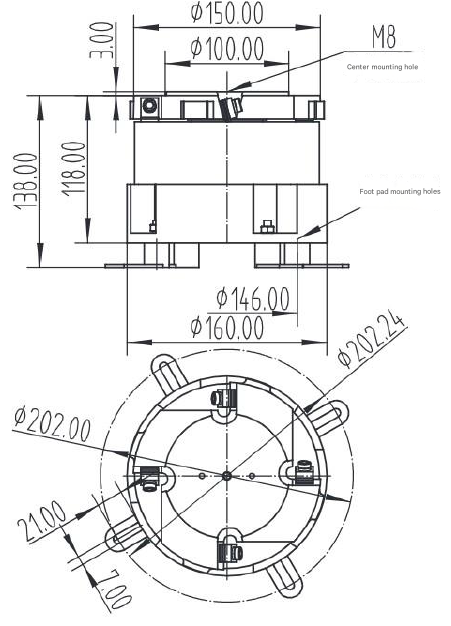

Dimensions :






---

Specifications:



Vol(V)	220
Freq (Hz)	70-180
Ctrl Mode	V/F Adj.
Amp (mm)	0.05-0.1
P (W)	104
Load (Kg)	2.3
Tray Ø (mm)	Ø 370
Temp (°C)	0-40
Fix Method	Ctr Hole
I (A)	1.5



---

​​​​​​​
