Details
Feature :
- Good versatility, suitable for conveying small, medium, and heavy workpieces.
- Stable conveying can be achieved by adjusting the springs through a frequency and voltage

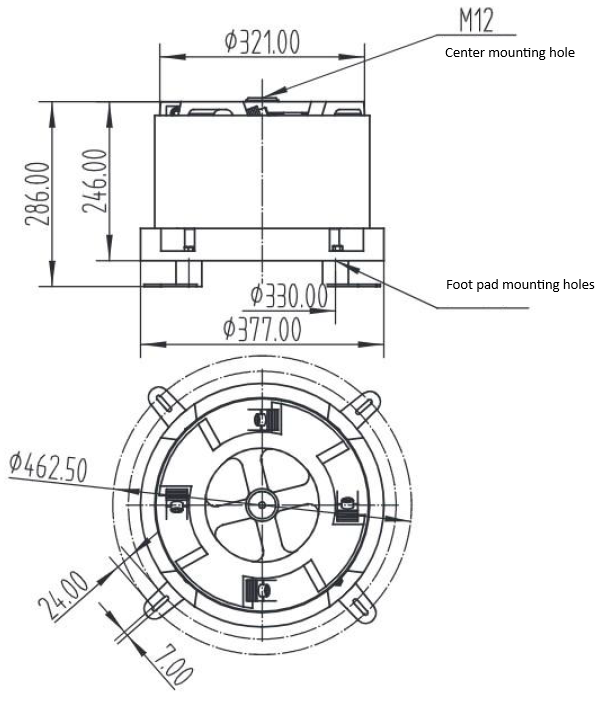

Dimension :
.png)
Specifications :
| Vol(V) | 220 |
| Freq (Hz) | 50-150 |
| Ctrl Mode | V/F Adj. |
| Amp (mm) | 0.1-0.6 |
| P (W) | 810 |
| Load (Kg) | 15 |
| Tray Ø (mm) | Ø 630 |
| Temp (°C) | 0-40 |
| Fix Method | Ctr Hole |
| I (A) | 3.5 |
