Details

---

Feature :


• Good versatility
• Suitable for conveying small, medium, and heavy workpieces.
• Stable conveying can be achieved by adjusting the springs through a frequency and voltage

---

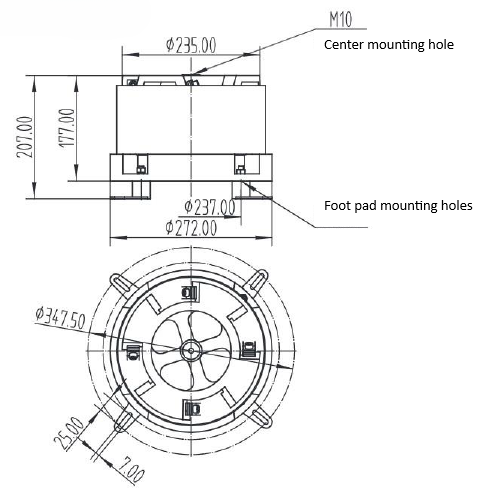

Dimension :






---

Specifications :

Vol(V)	220
Freq (Hz)	50-150
Ctrl Mode	V/F Adj.
Amp (mm)	0.05-0.3
P (W)	430
Load (Kg)	12.5
Tray Ø (mm)	Ø 490
Temp (°C)	0-40
Fix Method	Ctr Hole
I (A)	3



---
