Details

---

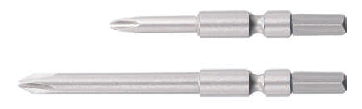

Wear-resistant batch are used in various models based on electric batch, which can correspond to various sizes of wide variety of pneumatic and electric products.


Model :


• SH1/4 (6.35mm) - M0.4~M10, 0~17N.m



• SH1/4 (6.35mm) - M1.6~M6, 0~4.5N.m



• Half-moon (Tail) (Ø 4mm) - M0.4~M2.5, 0~1.2N.m



---

Features :






---

Dimension :

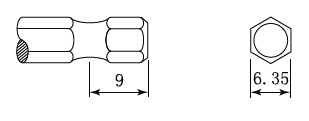

• SH1/4 (6.35mm) - M0.4~M10, 0~17N.m

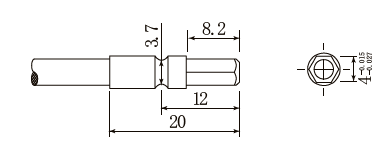

• SH1/4 (6.35mm) - M1.6~M6, 0~4.5N.m

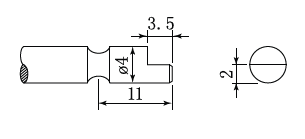

• Half-moon (Tail) (Ø 4mm) - M0.4~M2.5, 0~1.2N.m




---


Advantages :


• SH1/4 (6.35mm) - M0.4~M10, 0~17N.m
  • High versatility, more used for torque is relatively large electrical batch, air batch and screwdiameter is relatively large occasions.


• SH1/4 (6.35mm) - M1.6~M6, 0~4.5N.m
  • High versatility, more used for torque is relatively ​​​large electrical batch, air batch and screw diameter is relatively large occasions.
  • High degree of bite, not easy to swing, good stability, easy to disassemble.
  • It is suitable for high-frequency tightening (such as tightening more than 5000 times per day).


• Half-moon (Tail) (Ø 4mm) - M0.4~M2.5, 0~1.2N.m
  • When using a hand-held screwdriver, it has small beating and easy control. When using an airborne screwdriver, it is convenient to load and unload nails

---

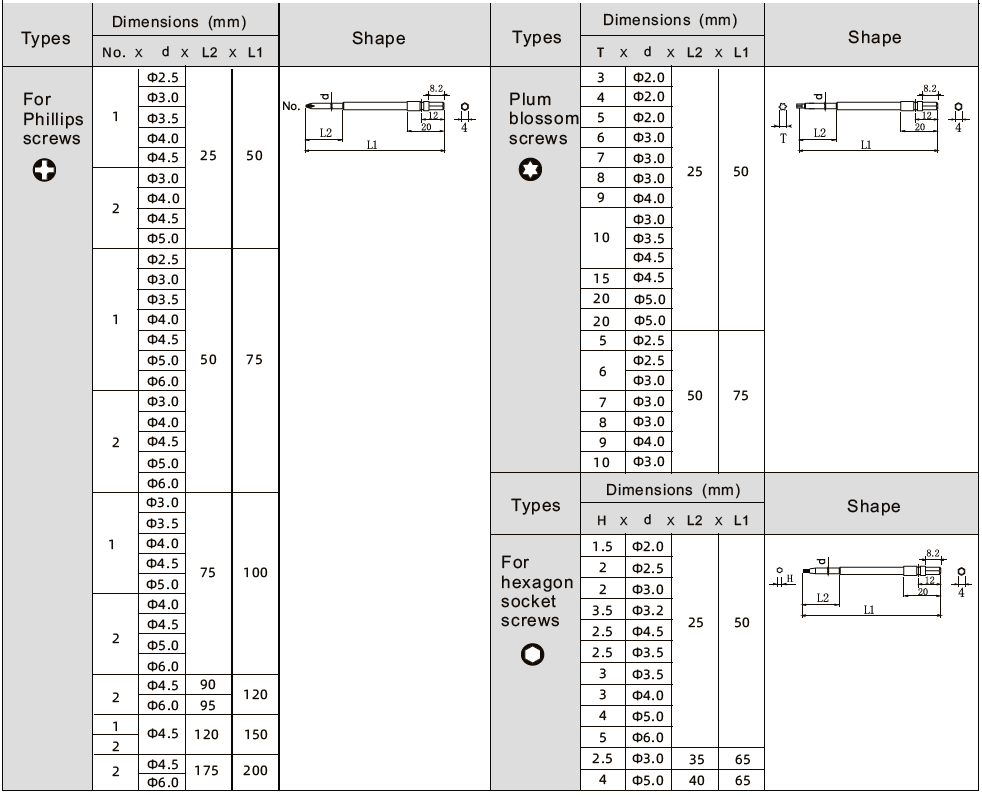

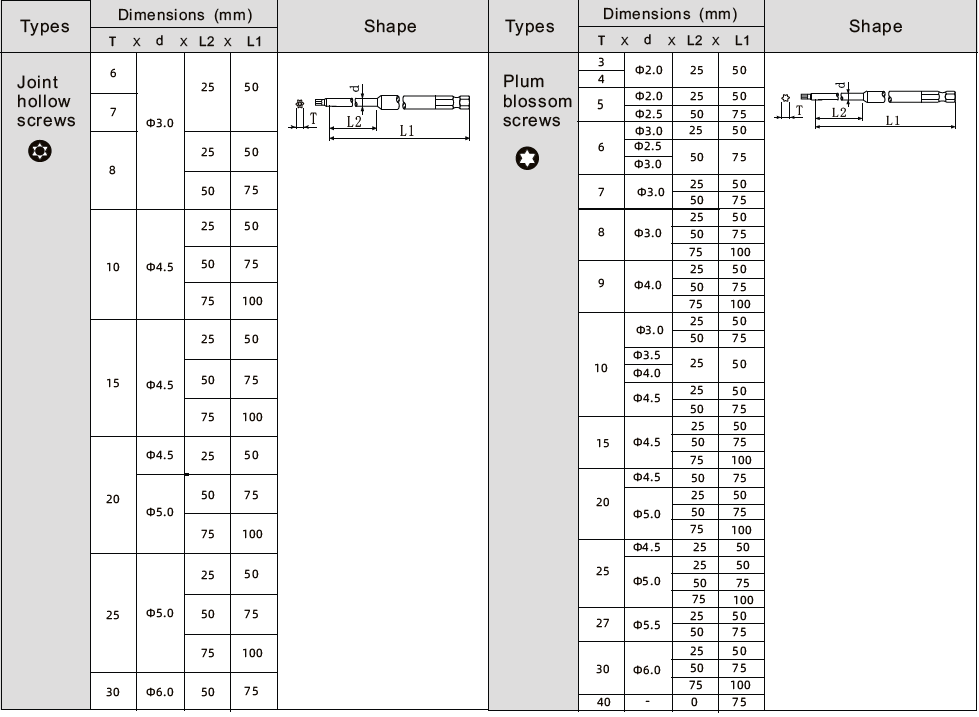

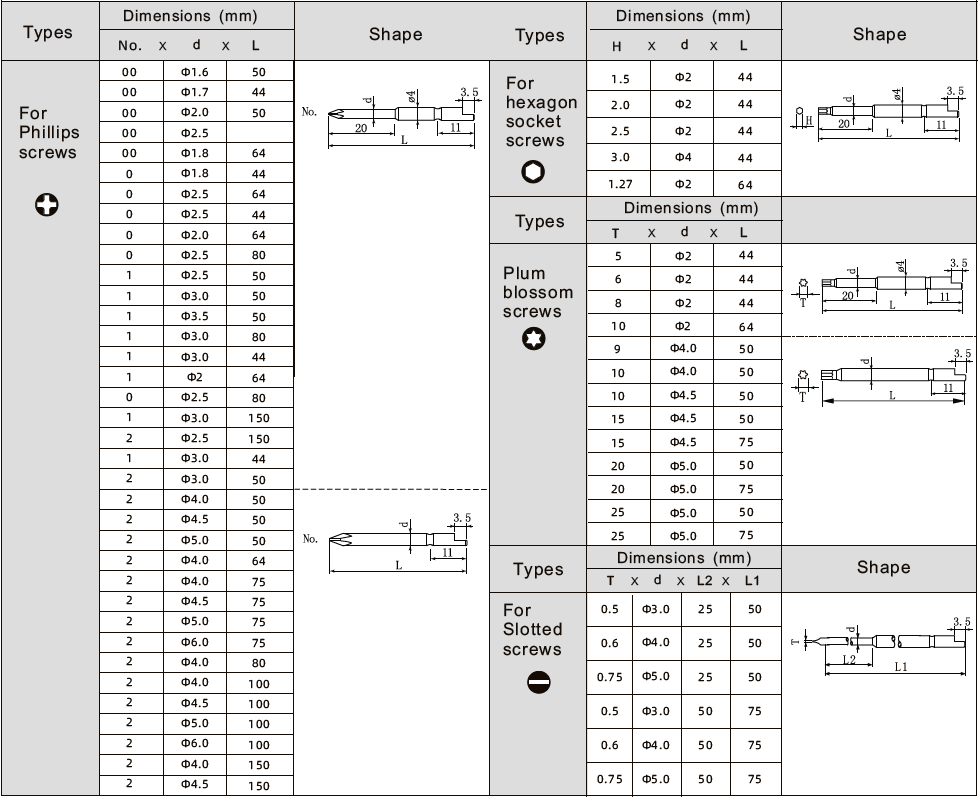

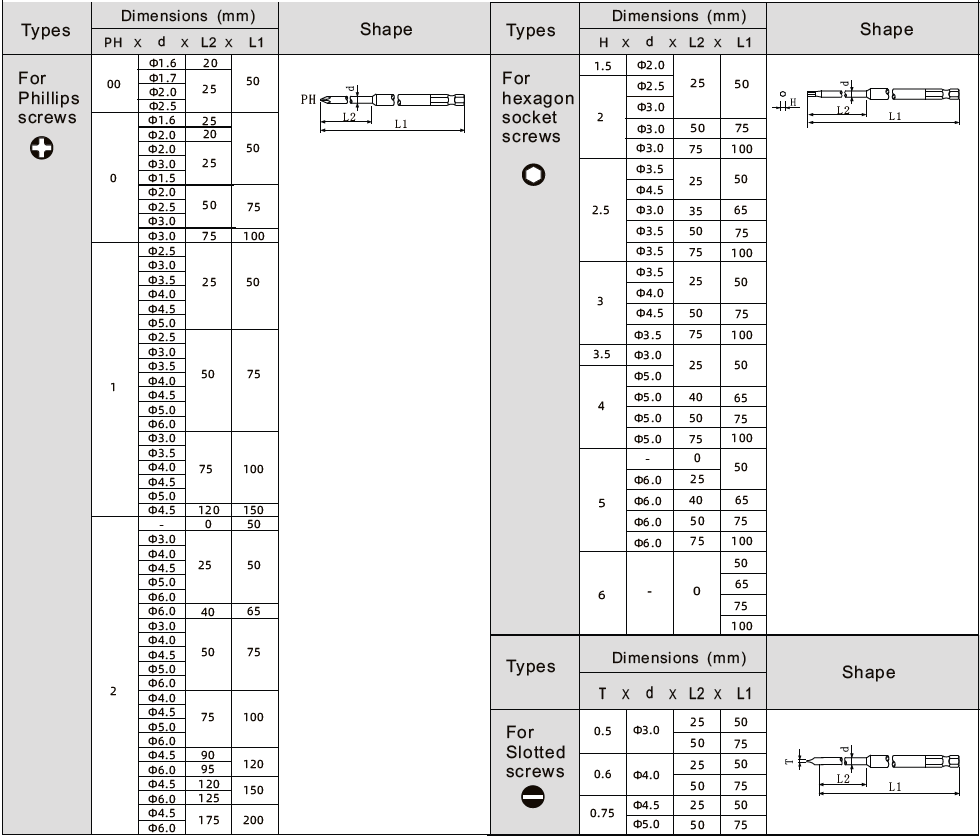

Specifications :

• SH1/4 (6.35mm) - M0.4~M10, 0~17N.m



• SH1/4 (6.35mm) - M1.6~M6, 0~4.5N.m



• Half-moon (Tail) (Ø 4mm) - M0.4~M2.5, 0~1.2N.m



---
