Details
Model :
- QTW178 Series
Features :
- Maximum Stroke : 5000 mm
- Maximum Speed : 8330 mm/s 90 mm
- Gearbox Number : 90 mm
- Linear Guide : 20X15.5-2
- Gear Specification : 2 M

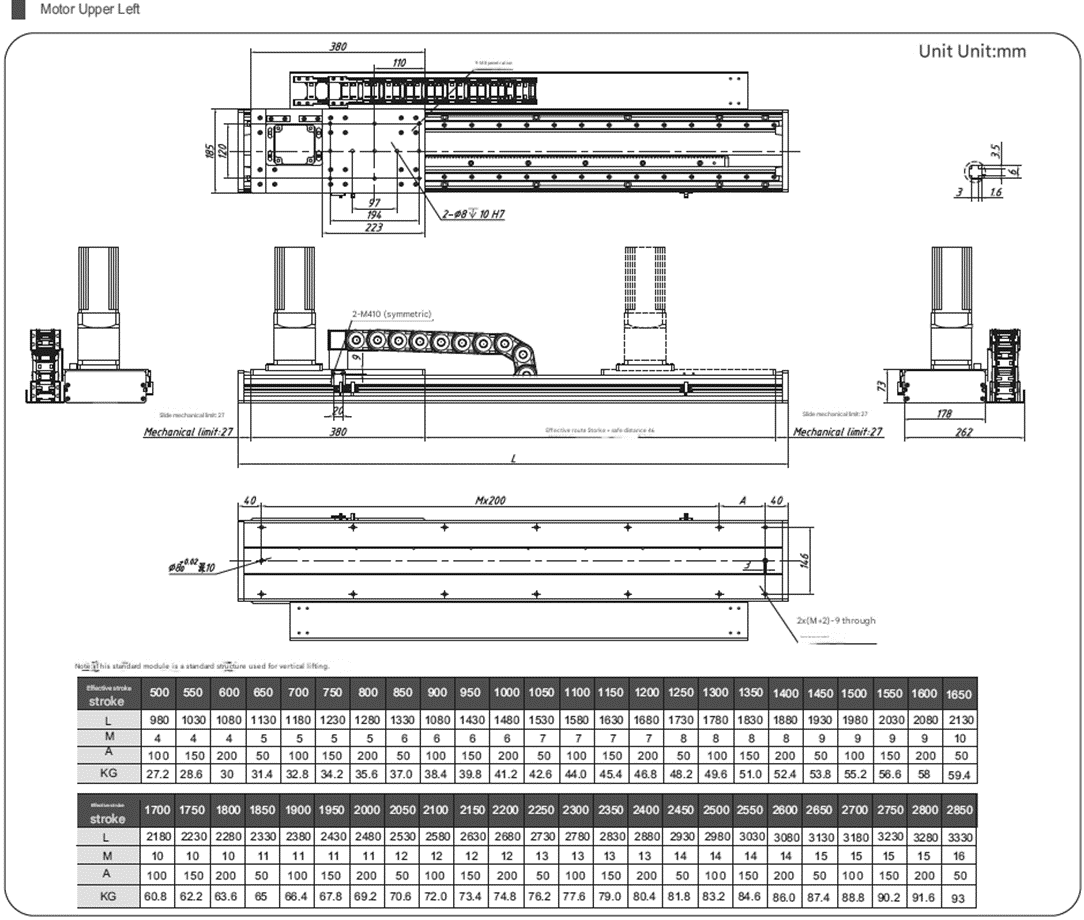

Dimension :
.png)

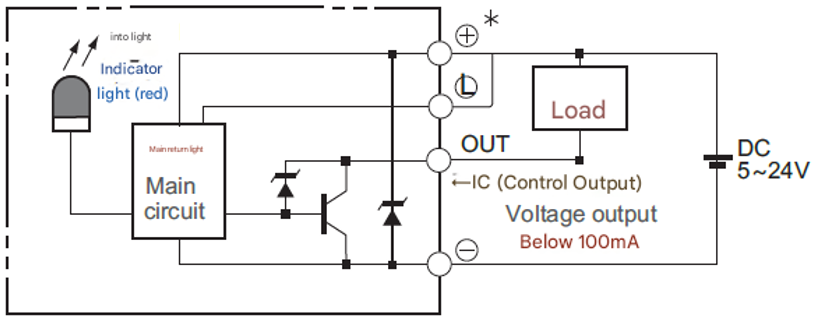

Sensor layout :
.png)
Specifications :
| Capabilities | Repeatability (mm) | ±0.1 | |
| Gear Lead (mm) | 166.6mm | ||
| Load (kg) | 120 | ||
| Stroke Pitch (mm) | 500-5000mm / 50mm pitch | ||
| Parts | Gearbox Number (mm) | 90 | |
| Gear Specification (M) | 2M | ||
| High Rigidity Linear Guide (mm) | 20X15.5 | ||
| Home Sensor | Outside | EE-SX672 (NPN) | |
| Build-in | EE-SX674 (NPN) | ||
