Details

---

Model :


• QCB14 Series



---

Features :


• Maximum Stroke : 3050 mm
• Maximum Speed : 2000 mm/s
• Motor Output : 400 W
• Linear Guide : 15X12.5-2
• Ball Screw : 22 mm

---

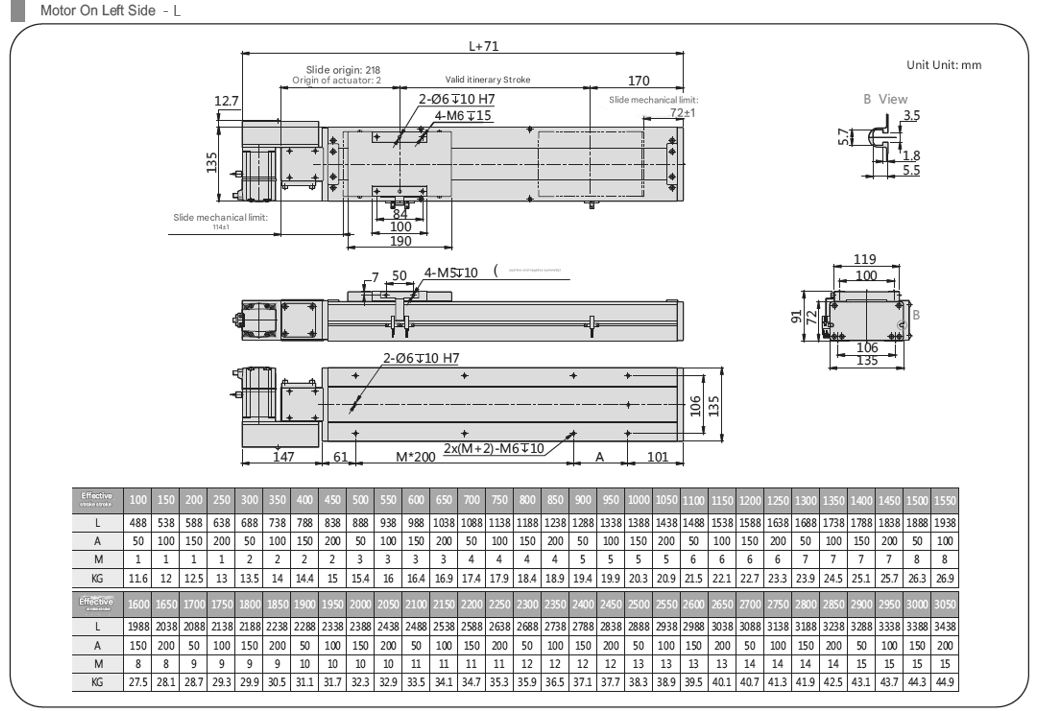

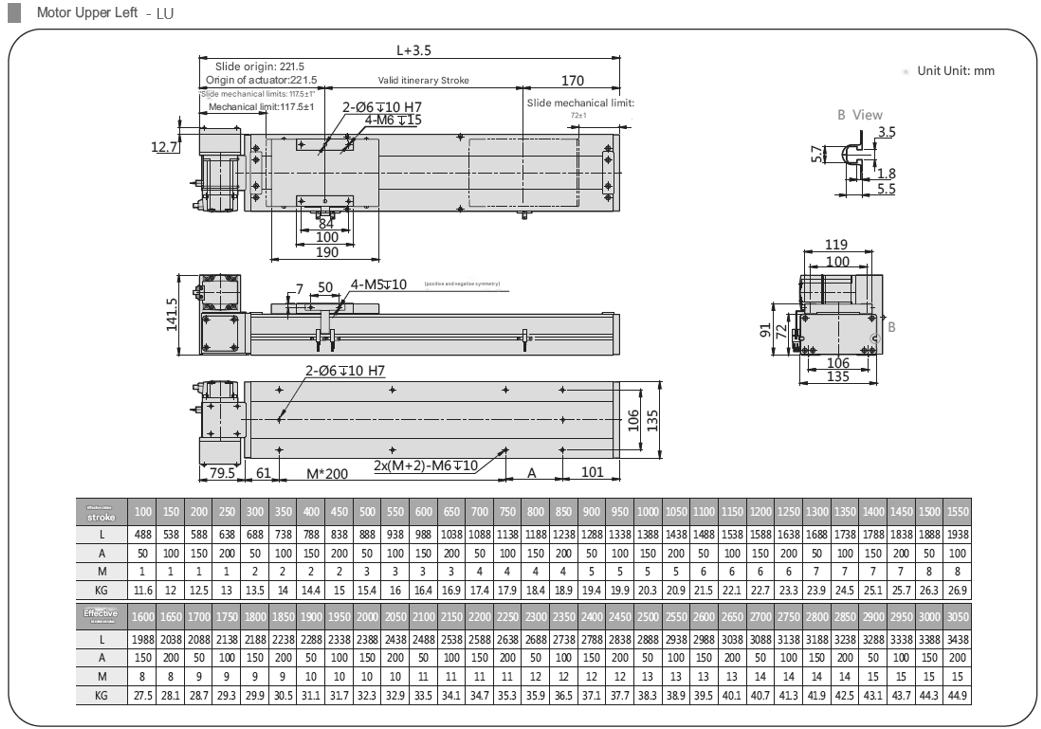

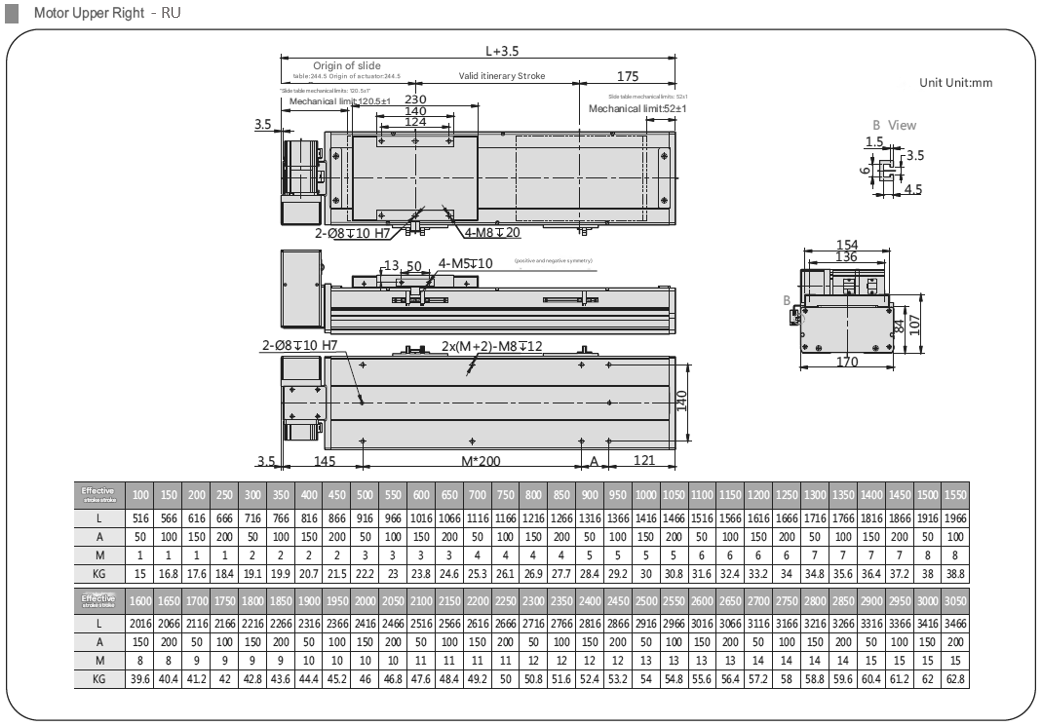

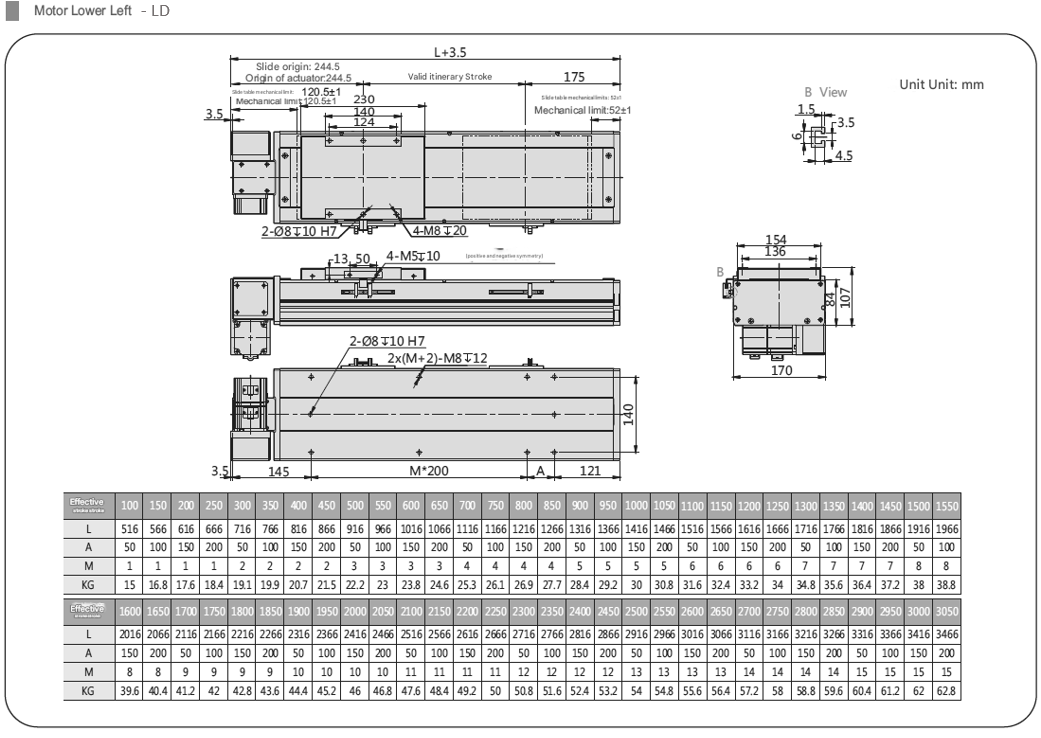

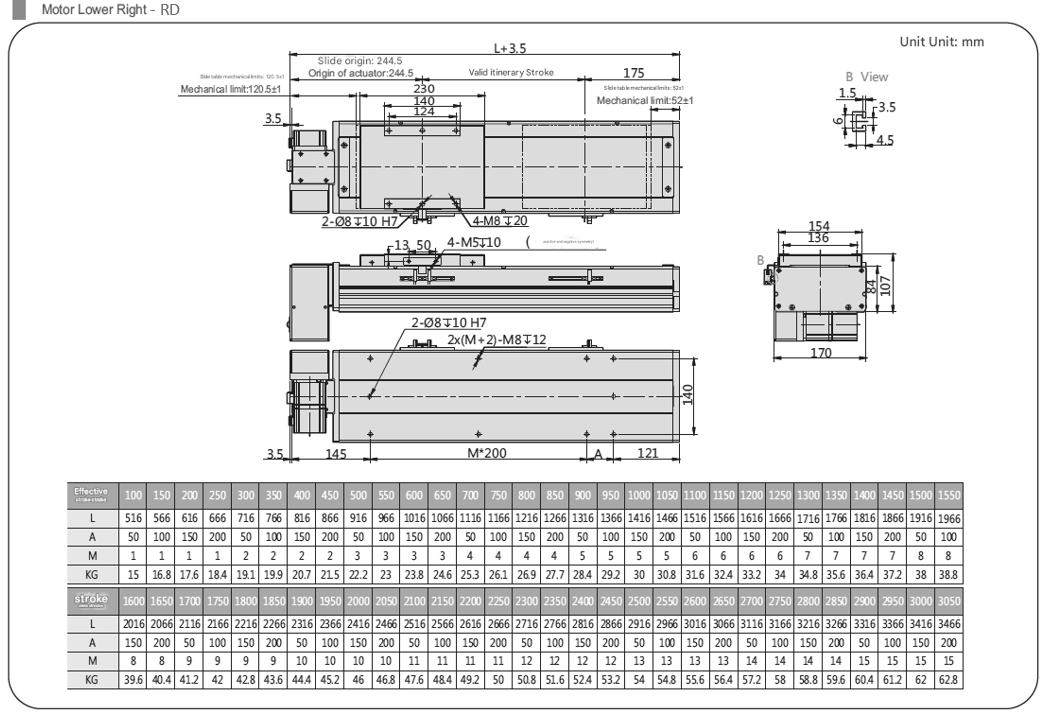

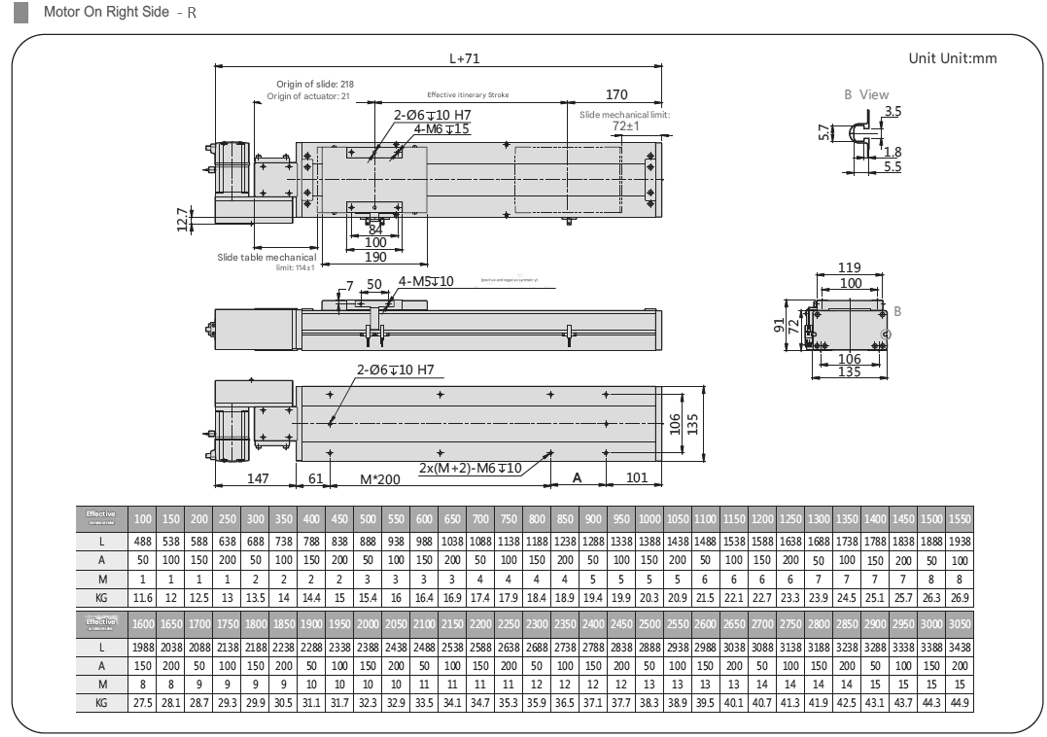

Dimension :





















---

Sensor layout :





---

Specifications :



Capability	Position repeatability (mm)		±0.04
	Screw lead (mm)		40
	Maximum Speed ​​(mm/s)		2000
	Maximum Payload	Horizontal (kg)	25
		Vertical (kg)	-
	Rated Thrust (N)		100
	Standard Stroke/Pitch (mm)		100-3050mm/50 interval 50mm pitch
Parts	AC Servo Motor Output (W)		200
	Belt Width (mm)		25
	High Rigidity Linear Guide (mm)		15 × 12.5
	Coupling (mm)		12 × 14
	Home Sensor	Outside	EE-SX672 (NPN)
		Built in	EE-SX674 (NPN)



---
