Details

---

Model :


• GTHS12 Series



---

Features :


• Maximum Stroke : 1250mm
• Maximum Speed : 1600mm/s
• Ball Screw : Ø16mm
• Motor Output : 400 W



---

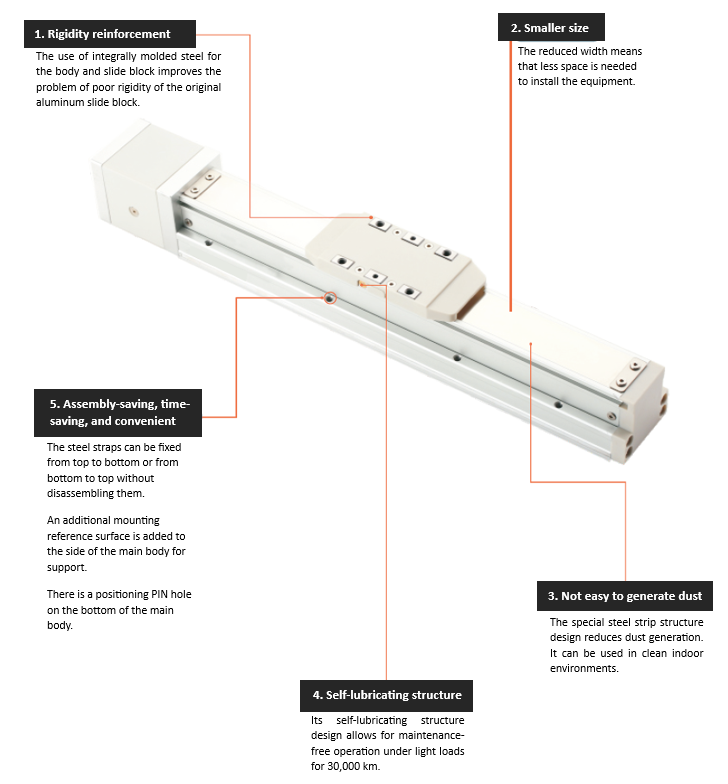

Structure :


• Internal structure :



• Self-lubricating structure





---

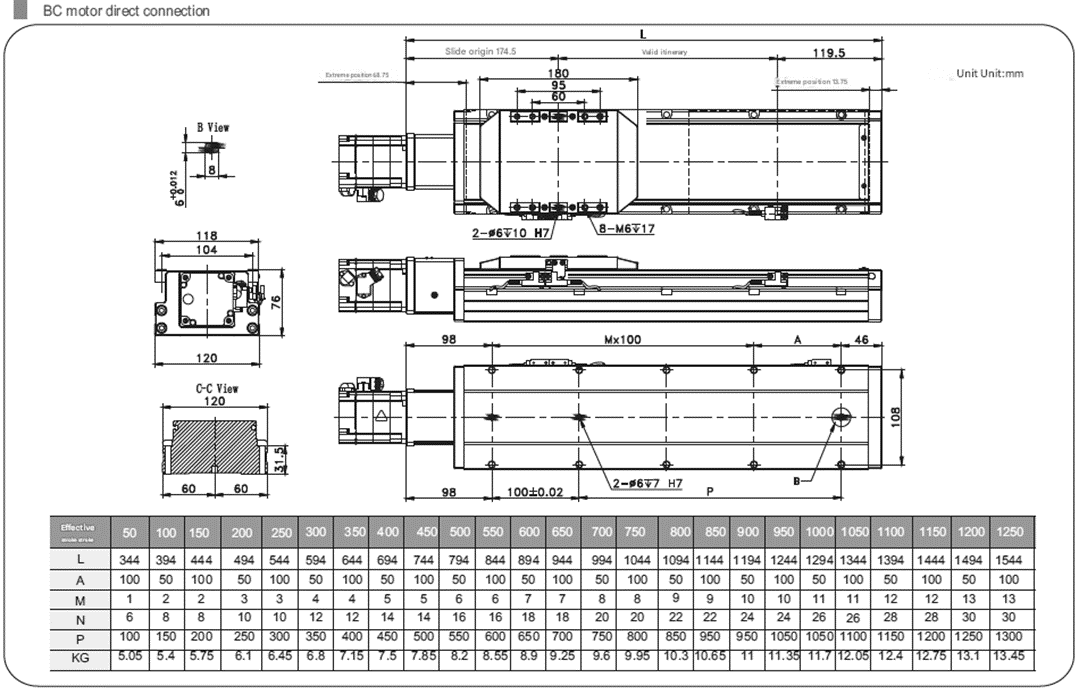

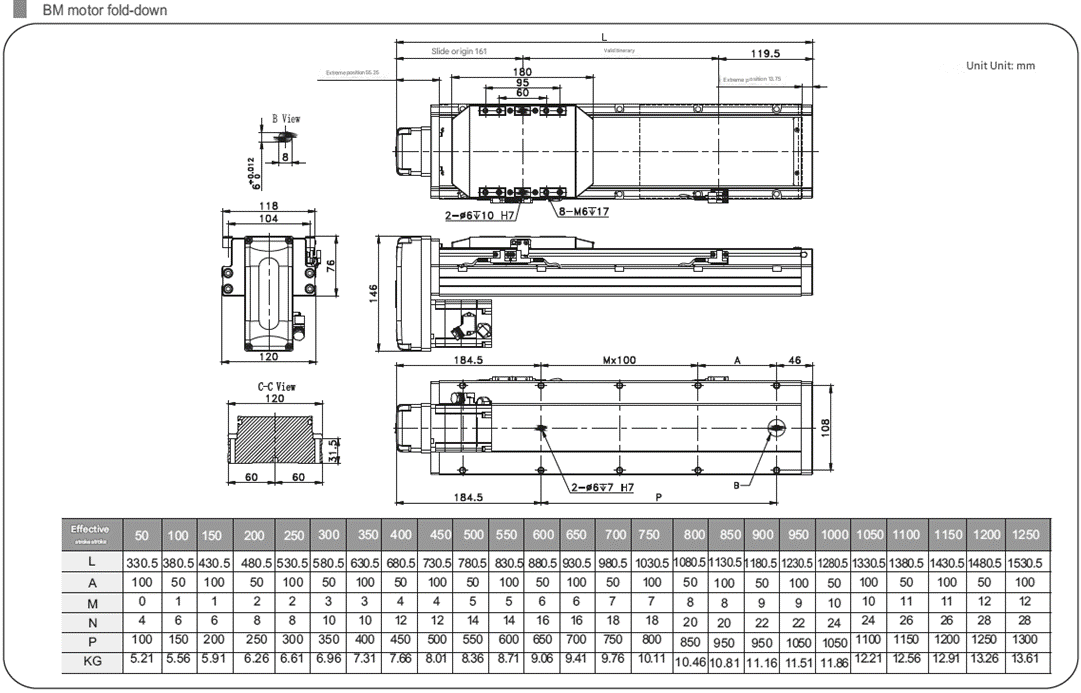

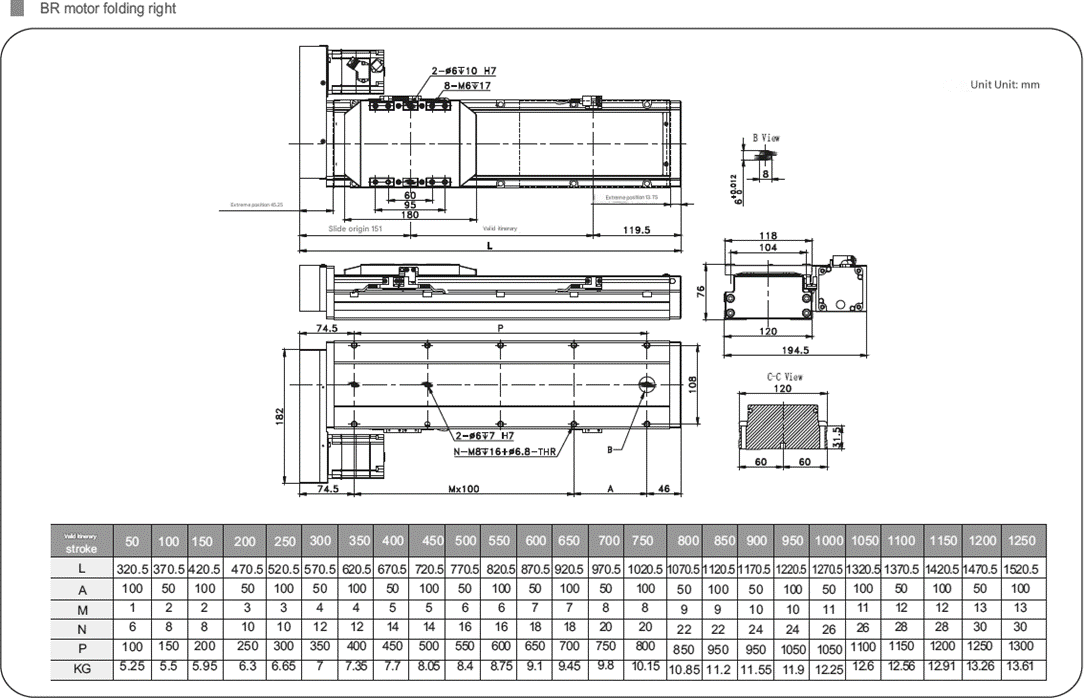

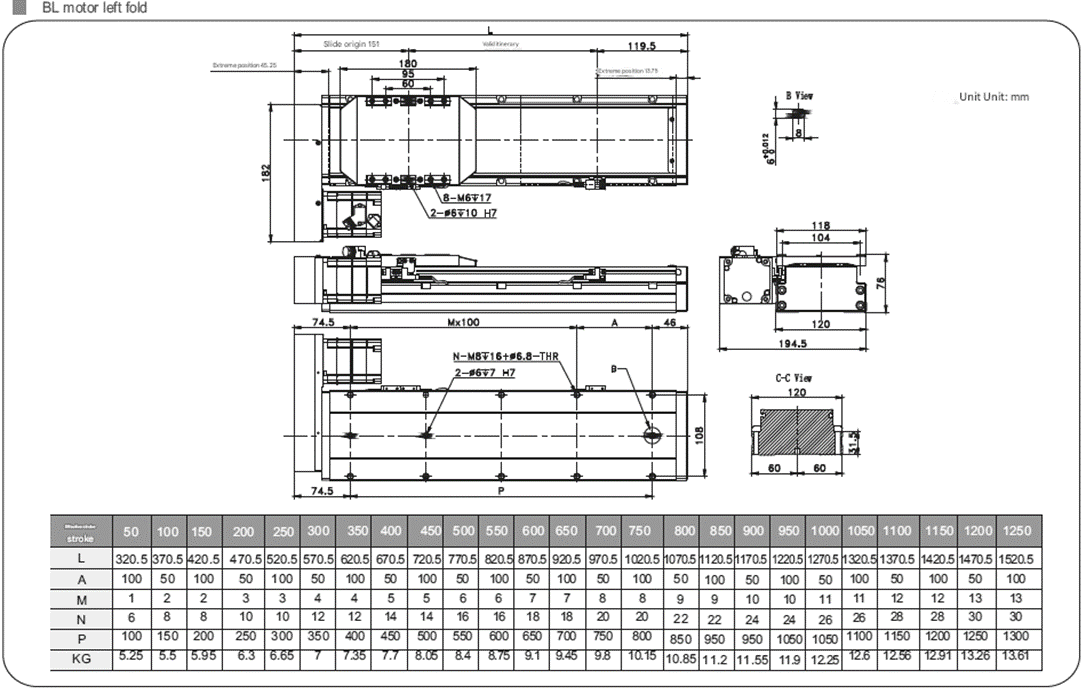

Dimension :
















---

Sensor layout :





---

Specifications :



Specification	Position repeatability (mm)		±0.01
	Screw lead (mm)		5	10	20	32
	Maximum Speed ​​(mm/s) ※1		250	500	1000	1600
	Maximum Payload	Horizontal use of Horizontal (kg)	110	88	40	30
		Vertical (kg)	33	22	10	8
	Rated Thrust (N)		1388	694	347	218
	Standard Stroke/Pitch (mm)※2		50-1250mm/50mm pitch
Parts	AC Servo Motor Output (W)		400
	Ball screw outer diameter (mm)		C7 Ø 16
	High Rigidity Linear Guide (mm)		10 × 14
	Home Sensor	Outside	EE-SX674(NPN)



---
