Details

---

Model :


• GTHS5 Series

---

Features :


• Maximum Stroke : 800mm
• Maximum Speed : 1000mm/s
• Ball Screw : Ø12mm
• Motor Output : 100W

---

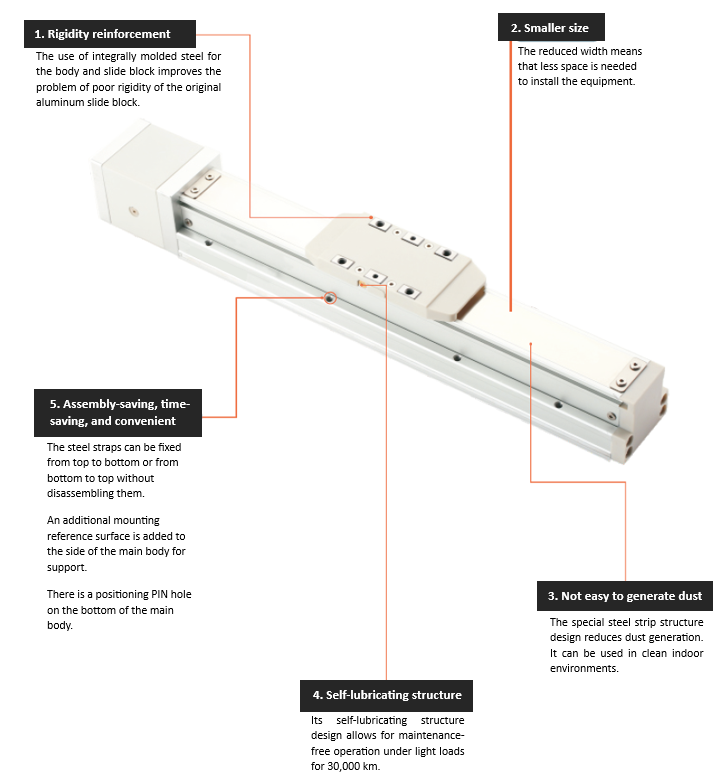

Structure :


• Internal structure :



• Self-lubricating structure






---

Dimension :















---

Sensor layout :





---

Specifications :



Specification	Position repeatability (mm)		±0.01
	Screw lead (mm)		2	5	10	20
	Maximum Speed ​​(mm/s) ※1		100	250	500	1000
	Maximum Payload	Horizontal use of Horizontal (kg)	30	30	15	10
		Vertical (kg)	10	10	5	2.5
	Rated Thrust (N)		854	341	170	85
	Standard Stroke/Pitch (mm)※2		50-800mm/50mm pitch
Parts	AC Servo Motor Output (W)		100
	Ball screw outer diameter (mm)		C7 Ø 12
	High Rigidity Linear Guide (mm)		7X8
	Home Sensor	Outside	EE-SX674(NPN)



---
