Details

---

Model :


• QTB21 Series



---

Features :


• Maximum Stroke : 4050 mm
• Maximum Speed : 2000 mm/s
• Motor Output : 750 W
• Linear Guide : 23X18-2
• Ball Width : 50 mm



---

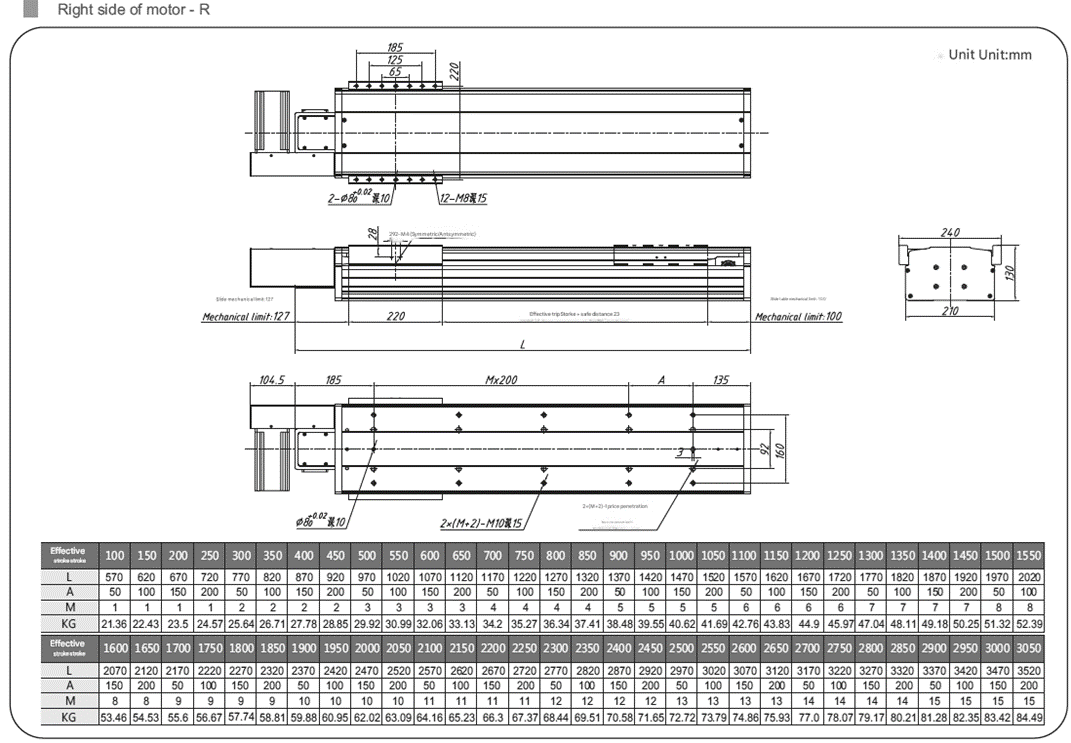

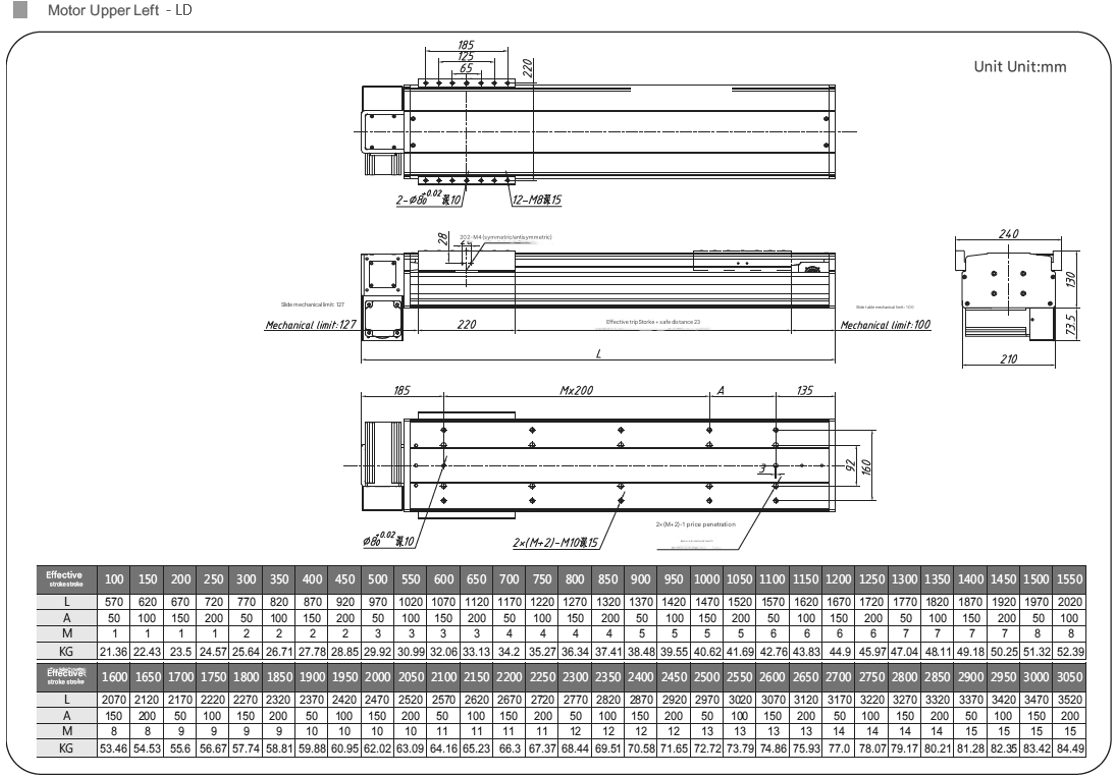

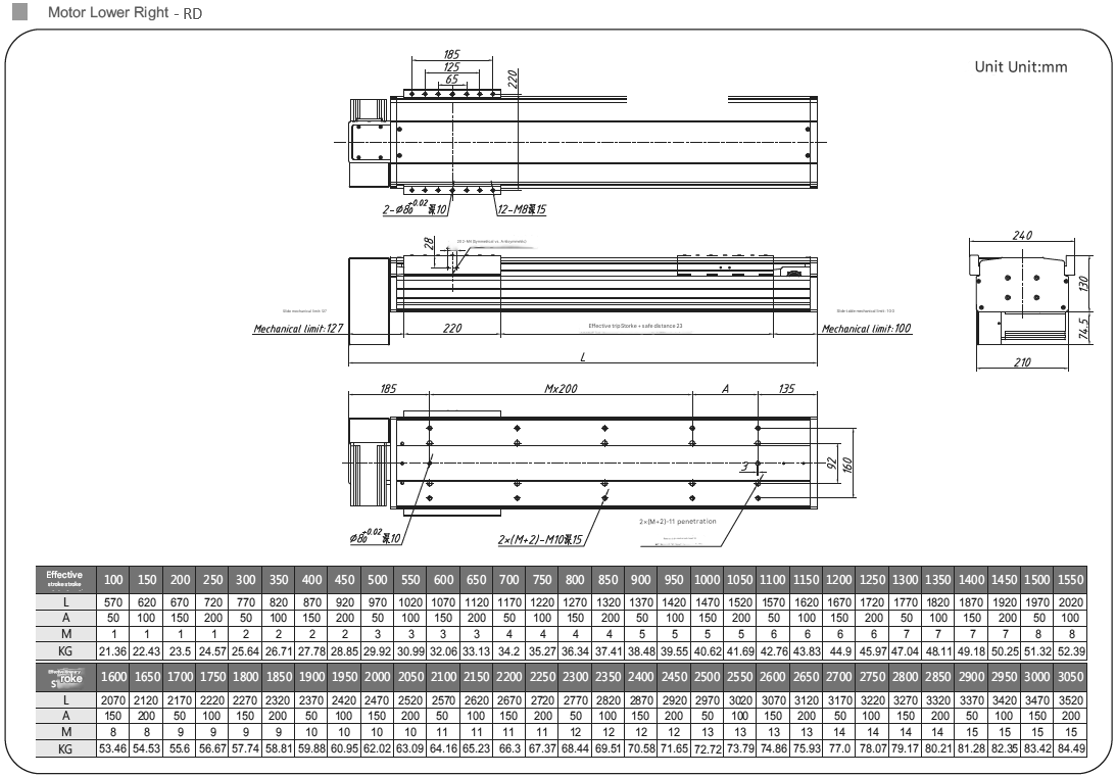

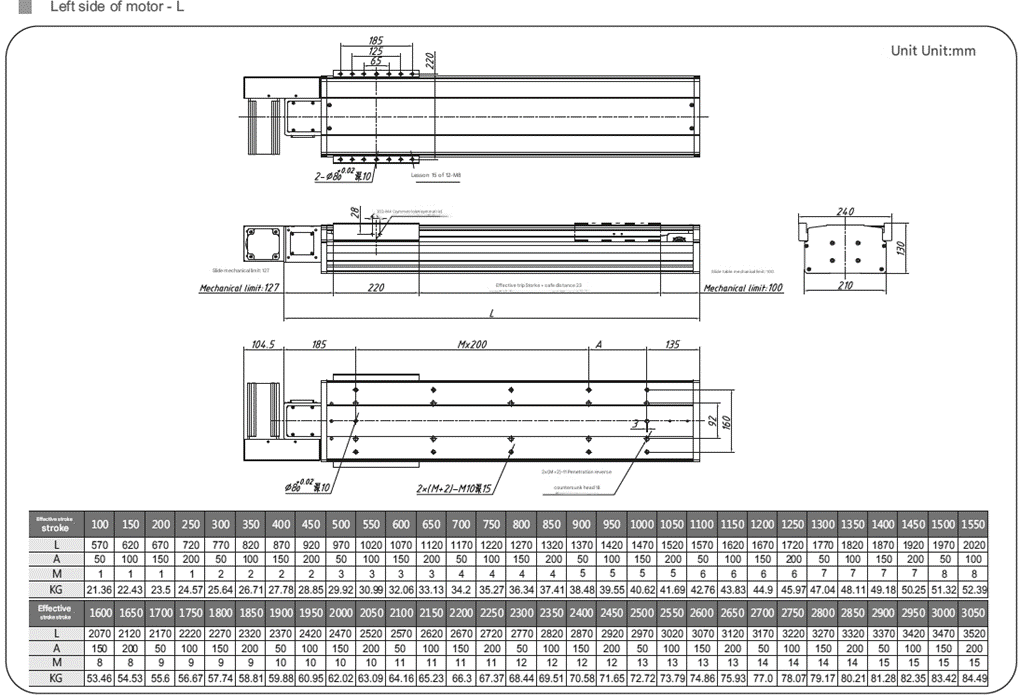

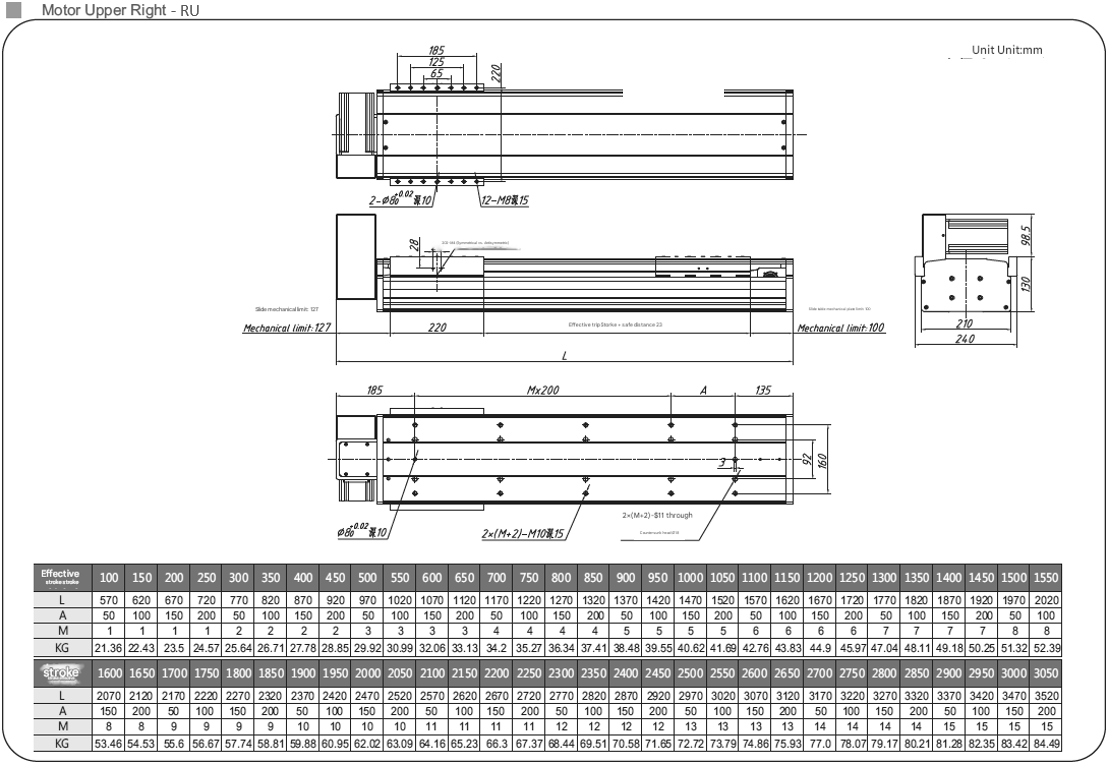

Dimension :






















---

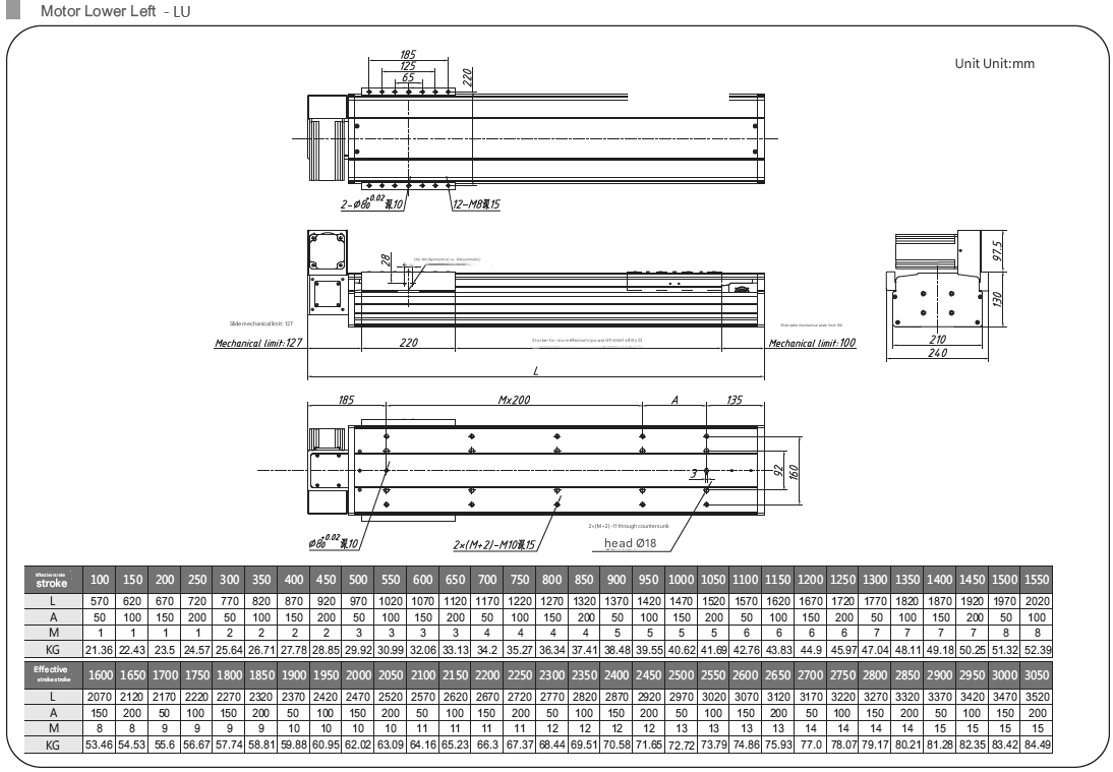

Sensor layout :






---

Specifications :



Performance Capability	Position repeatability (mm)		±0.04
	Screw lead (mm)		40
	Maximum Speed ​​(mm/s)		2000
	Maximum Payload	Horizontal use of Horizontal (kg)	85
		Vertical (kg)	-
	Rated Thrust (N)		387
	Standard Stroke Pitch (mm)		100-4050mm/50 interval 50mm pitch
Parts	AC Servo Motor Output (W)		750 W
	Belt Width (mm)		50
	High Rigidity Linear Guide (mm)		23 × 18

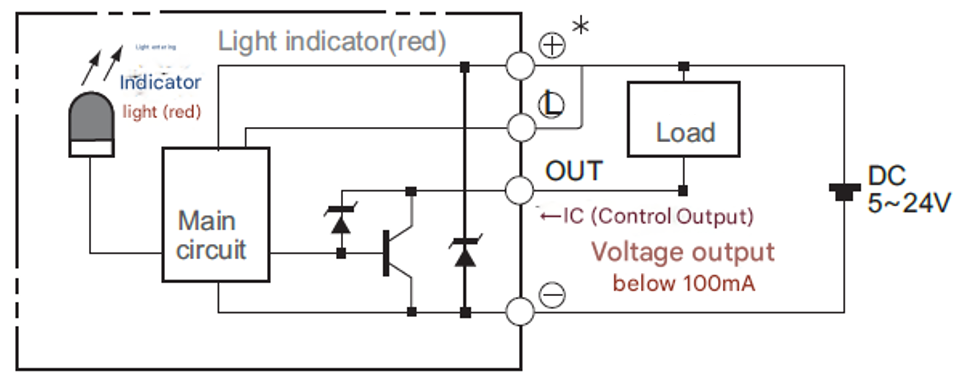

	Home Sensor	Outside	EE-SX672 (NPN)

---
