Details
Model :
- QTB14 Series
Features :
- Maximum Stroke : 3050 mm
- Maximum Speed : 2000 mm/s
- Motor Output : 400 W
- Linear Guide : 15X12.5-2
- Belt Width : 25 mm

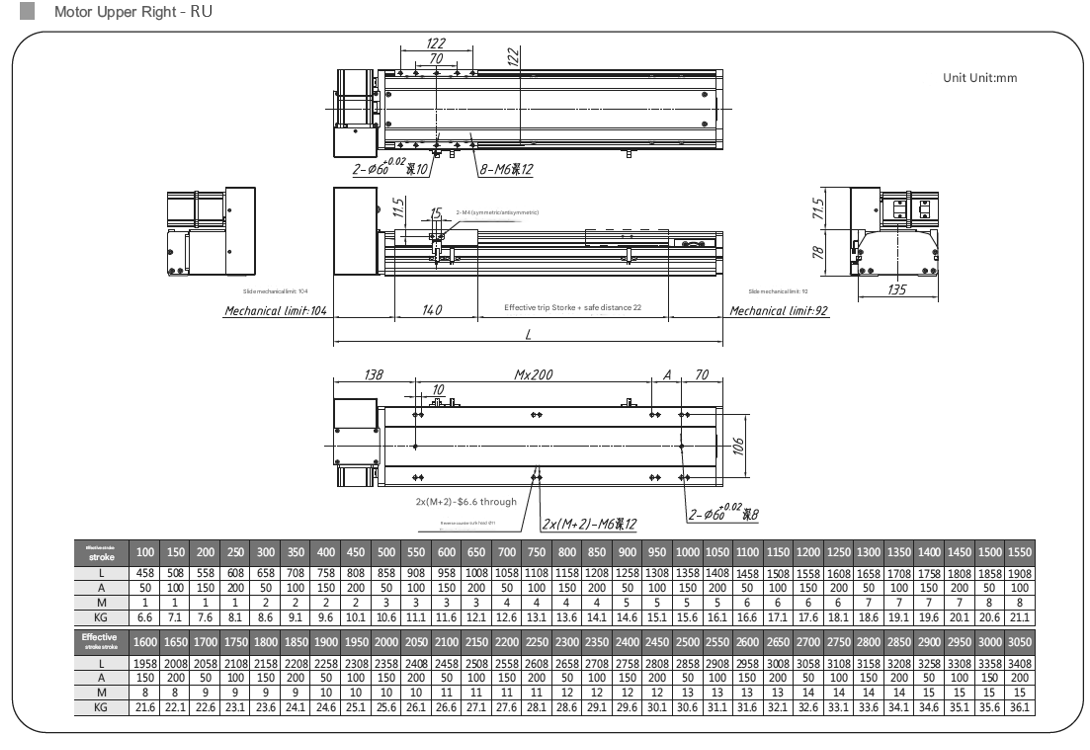

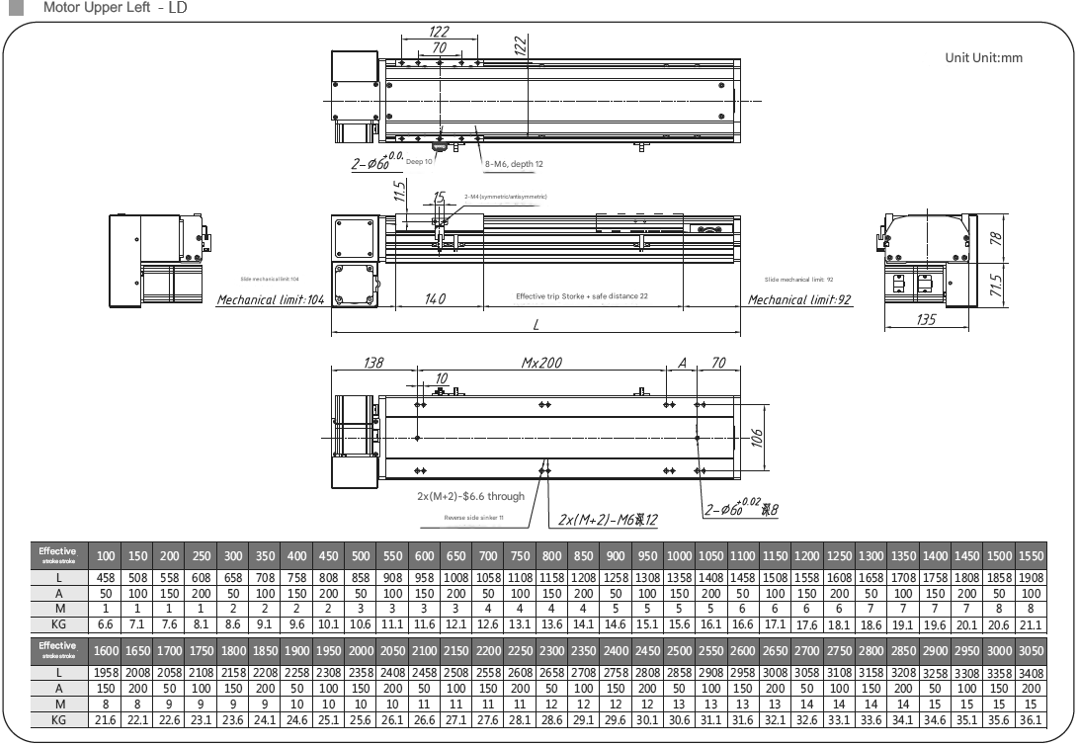

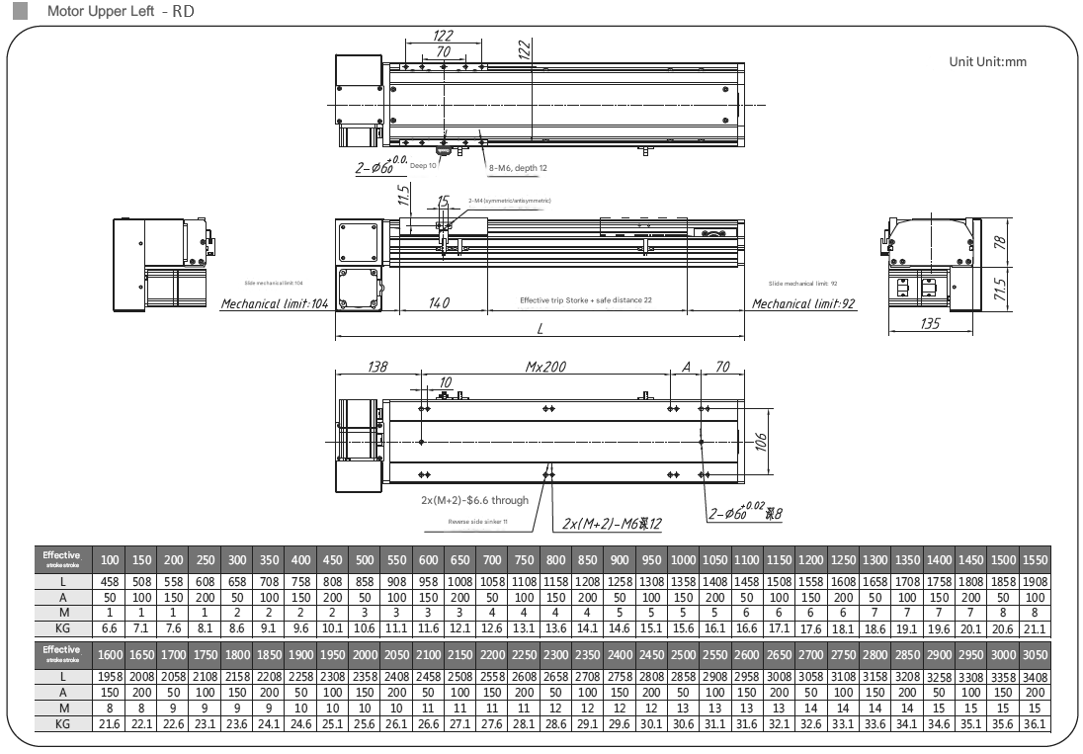

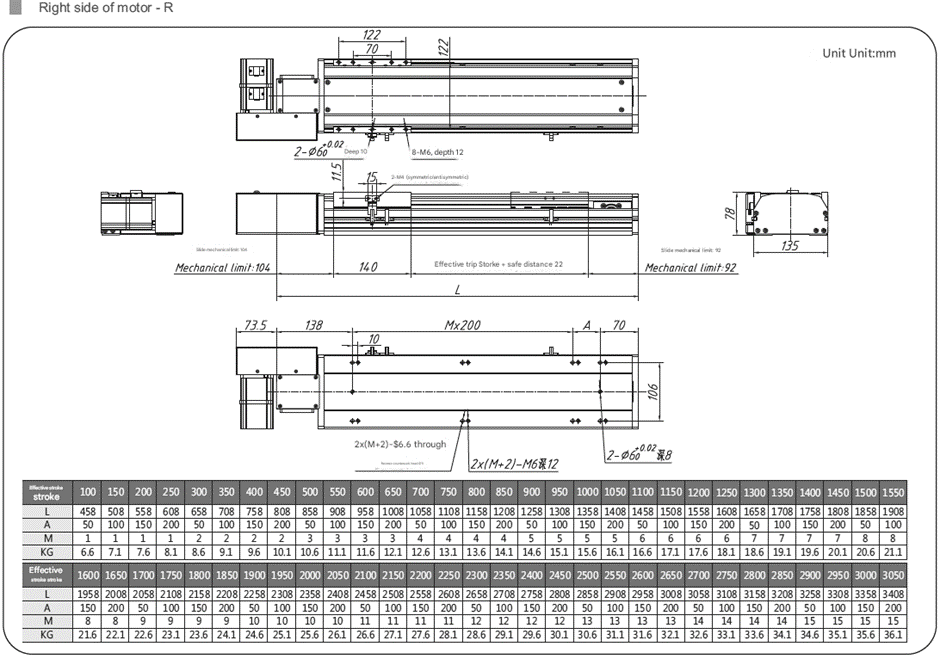

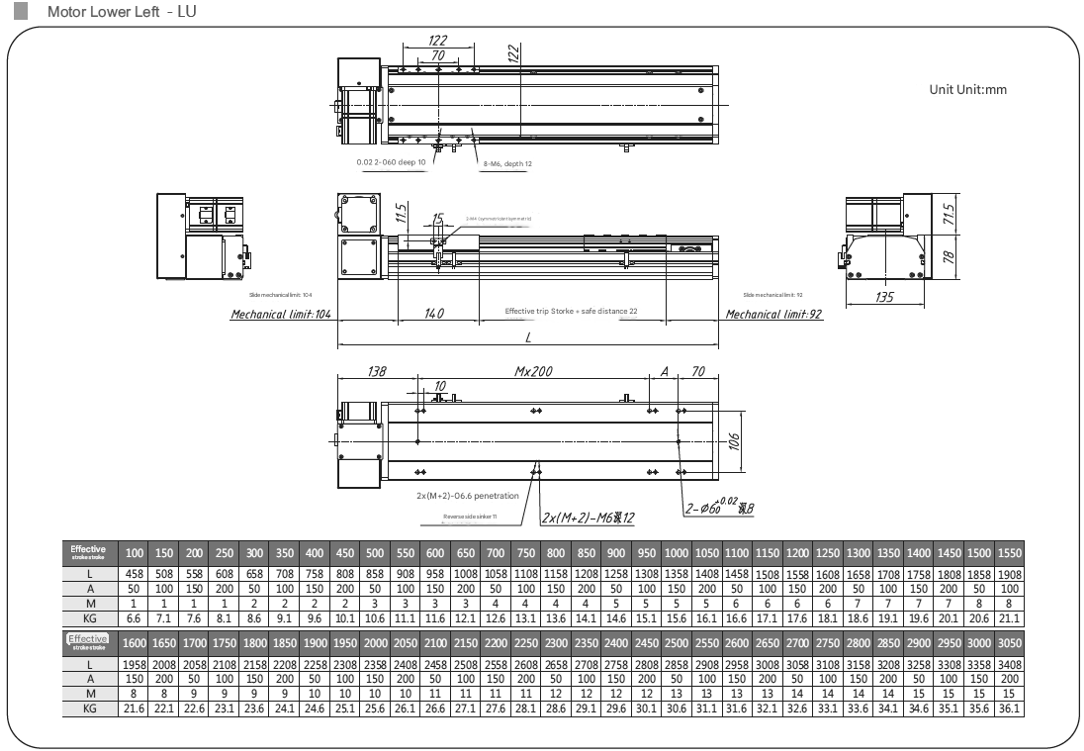

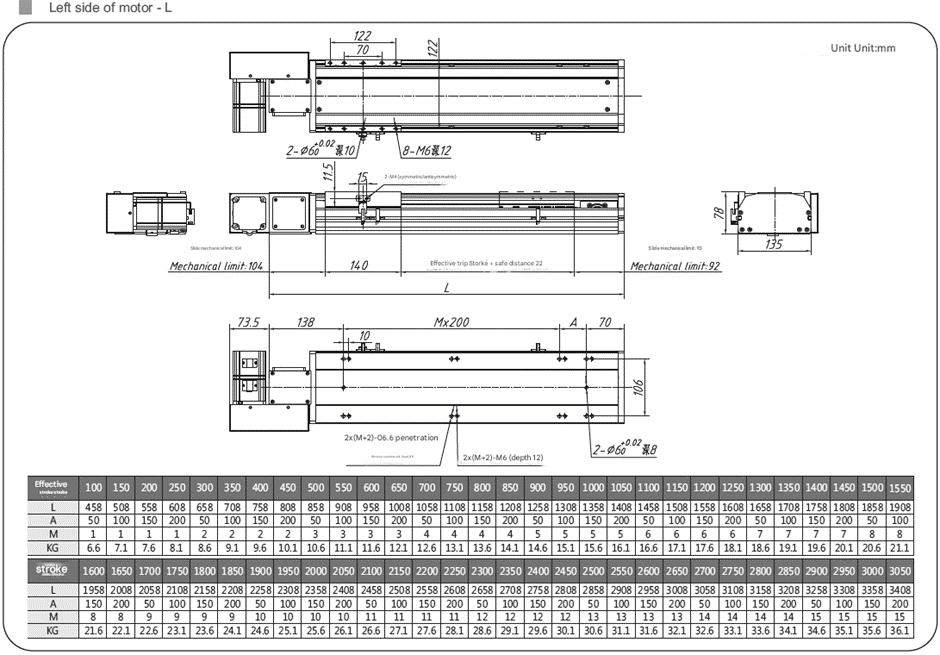

Dimension :
.png)
.png)
.png)
.png)
.png)
.png)

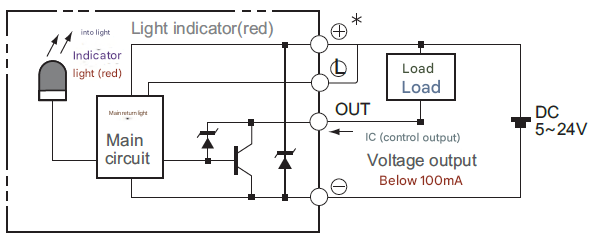

Sensor layout :
.png){kind=spacer}
Specifications :
| Performance Capability | Position repeatability (mm) | ±0.04 | |
| Screw lead (mm) | 40 | ||
| Maximum Speed (mm/s) | 2000 | ||
| Maximum Payload | Horizontal use of Horizontal (kg) | 25 | |
| Vertical (kg) | - | ||
| Rated Thrust (N) | 200 | ||
| Standard Stroke Pitch (mm) | 100-3050mm/50 interval 50mm pitch | ||
| Parts | AC Servo Motor Output (W) | 400W | |
| Belt Width (mm) | 25 | ||
| High Rigidity Linear Guide (mm) | 15X12.5 | ||
| Home Sensor | Outside | EE-SX672 (NPN) | |
View more about Universal Linear Manipulator QTB14 Series on main site
